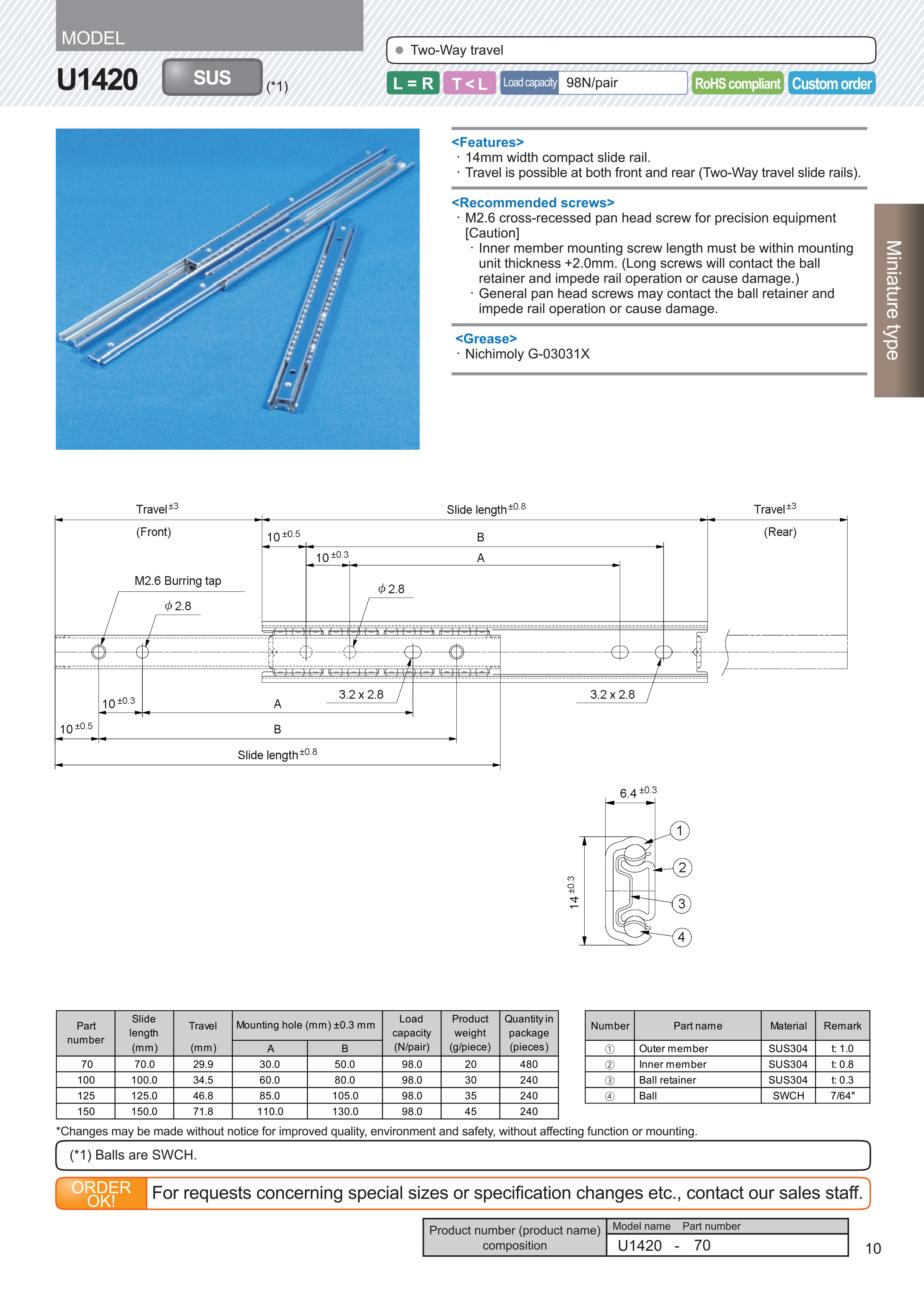

U1420

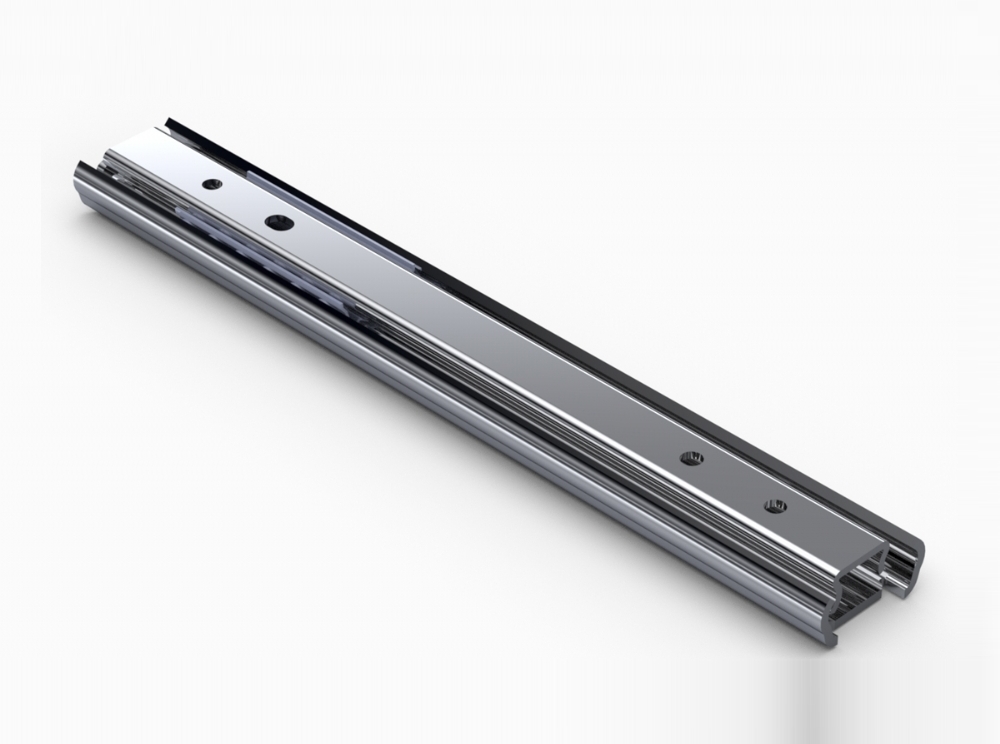

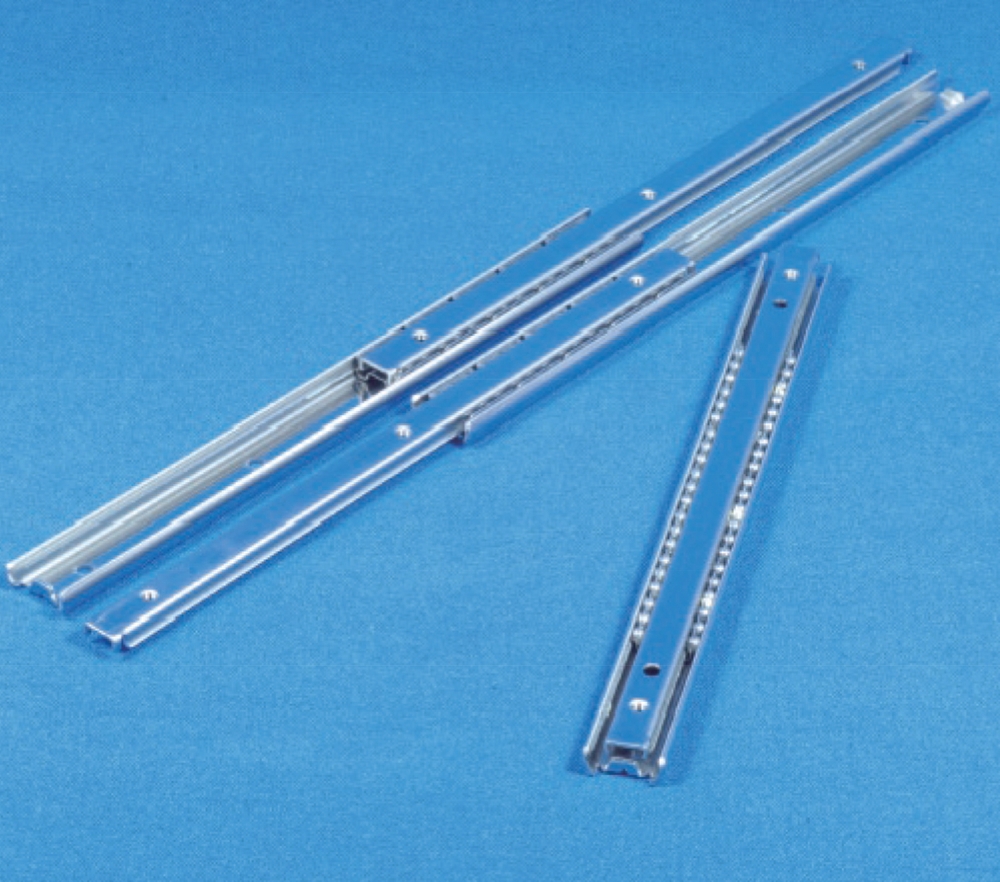

SUS 不銹鋼迷你雙向行程滾珠滑軌
滑軌長度：70~150mm
滑軌荷重：10kg
14mm寬微型精密滾珠滑軌，符合小安裝空間需求
- 滑軌長度：70~150mm
- 滑軌荷重：10kg
- 14mm寬微型精密滾珠滑軌，符合小安裝空間需求

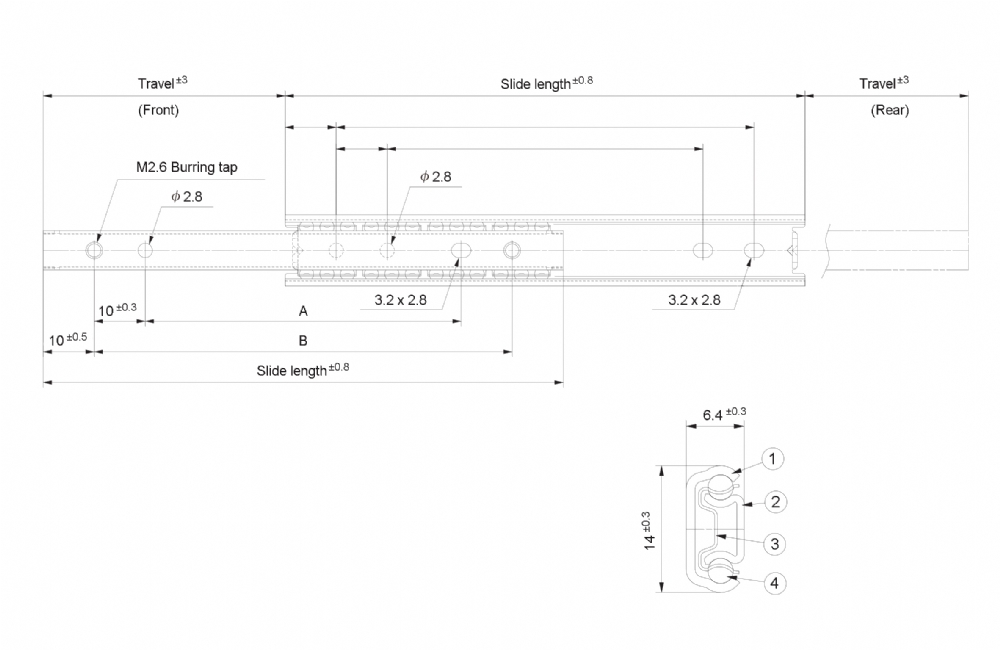

| Part number |
Slide length |
Travel | Mounting hole (mm) ±0.3 mm | Load capacity (N/pair) |
Product weight (g/piece) |
Quantity in package (pieces) |
|
| (mm) | (mm) | A | B | ||||
| 70A | 70.0 | 17.2 | 30.0 | 50.0 | 98.0 | 20 | 480 |
| 100A | 100.0 | 21.8 | 60.0 | 80.0 | 98.0 | 30 | 240 |
| 125A | 125.0 | 34.1 | 85.0 | 105.0 | 98.0 | 35 | 240 |
| 150A | 150.0 | 59.1 | 110.0 | 130.0 | 98.0 | 45 | 240 |
