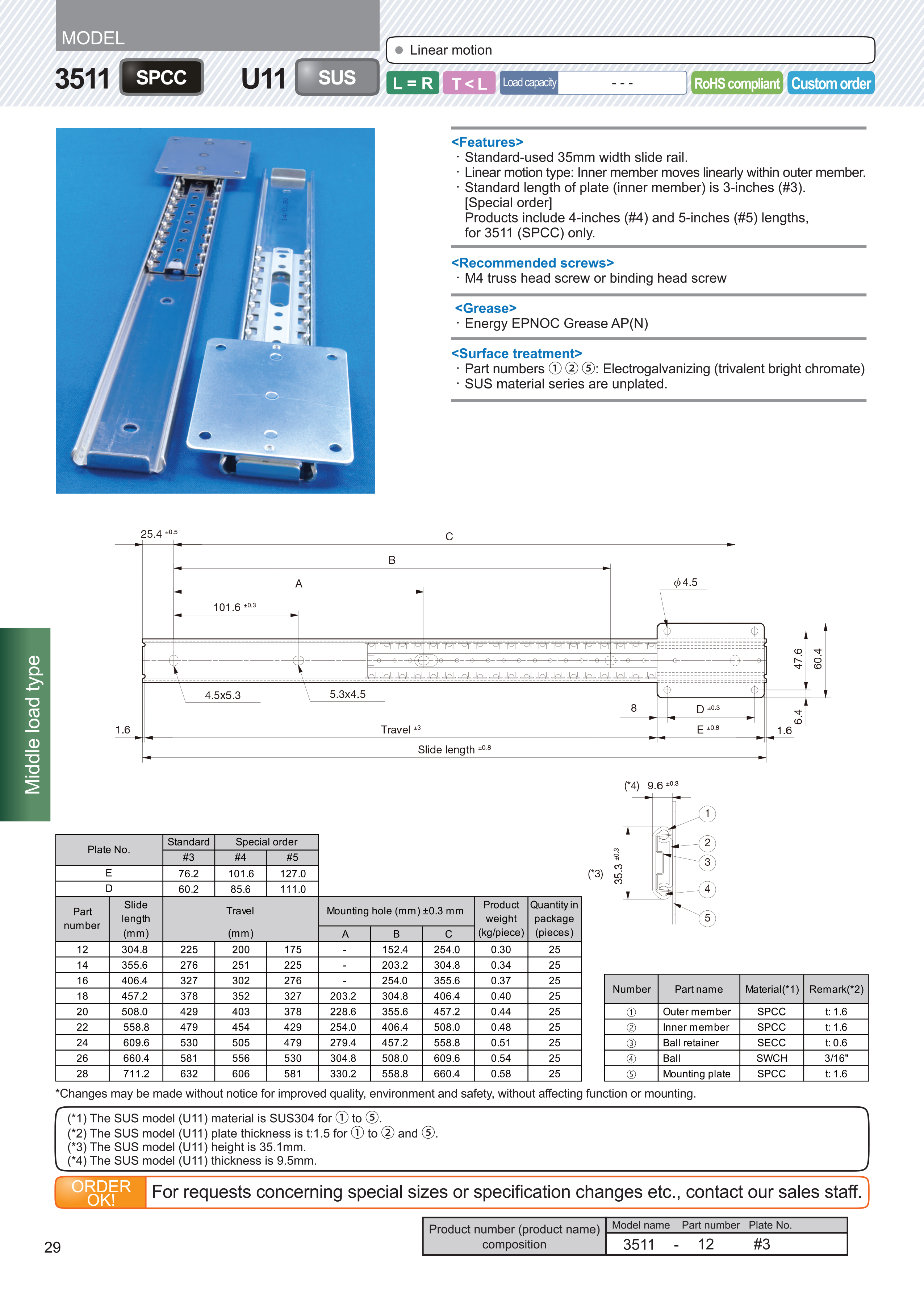

3511 / U11
SPCC SUS 中負載 直線型滾珠滑軌
滑軌長度：約300~700mm
標準35mm

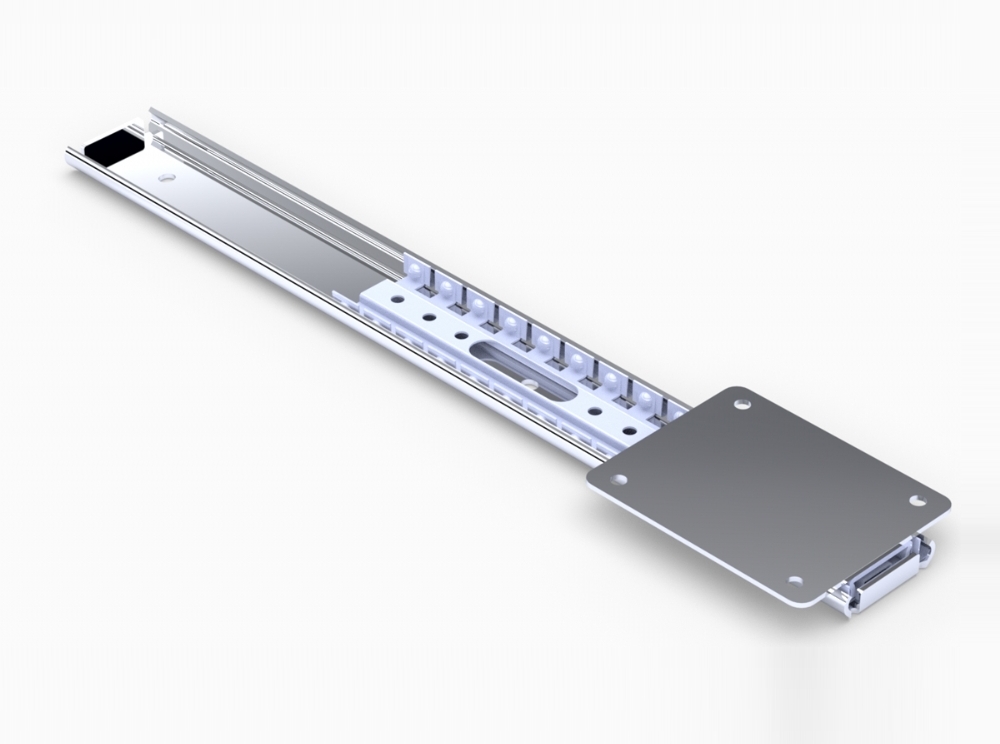

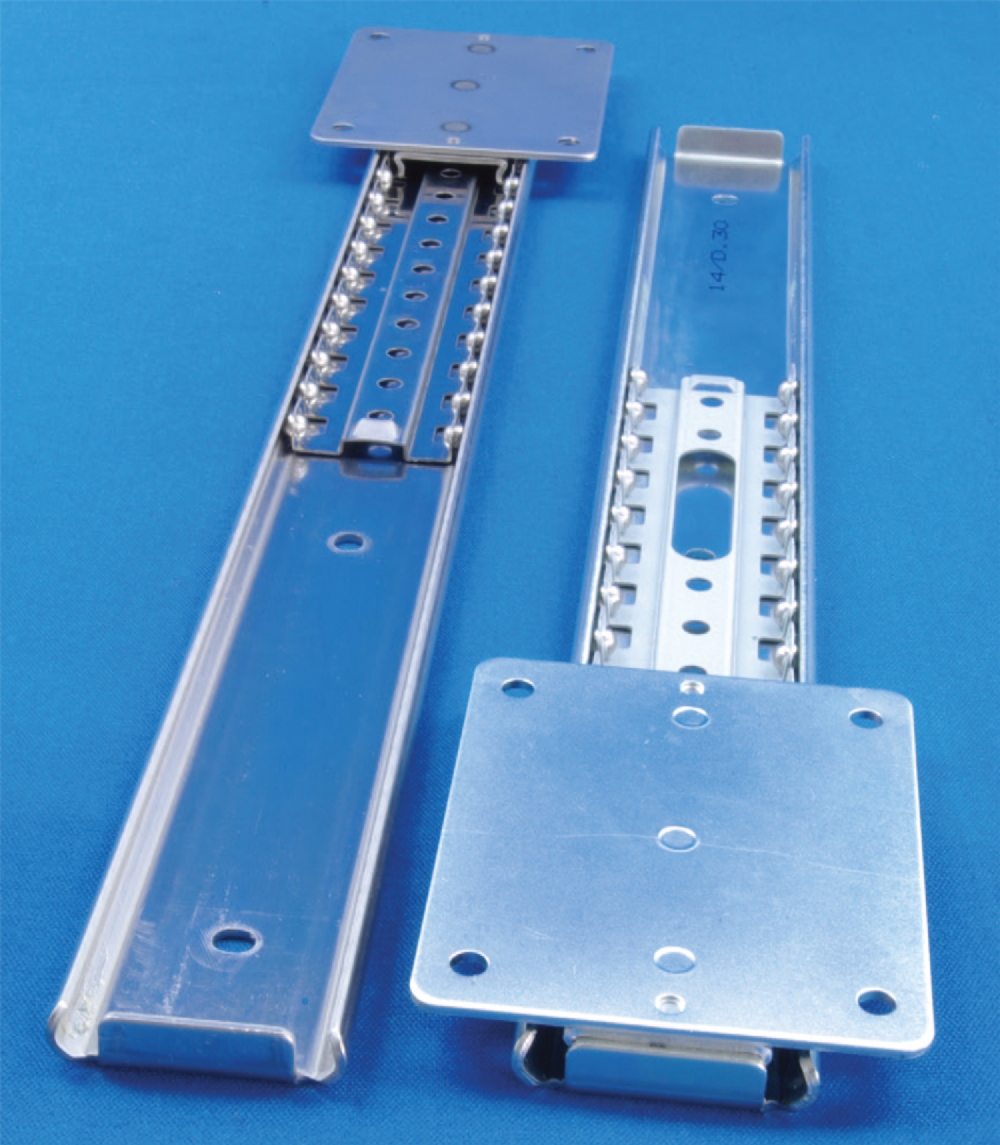

平台內軌移動式滾珠滑軌
- 滑軌長度：約300~700mm
- 標準35mm
- 平台內軌移動式滾珠滑軌

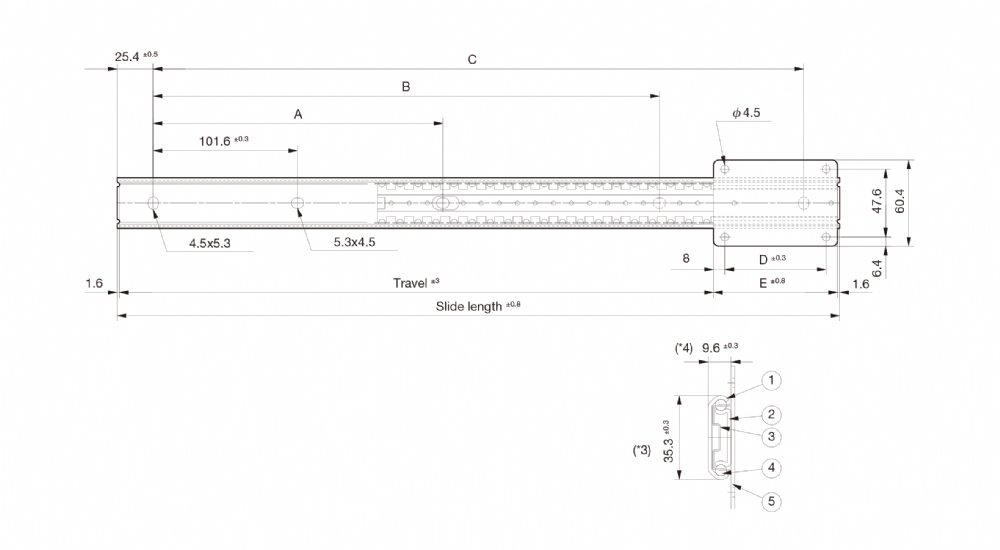

| Plate No. | Standard | Spceial order | |||||||||
| #3 | #4 | #5 | |||||||||
| E | 76.2 | 101.6 | 127.0 | ||||||||
| D | 60.2 | 85.6 | 111.0 | ||||||||
| Part number |
Slide length |
Travel | Mounting hole (mm) ±0.3 mm | Product weight (kg/piece) |
Quantity in package (pieces) |
||||||
| (mm) | (mm) | A | B | C | |||||||
| 12 | 304.8 | 225 | 200 | 175 | - | 152.4 | 254.0 | 0.30 | 25 | ||
| 14 | 355.6 | 276 | 251 | 225 | - | 203.2 | 304.8 | 0.34 | 25 | ||
| 16 | 406.4 | 327 | 302 | 276 | - | 245.0 | 355.6 | 0.37 | 25 | ||
| 18 | 457.2 | 378 | 352 | 327 | 203.2 | 304.8 | 406.4 | 0.40 | 25 | ||
| 20 | 508.0 | 429 | 403 | 378 | 228.6 | 355.6 | 457.2 | 0.44 | 25 | ||
| 22 | 558.8 | 479 | 454 | 429 | 254.0 | 406.4 | 508.0 | 0.48 | 25 | ||
| 24 | 609.6 | 530 | 505 | 479 | 279.4 | 457.2 | 558.8 | 0.51 | 25 | ||
| 26 | 660.4 | 581 | 556 | 530 | 304.8 | 508.0 | 609.6 | 0.54 | 25 | ||
| 28 | 711.2 | 632 | 606 | 581 | 330.2 | 558.8 | 660.4 | 0.58 | 25 | ||
