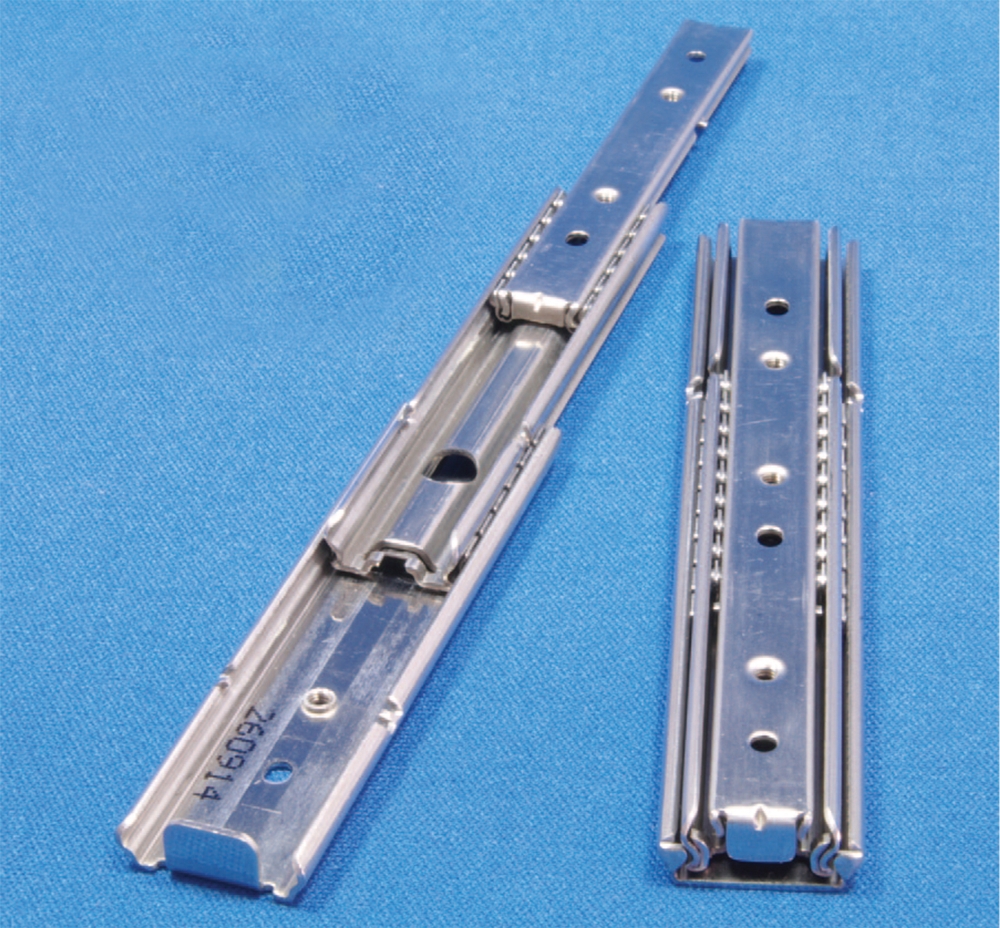

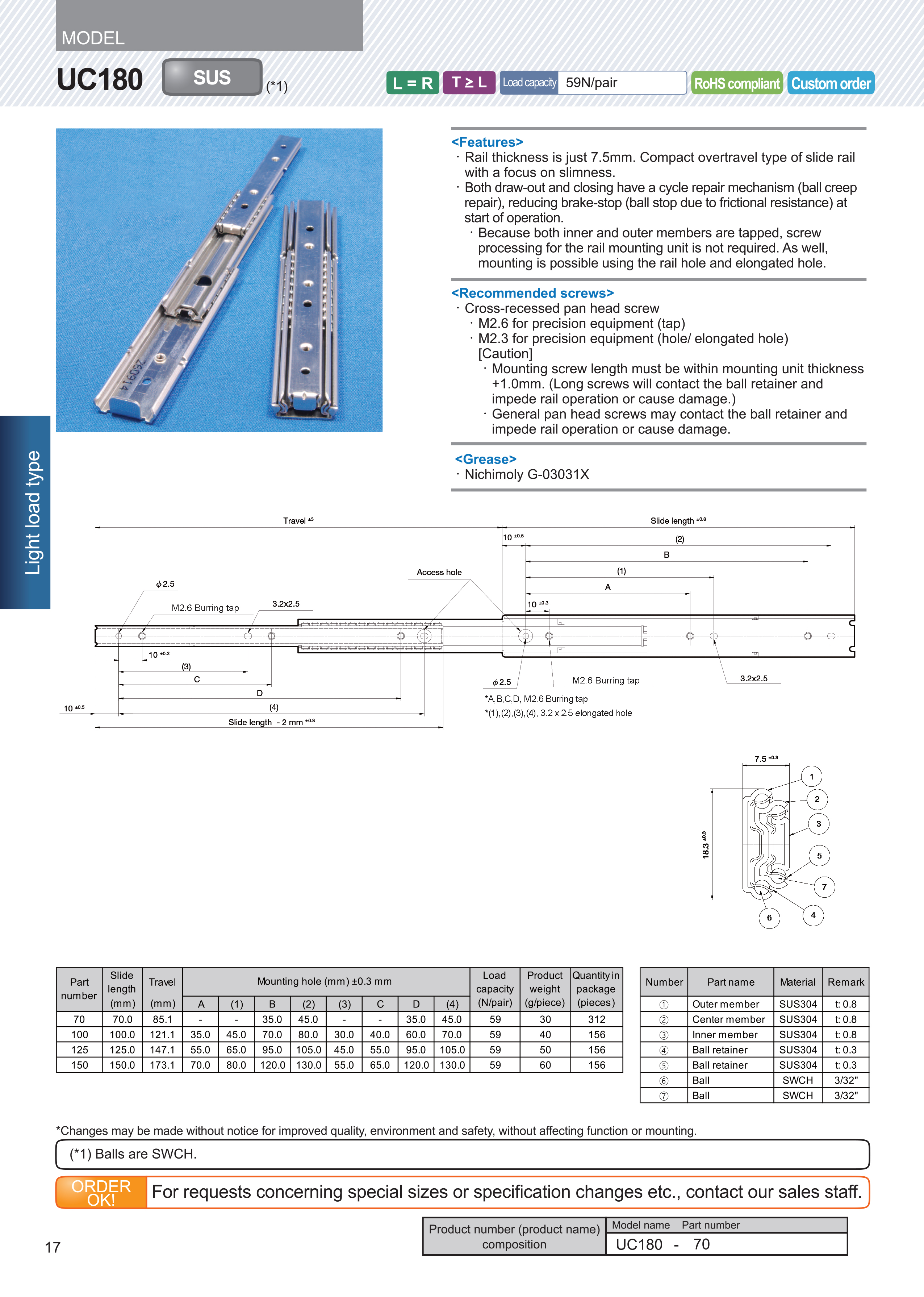

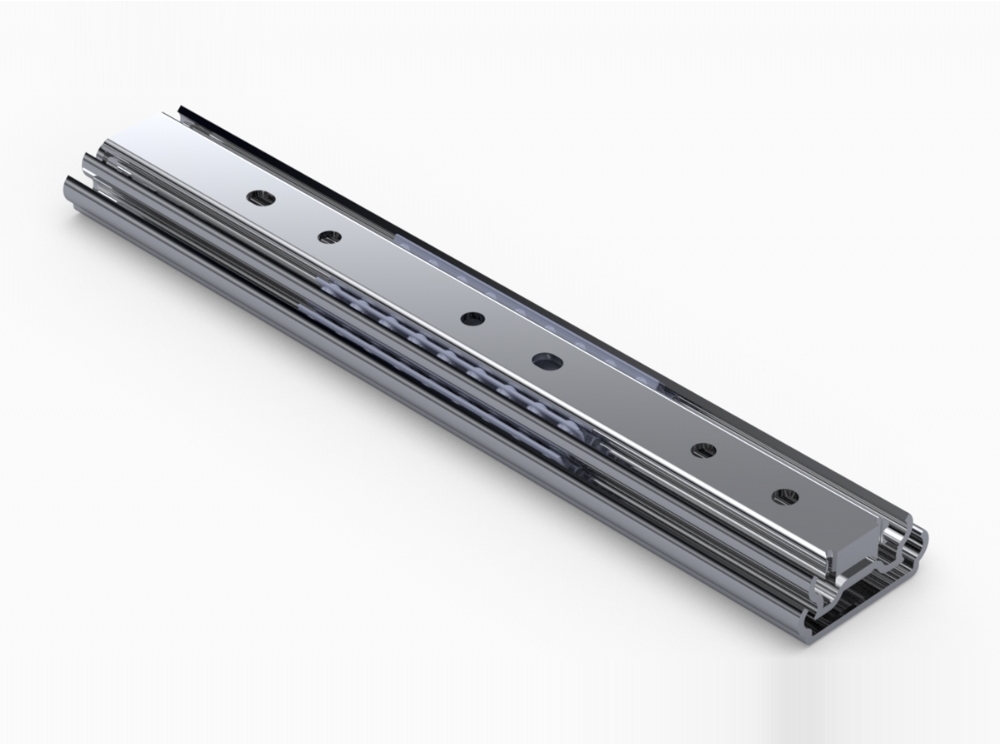

UC180
SUS 不銹鋼輕負載 薄型完全行程滾珠滑軌
滑軌長度：70~150mm
滑軌荷重：5kg
纖薄輕巧，滑軌厚度僅為7.5mm
拉出和關閉均具有鋼珠循環修復機構，減少因摩擦阻力所造成的停滯問題
- 滑軌長度：70~150mm
- 滑軌荷重：5kg
- 纖薄輕巧，滑軌厚度僅為7.5mm。
- 拉出和關閉均具有鋼珠循環修復機構，減少因摩擦阻力所造成的停滯問題。

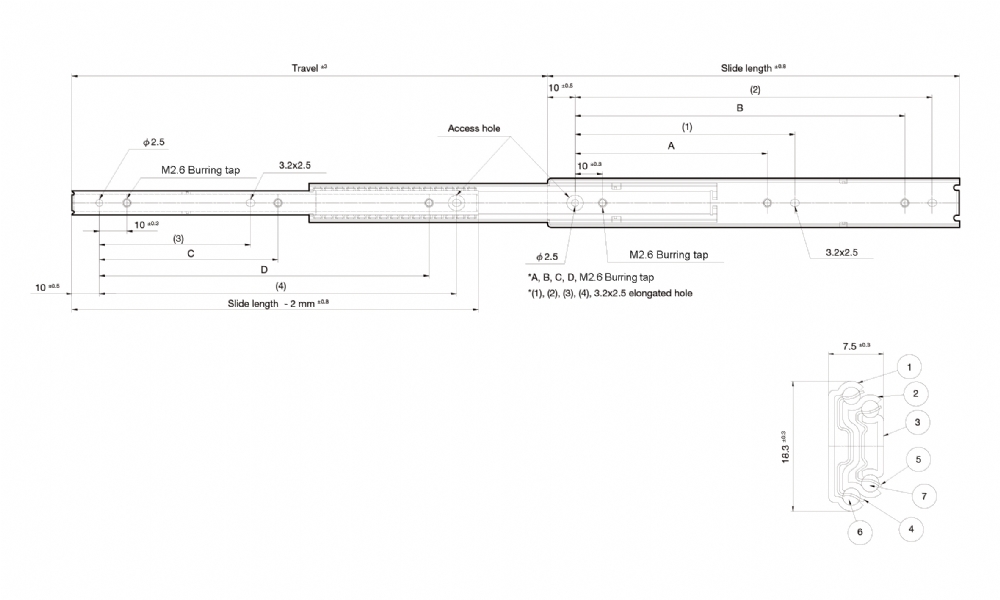

| Part number |
Slide length |
Travel | Mounting hole (mm) ±0.3 mm | Load capacity (N/pair) |
Product weight (g/piece) |
Quantity in package (pieces) |
|||||||
| (mm) | (mm) | A | (1) | B | (2) | (3) | C | D | (4) | ||||
| 70A | 70.0 | 85.1 | - | - | 35.0 | 45.0 | - | - | 35.0 | 45.0 | 59 | 30 | - |
| 100A | 100.0 | 121.1 | 35.0 | 45.0 | 70.0 | 80.0 | 30.0 | 40.0 | 60.0 | 70.0 | 59 | 40 | - |
| 125A | 125.0 | 147.1 | 55.0 | 65.0 | 95.0 | 105.0 | 45.0 | 55.0 | 95.0 | 105.0 | 59 | 50 | - |
| 150A | 150.0 | 173.1 | 70.0 | 80.0 | 120.0 | 130.0 | 55.0 | 65.0 | 120.0 | 130.0 | 59 | 60 | - |
