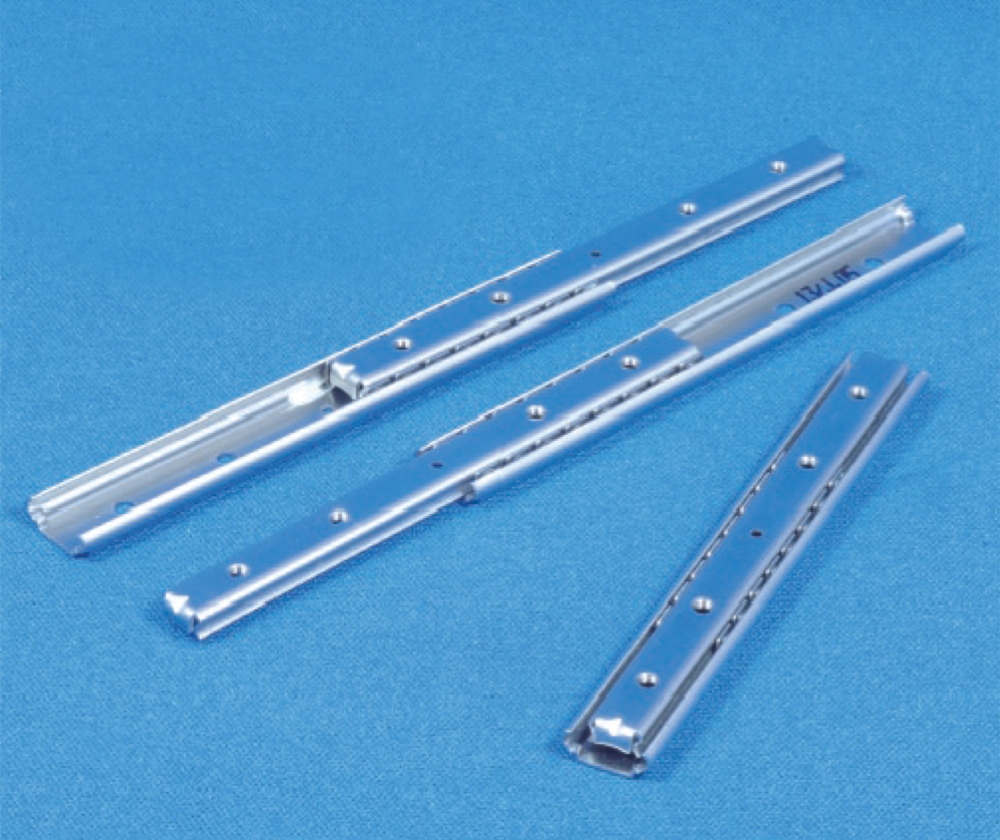

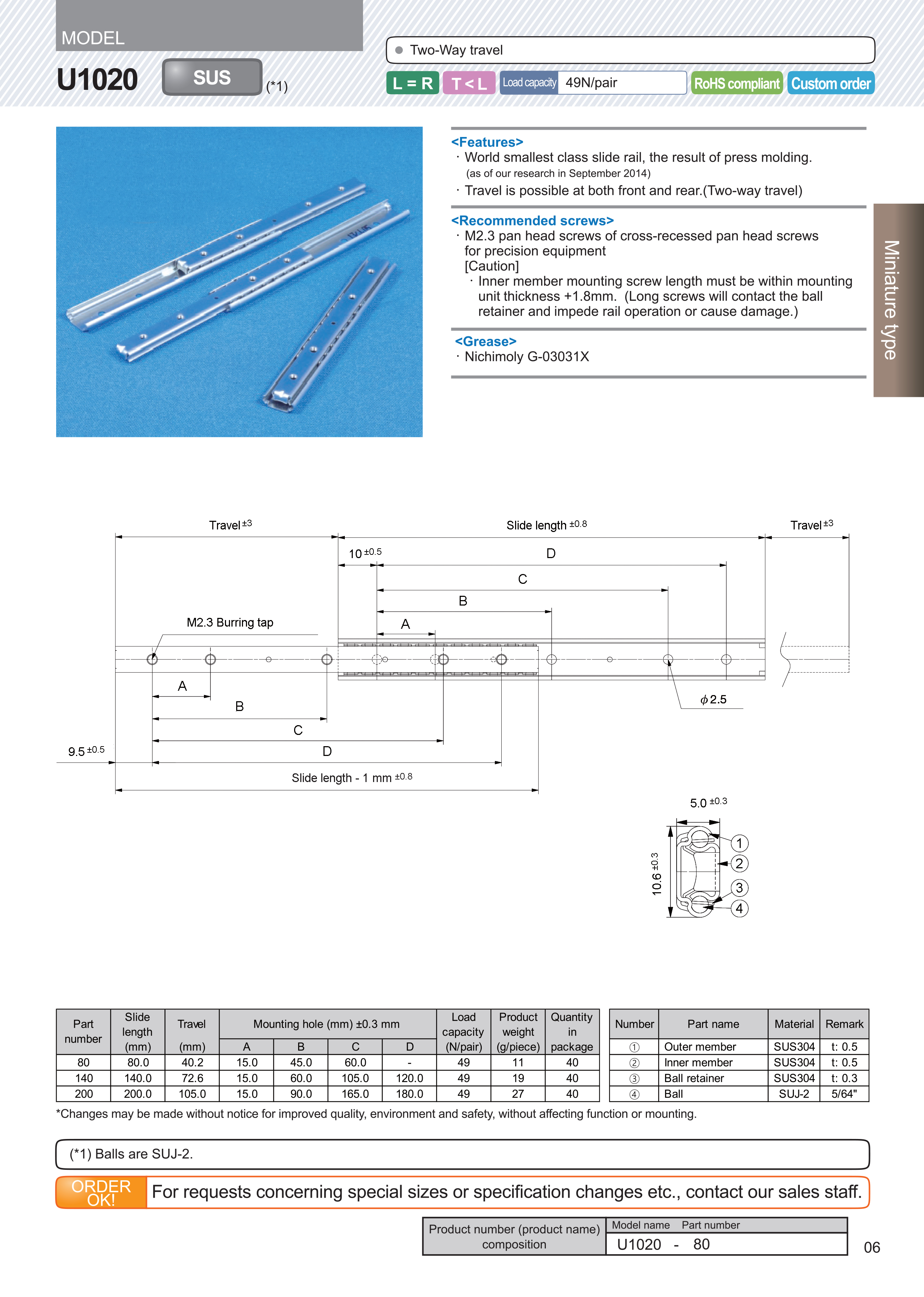

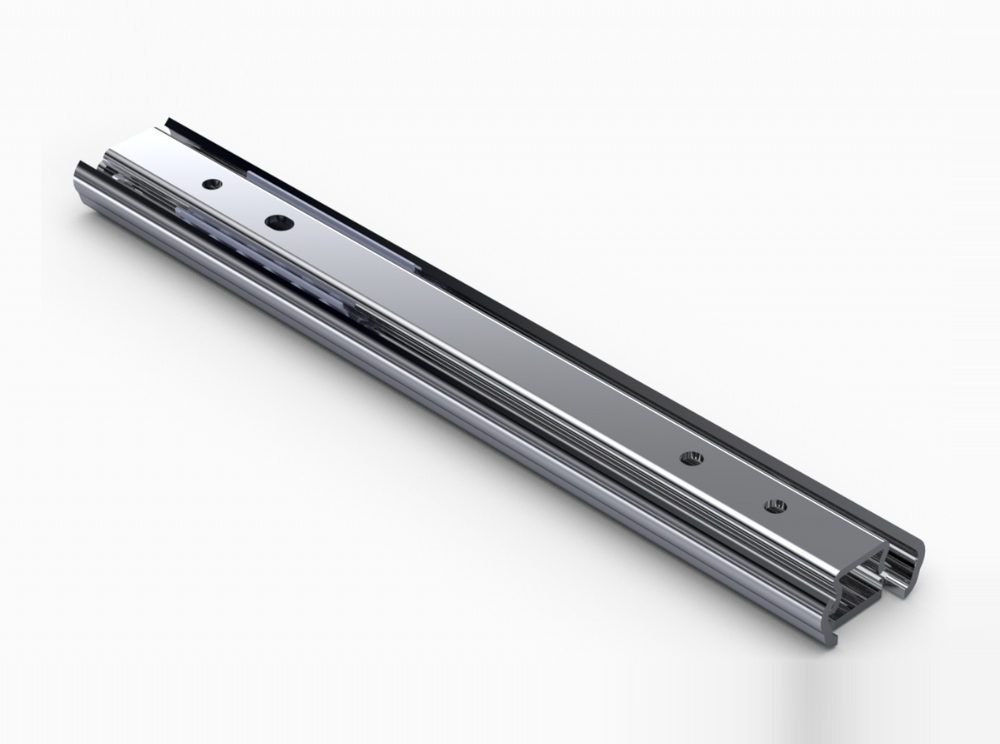

Miniature Two-Way travel type

U1020

U1020
U1020
U1020
U1020

Miniature Two-Way travel type

Length:80~200mm
Load capacity:49kg

Features
.World smallest class slide rail, the result of press molding. (2014)


Recommended screw
.M2.3 pan head screws or cross-recessed pan head screws for precision equipment


Grease
.Nichimoly G-03031X

U1020
Part
number
Slide
length

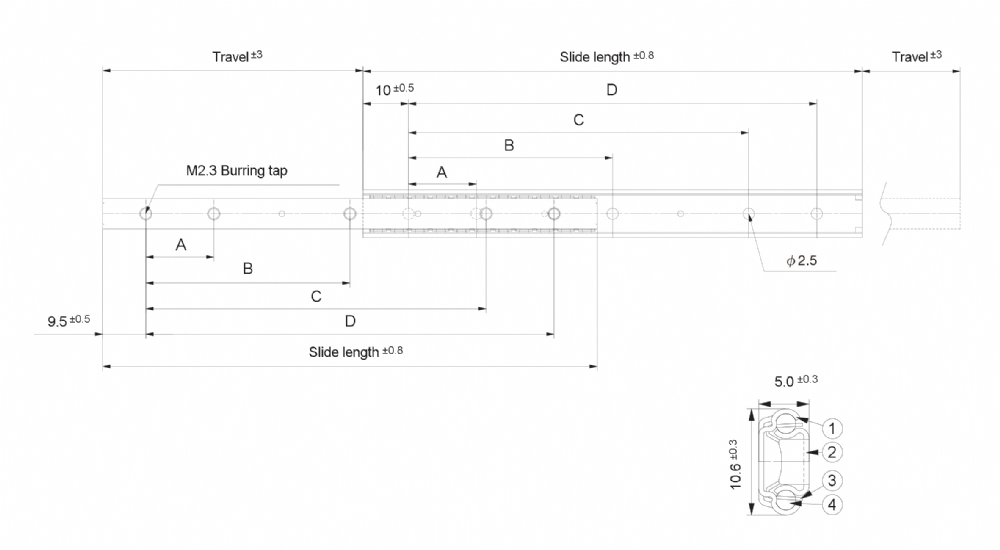

Travel Mounting hole (mm) ±0.3 mm Load
capacity
(N/pair)
Product
weight
(g/piece)
Quantity in
package
(pieces)
(mm) (mm) A B C D
80 80.0 41.2 15.0 45.0 60.0 - 49 11 40
140 140.0 73.6 15.0 60.0 105.0 120.0 49 19 40
200 200.0 106.0 15.0 90.0 165.0 180.0 49 27 40
