6315
高負載 直線型滾珠滑軌
滑軌長度：300~1000mm
平台式直線型滑軌
- 滑軌長度：300~1000mm
- 平台式直線型滑軌
| Part number |
Slide length |

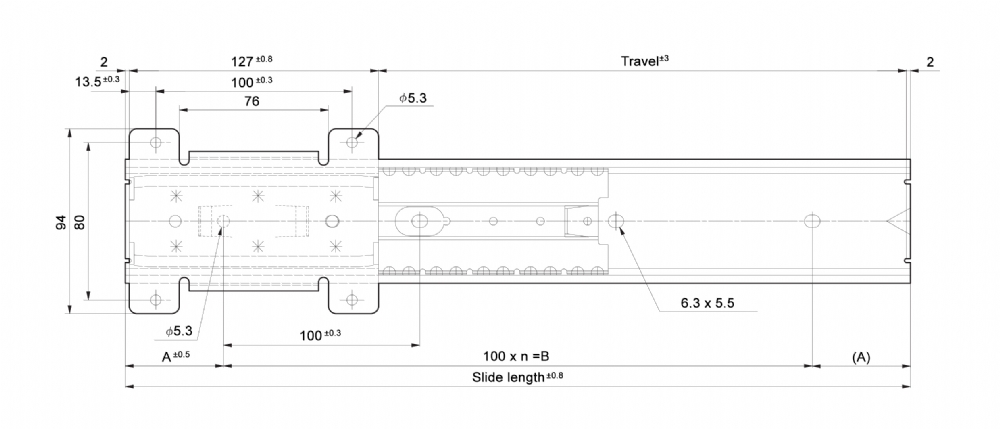

Travel | Mounting hole (mm) ±0.3 mm | Product weight (kg/piece) |
||
| (mm) | (mm) | A | n | B+0.3 | ||
| 300 | 300 | 169 | 50 | 2 | 200 | 0.86 |
| 350 | 350 | 219 | 25 | 3 | 300 | 0.94 |
| 400 | 400 | 269 | 50 | 3 | 300 | 1.02 |
| 450 | 450 | 319 | 25 | 4 | 400 | 1.09 |
| 500 | 500 | 369 | 50 | 4 | 400 | 1.16 |
| 550 | 550 | 419 | 25 | 5 | 500 | 1.25 |
| 600 | 600 | 469 | 50 | 5 | 500 | 1.33 |
| 650 | 650 | 519 | 25 | 6 | 600 | 1.40 |
| 700 | 700 | 569 | 50 | 6 | 600 | 1.47 |
| 750 | 750 | 619 | 25 | 7 | 700 | 1.55 |
| 800 | 800 | 669 | 50 | 7 | 800 | 0.00 |
| 850 | 850 | 719 | 25 | 8 | 700 | 1.63 |
| 900 | 900 | 769 | 50 | 8 | 800 | 1.70 |
| 950 | 950 | 819 | 25 | 9 | 900 | 1.85 |
| 1000 | 1000 | 869 | 50 | 9 | 900 | 1.92 |
