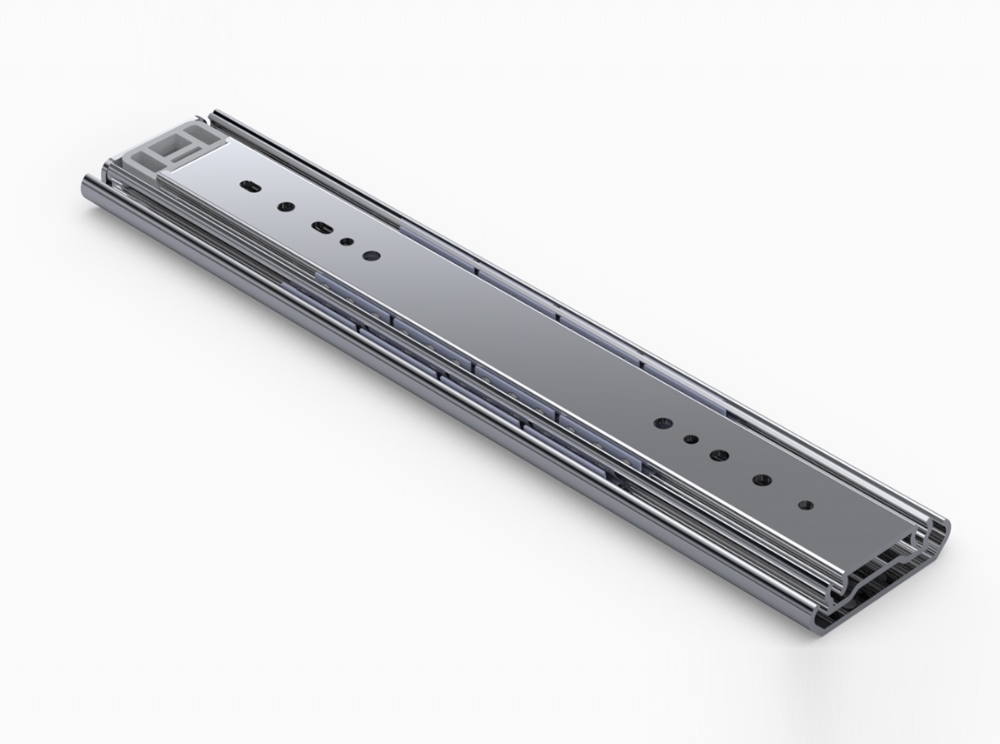

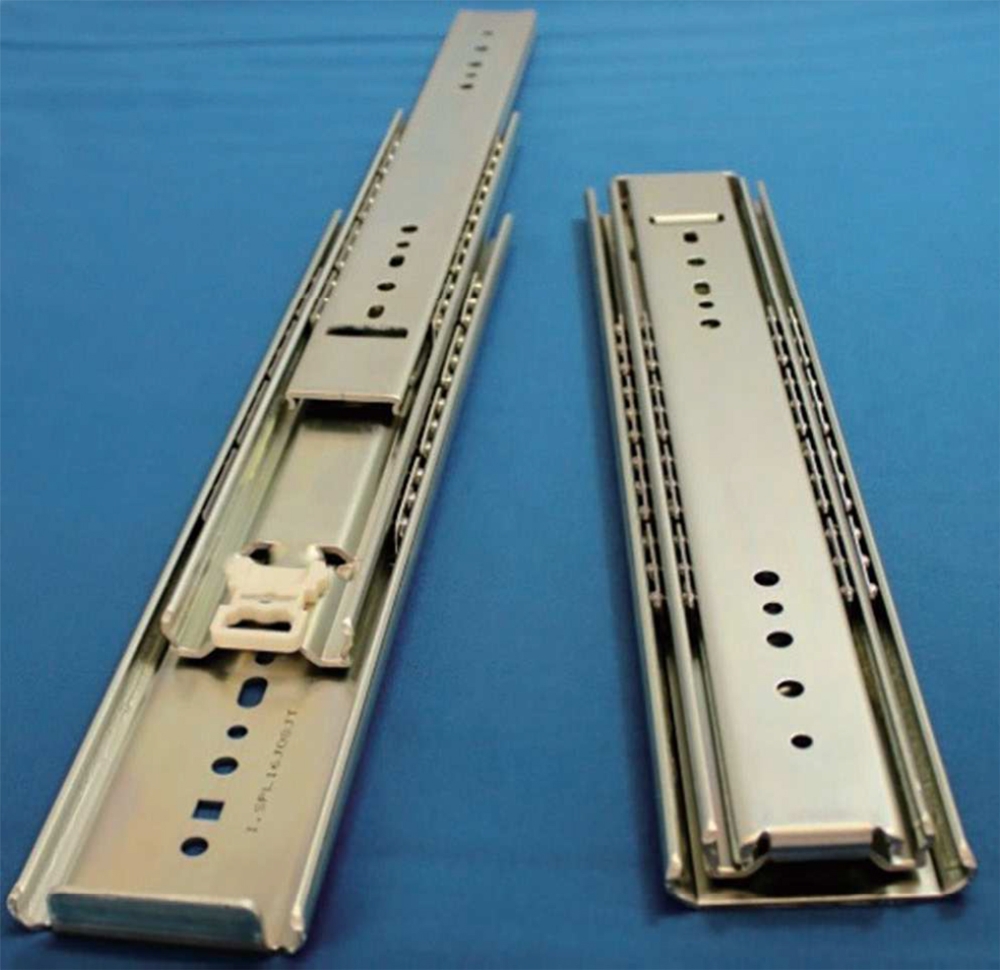

C690
High-load Three-member type
Length：500~960mm
Load capacity：100kg
Features
．Heavy-duty over travel type rail
．Carriage bolt can be used on the outer member side.
Recommended screw
．M5, M6 truss head screw or binding head screw
．M6 carriage bolt can be used on the outer member side
Grease
．JX Nippon Oil and Energy EPNOC Grease AP(N)2

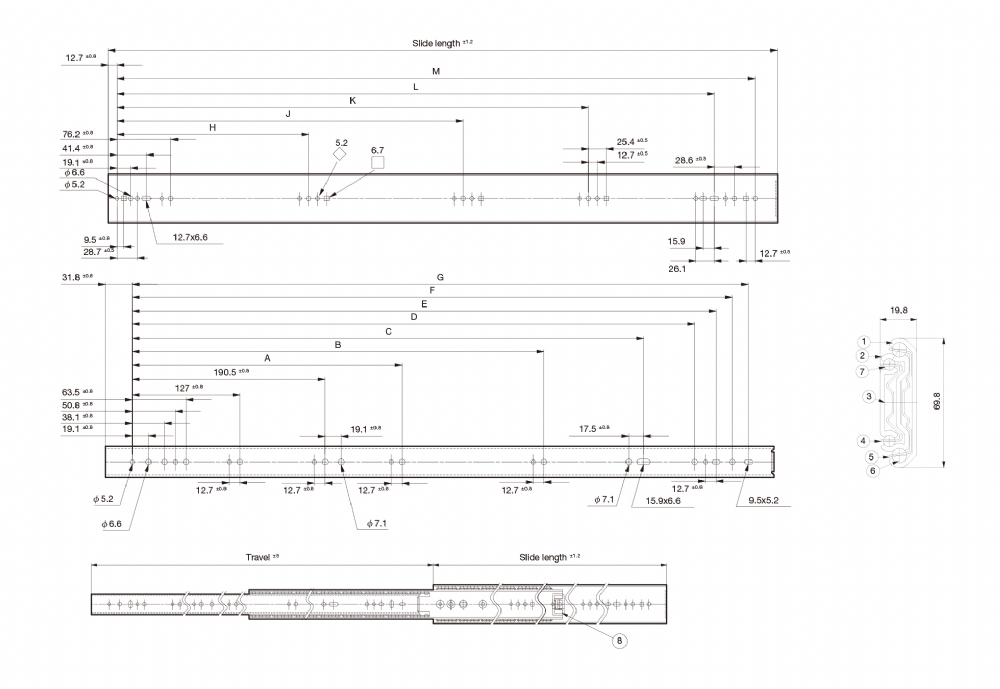

| Part number |
Slide length |
Travel | Mounting hole (mm) ±0.8 mm | Load capacity (N/pair) |
Product weight (kg/piece) |
Quantity in package (pieces) |
|||||||||||
| (mm) | (mm) | A | B | C | D | E | F | G | H | J | K | L | M | ||||
| 20 | 508.0 | 503 | - | - | 296.9 | 357.1 | 382.5 | 401.6 | 420.6 | - | - | - | 406.4 | 463.6 | 1,961 | 2.40 | 6 |
| 22 | 558.8 | 554 | - | - | 347.7 | 407.9 | 433.3 | 452.4 | 471.4 | - | - | - | 457.2 | 514.4 | 1,961 | 2.65 | 6 |
| 24 | 609.6 | 605 | - | - | 398.5 | 458.7 | 484.1 | 503.2 | 522.2 | - | - | - | 508.0 | 565.2 | 1,961 | 2.90 | 6 |
| 26 | 660.4 | 655 | - | - | 449.3 | 509.5 | 534.9 | 554.0 | 573.0 | - | - | - | 558.8 | 616.0 | 1,863 | 3.10 | 6 |
| 28 | 711.2 | 706 | - | - | 500.1 | 560.3 | 585.7 | 604.8 | 623.8 | - | - | - | 609.6 | 666.8 | 1,863 | 3.50 | 4 |
| 30 | 762.0 | 757 | 368.3 | - | 550.9 | 611.1 | 636.5 | 655.6 | 674.6 | 234.9 | - | 501.7 | 660.4 | 717.6 | 1,863 | 3.60 | 4 |
| 32 | 812.8 | 808 | 368.3 | - | 601.7 | 661.9 | 687.3 | 706.4 | 725.4 | 234.9 | 393.7 | 552.5 | 711.2 | 768.4 | 1,863 | 3.85 | 4 |
| 34 | 863.6 | 859 | 368.3 | 469.9 | 652.5 | 712.7 | 738.1 | 757.2 | 776.2 | 234.9 | 419.1 | 603.3 | 762.0 | 819.2 | 1,863 | 4.05 | 4 |
| 36 | 914.4 | 909 | 368.3 | 520.7 | 703.3 | 763.5 | 788.9 | 807.9 | 827.0 | 234.9 | 444.5 | 654.1 | 812.8 | 870.0 | 1,863 | 4.30 | 4 |
| 38 | 965.2 | 959 | 368.3 | 520.7 | 754.1 | 814.3 | 839.7 | 858.8 | 877.8 | 234.9 | 469.9 | 704.9 | 863.6 | 920.8 | 1,863 | 4.55 | 4 |
