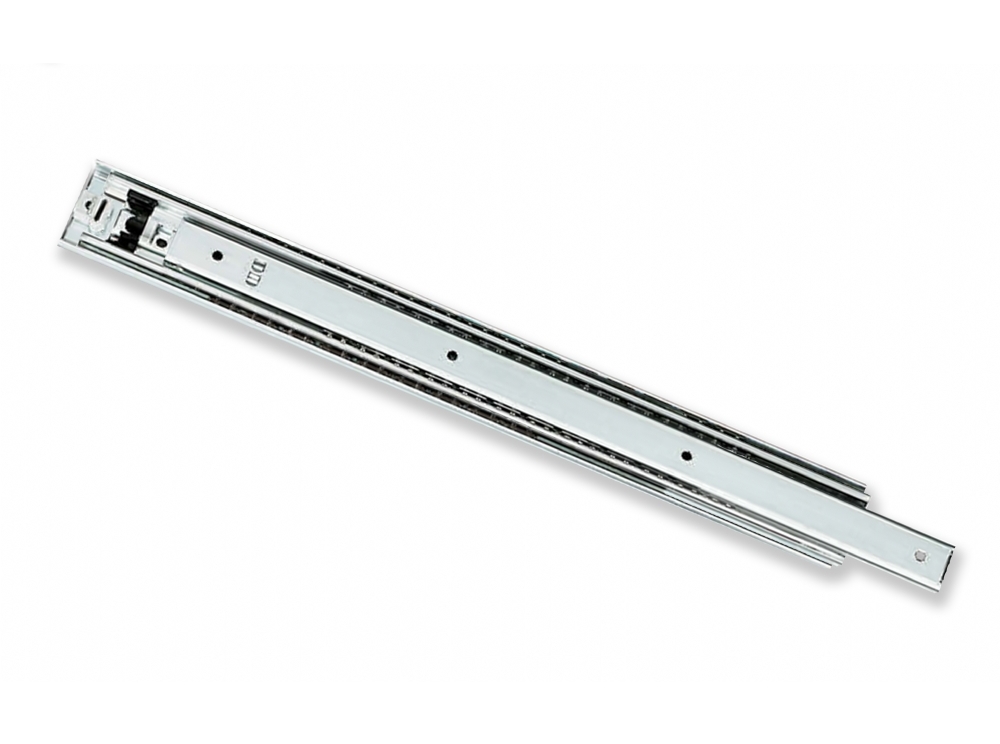

C630
高負載 完全行程滾珠滑軌 (簡易收納)
滑軌長度：300~760mm
滑軌荷重：135kg
重型滑軌
附簡易收納固定功能

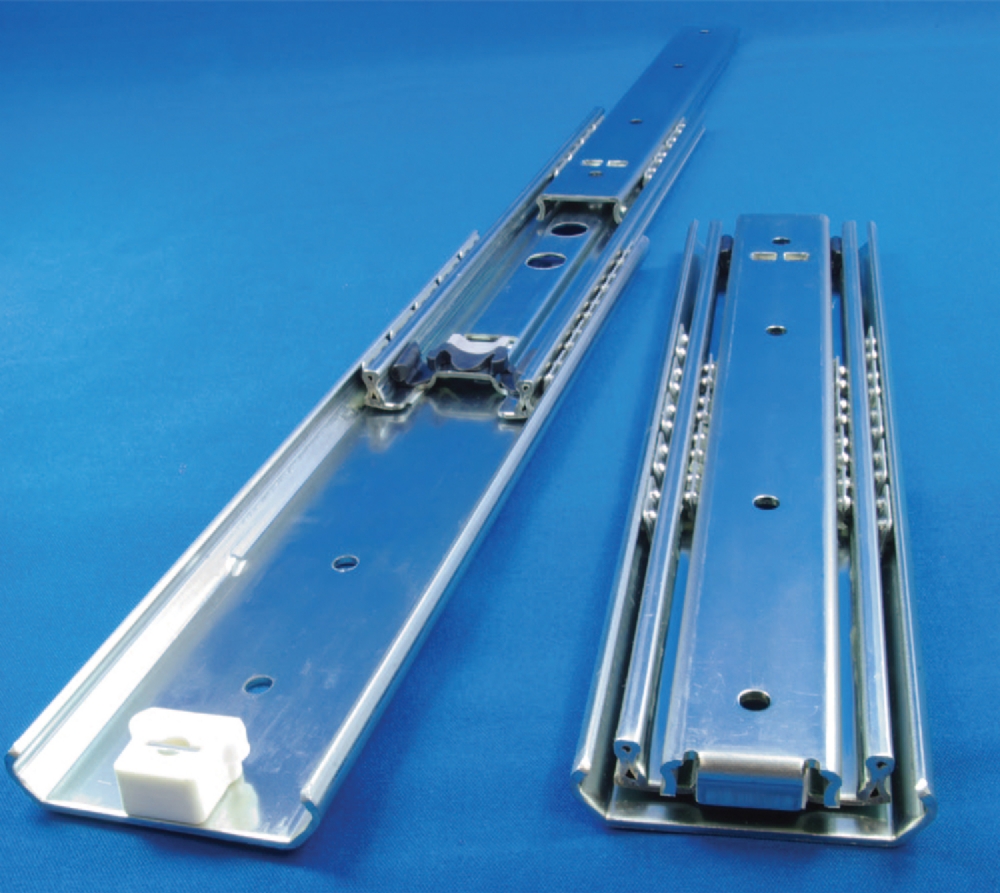

序列機構設計，提高滑軌荷重能力
- 滑軌長度：300~760mm
- 滑軌荷重：135kg
- 重型滑軌
- 附簡易收納固定功能
- 序列機構設計，提高滑軌荷重能力

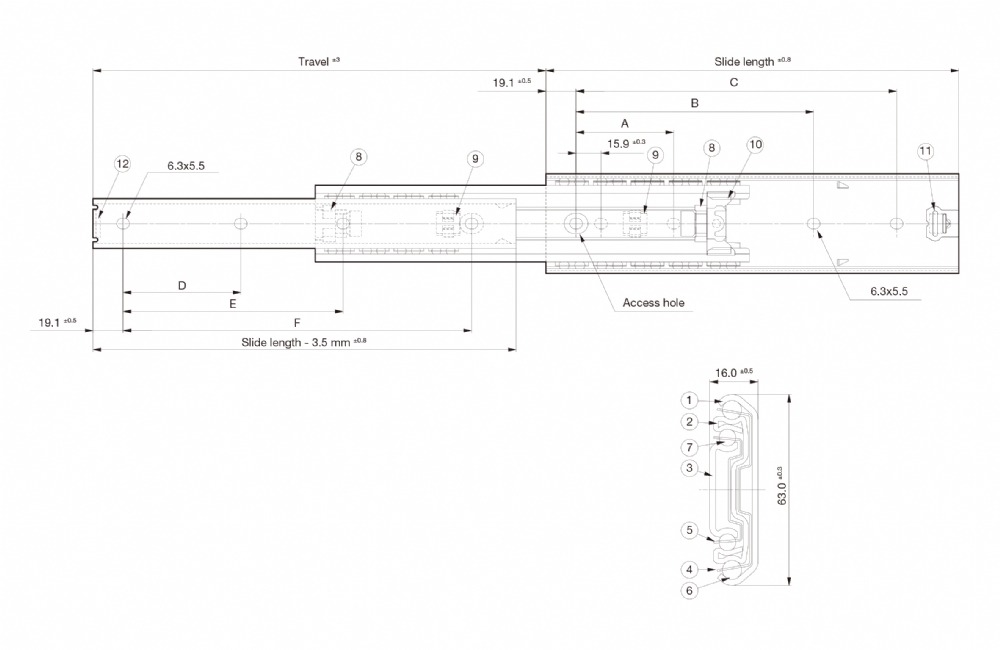

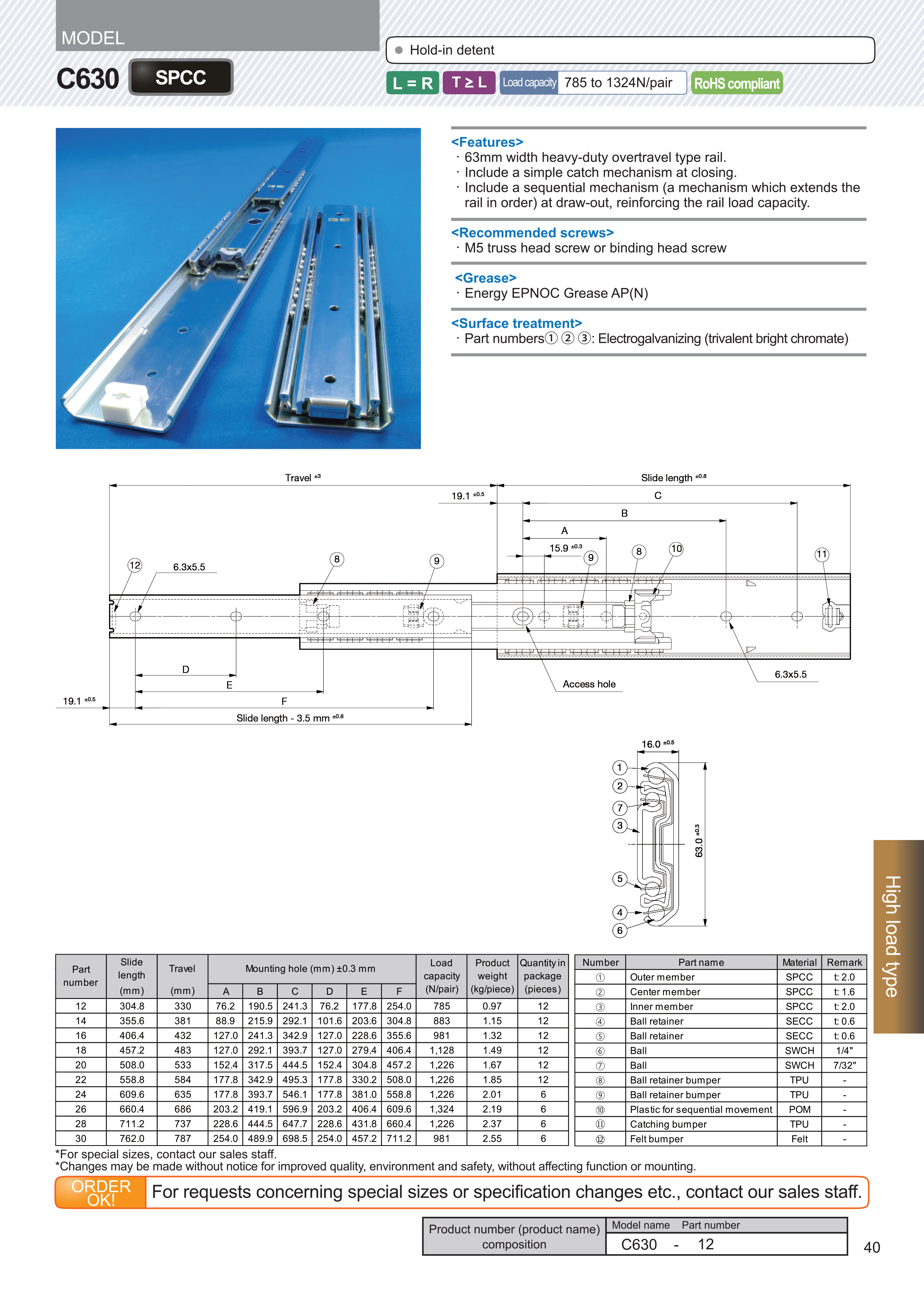

| Part number |
Slide length |
Travel | Mounting hole (mm) ±0.3 mm | Load capacity (N/pair) |
Product weight (kg/piece) |
Quantity in package (pieces) |
|||||
| (mm) | (mm) | A | B | C | D | E | F | ||||
| 12 | 304.8 | 330 | 76.2 | 190.5 | 241.3 | 76.2 | 177.8 | 254.0 | 785 | 0.97 | 12 |
| 14 | 355.6 | 381 | 88.9 | 215.9 | 292.1 | 101.6 | 203.6 | 304.8 | 883 | 1.15 | 12 |
| 16 | 406.4 | 432 | 127.0 | 241.3 | 342.9 | 127.0 | 228.6 | 355.6 | 981 | 1.32 | 12 |
| 18 | 457.2 | 483 | 127.0 | 292.1 | 393.7 | 127.0 | 279.4 | 406.4 | 1,128 | 1.49 | 12 |
| 20 | 508.0 | 533 | 152.4 | 317.5 | 444.5 | 152.4 | 304.8 | 457.2 | 1,226 | 1.67 | 12 |
| 22 | 558.8 | 584 | 177.8 | 342.9 | 495.3 | 177.8 | 330.2 | 508.0 | 1,226 | 1.85 | 12 |
| 24 | 609.6 | 635 | 177.8 | 393.7 | 546.1 | 177.8 | 381.0 | 558.8 | 1,226 | 2.01 | 6 |
| 26 | 660.4 | 686 | 203.2 | 419.1 | 596.9 | 203.2 | 406.4 | 609.6 | 1,324 | 2.19 | 6 |
| 28 | 711.2 | 737 | 228.6 | 444.5 | 647.7 | 228.6 | 431.8 | 660.4 | 1,226 | 2.37 | 6 |
| 30 | 762.0 | 787 | 254.0 | 489.9 | 698.5 | 254.0 | 457.2 | 711.2 | 981 | 2.55 | 6 |
