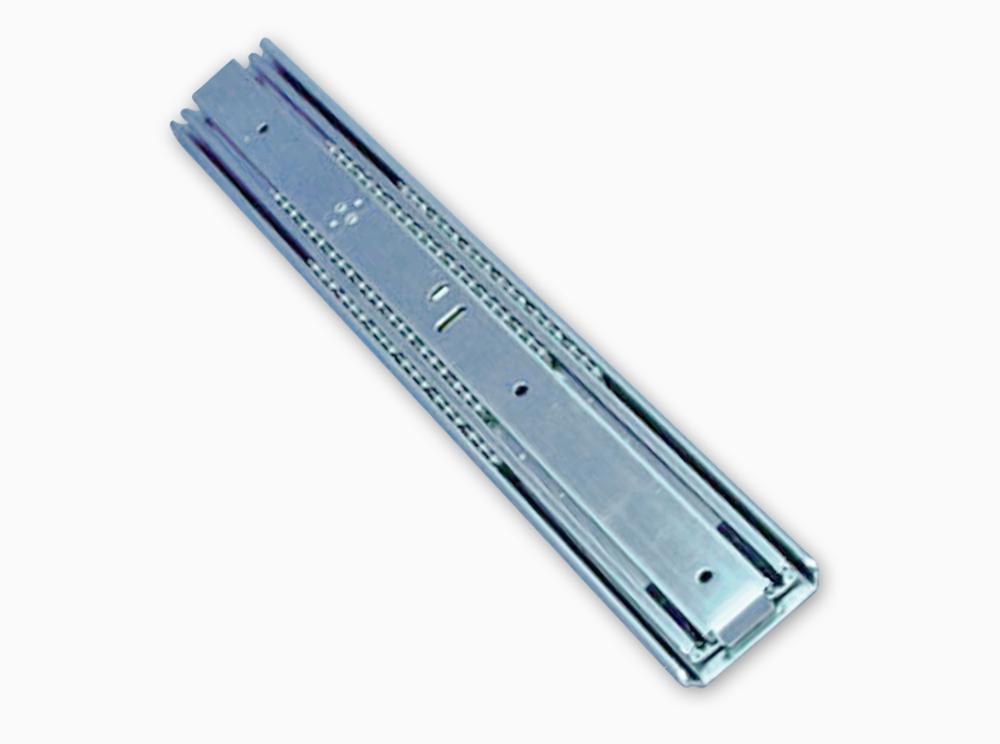

Y515
高負載 完全行程滾珠滑軌 (內軌可拆)
滑軌長度：300~700mm
滑軌荷重：70kg

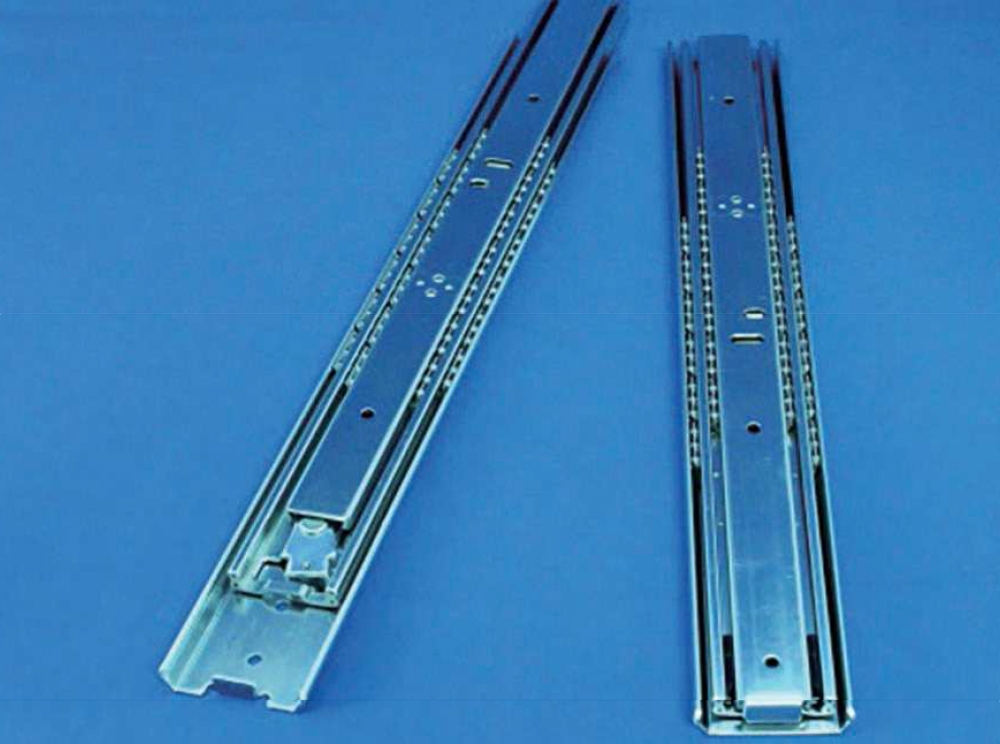

彈片設計，內軌全展開可固定及拆卸
序列設計使內軌收合順暢
- 滑軌長度：300~700mm
- 滑軌荷重：70kg
- 彈片設計，內軌全展開可固定及拆卸
- 序列設計使內軌收合順暢
| Part number |
Slide length |

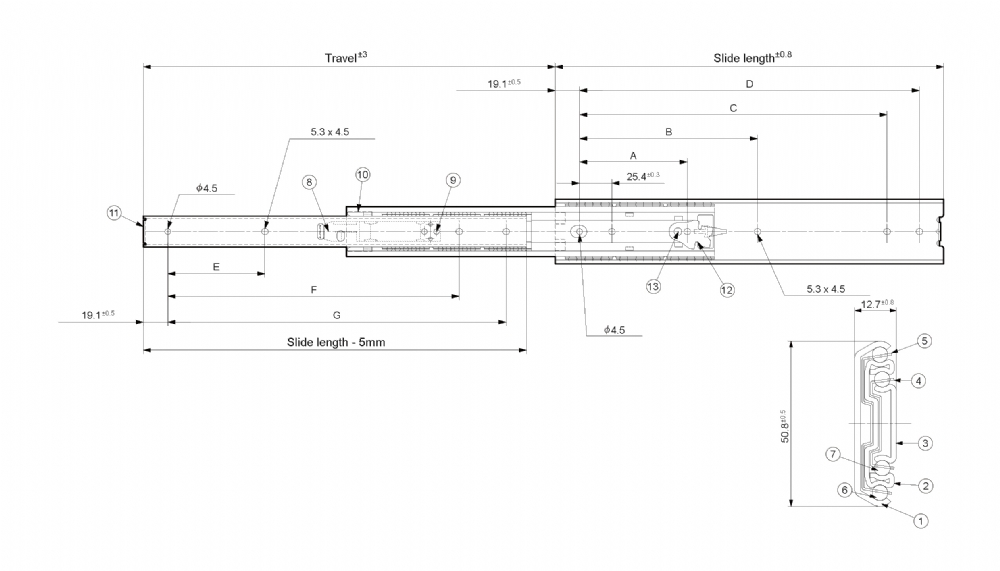

Travel | Mounting hole (mm) ±0.3 mm | Load capacity (N/pair) |
Product weight (kg/piece) |
Quantity in package (pieces) |
||||||
| (mm) | (mm) | A | B | C | D | E | F | G | ||||
| 12 | 304.8 | 330 | - | 139.7 | 241.3 | 266.7 | 76.2 | - | 228.6 | 617 | 617 | 0.72 |
| 14 | 355.6 | 381 | 101.6 | 215.9 | 292.1 | 317.5 | 101.6 | - | 279.4 | 627 | 327 | 0.84 |
| 16 | 406.4 | 432 | 127.0 | 241.3 | 342.9 | 368.3 | 114.3 | - | 330.2 | 646 | 616 | 0.95 |
| 18 | 457.2 | 483 | 139.7 | 279.4 | 393.7 | 419.1 | 139.7 | 292.1 | 381.0 | 666 | 666 | 1.07 |
| 20 | 508 | 533 | 152.4 | 317.5 | 444.5 | 469.9 | 152.4 | 317.5 | 431.8 | 686 | 686 | 1.19 |
| 22 | 558.8 | 584 | 177.8 | 342.9 | 459.3 | 520.7 | 177.8 | 355.6 | 482.6 | 705 | 705 | 1.3 |
| 24 | 609.6 | 635 | 190.5 | 381.0 | 546.1 | 571.5 | 190.5 | 381.0 | 533.4 | 676 | 676 | 1.42 |
| 26 | 660.4 | 686 | 203.2 | 419.1 | 596.9 | 622.3 | 203.2 | 419.1 | 584.2 | 627 | 627 | 1.53 |
| 28 | 711.2 | 737 | 228.6 | 444.5 | 673.1 | 673.1 | 228.6 | 457.2 | 635.0 | 607 | 607 | 1.64 |
