3553 / U53

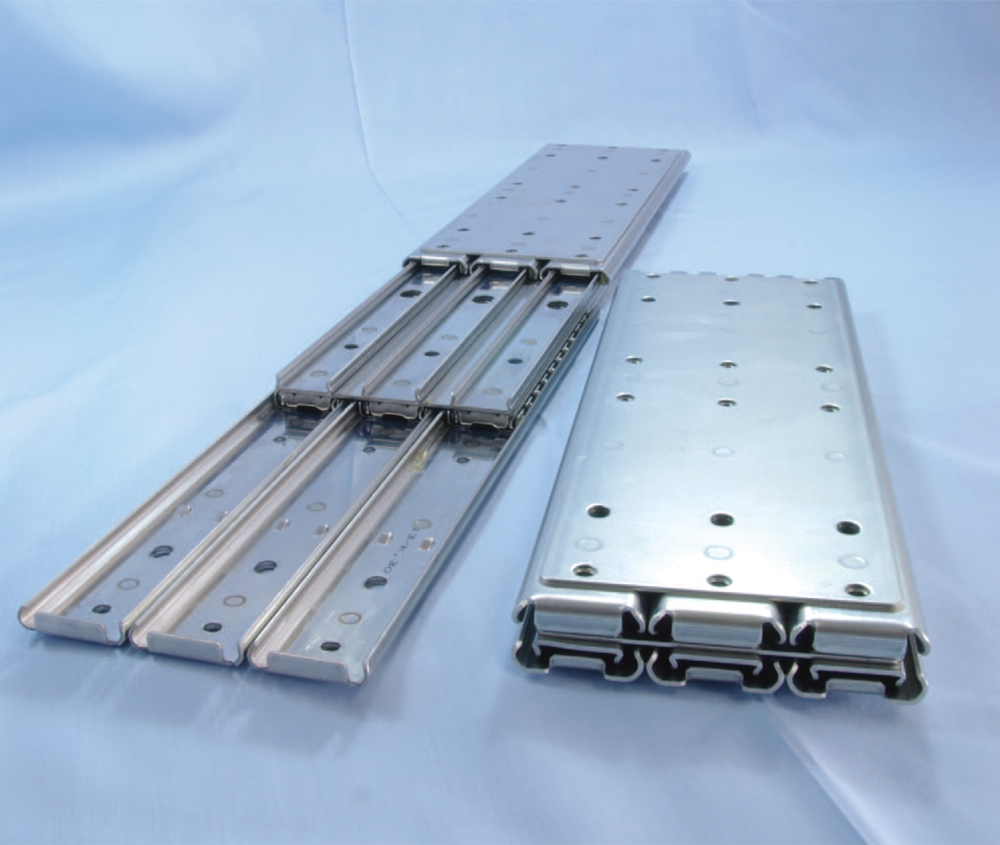

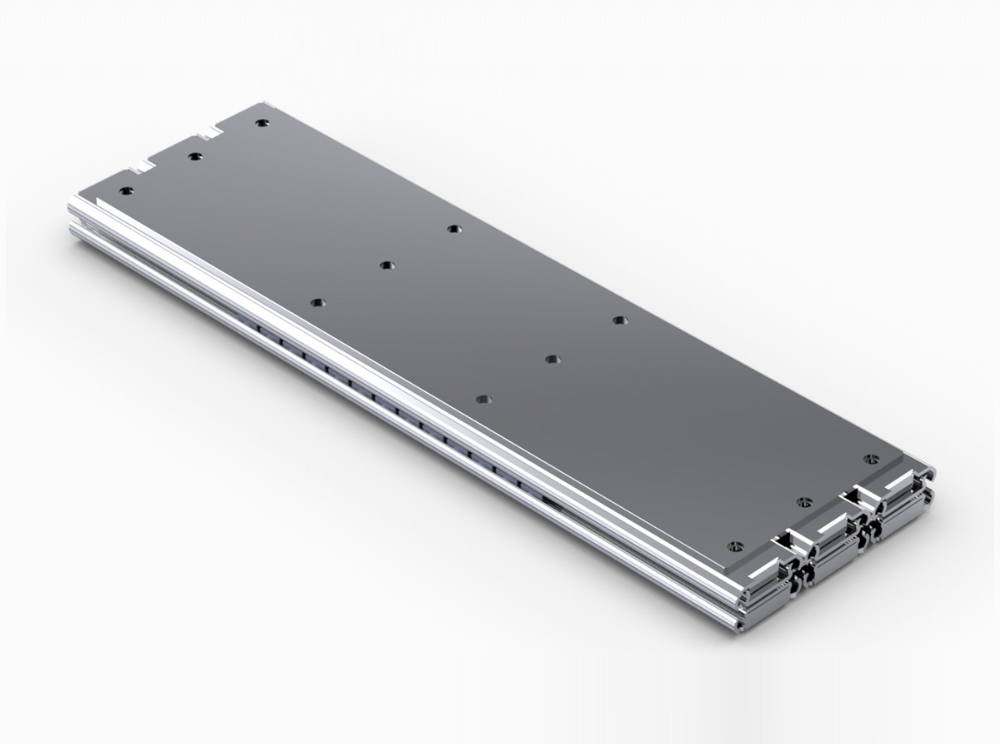

SPCC SUS高負載 完全行程滾珠滑軌
滑軌長度：300~700mm
滑軌荷重：180kg
3531三併滑軌，提高負載能力
- 滑軌長度：300~700mm
- 滑軌荷重：180kg
- 3531三併滑軌，提高負載能力
| Part number |
Slide length |
Travel | Mounting hole (mm) ±0.3 mm | Load capacity (N/pair) |
Product weight (kg/piece) |
Quantity in package (pieces) |
||

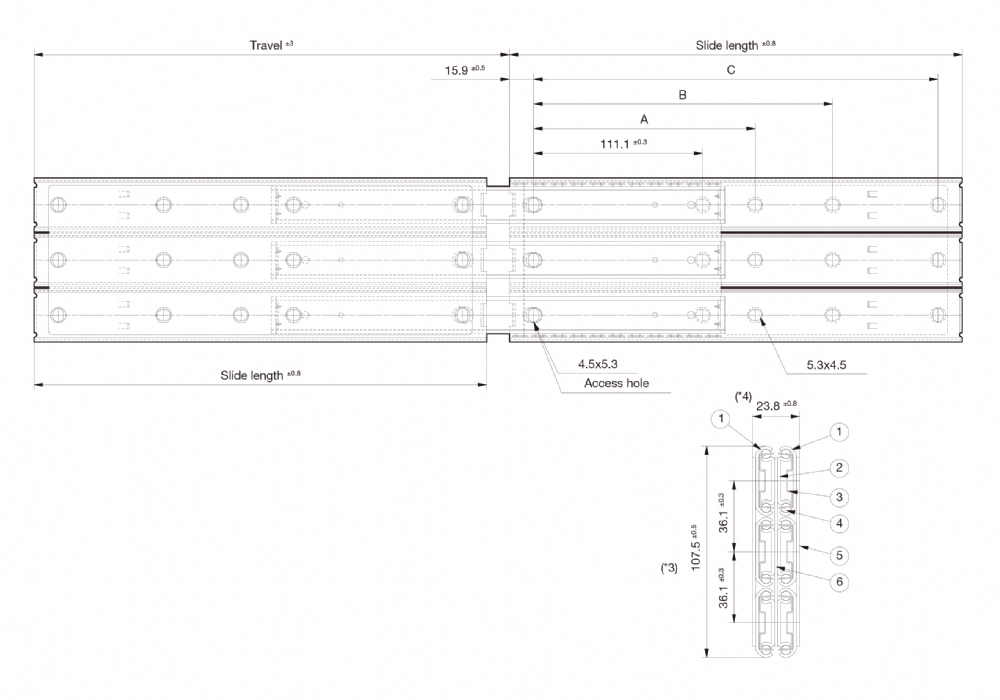

| (mm) | (mm) | A | B | C | ||||
| 12 | 304.8 | 326 | - | 149.2 | 273.0 | 1,687 | 2.87 | 4 |
| 14 | 355.6 | 377 | - | 200.0 | 323.8 | 1,706 | 3.36 | 4 |
| 16 | 406.4 | 428 | - | 250.8 | 374.6 | 1,706 | 3.88 | 4 |
| 18 | 457.2 | 479 | 212.7 | 301.6 | 425.4 | 1,716 | 4.36 | 4 |
| 20 | 508.0 | 529 | 238.1 | 352.4 | 476.2 | 1,746 | 4.93 | 4 |
| 22 | 558.8 | 580 | 263.5 | 403.2 | 527.0 | 1,746 | 5.39 | 4 |
| 24 | 609.6 | 631 | 288.9 | 454.0 | 577.8 | 1,706 | 5.91 | 2 |
| 26 | 660.4 | 682 | 314.3 | 504.8 | 628.6 | 1,687 | 6.42 | 2 |
| 28 | 711.2 | 732 | 339.7 | 555.6 | 679.4 | 1,657 | 6.95 | 2 |
