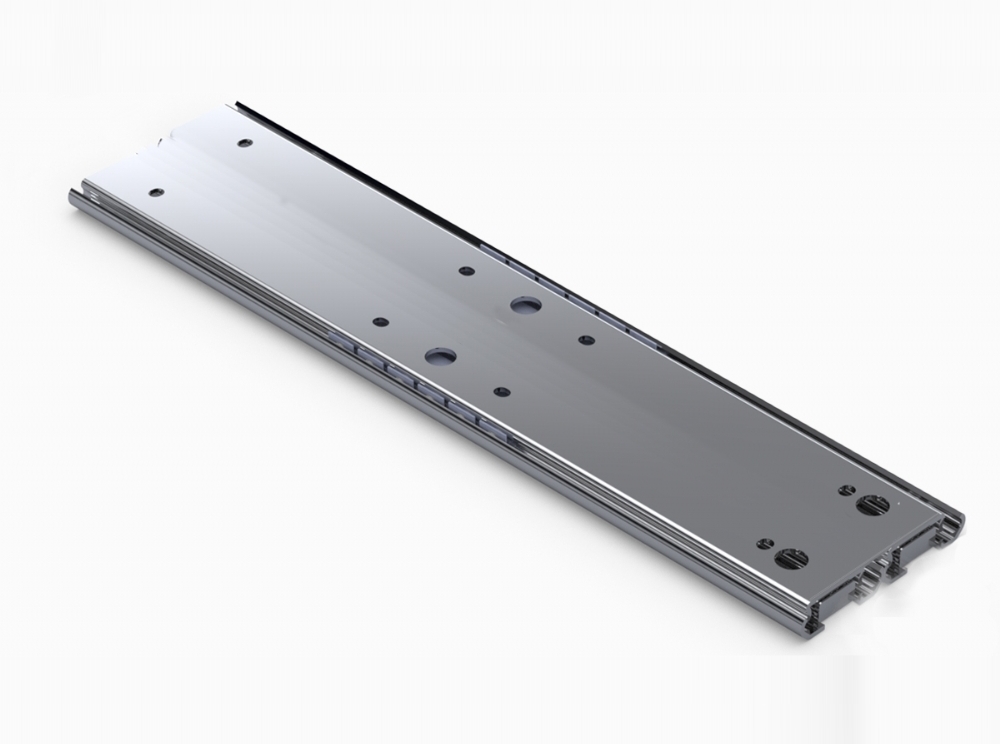

3561 / U61
SPCC SUS 高負載 3/4行程滾珠滑軌
滑軌長度：300~700mm
滑軌荷重：60~85kg

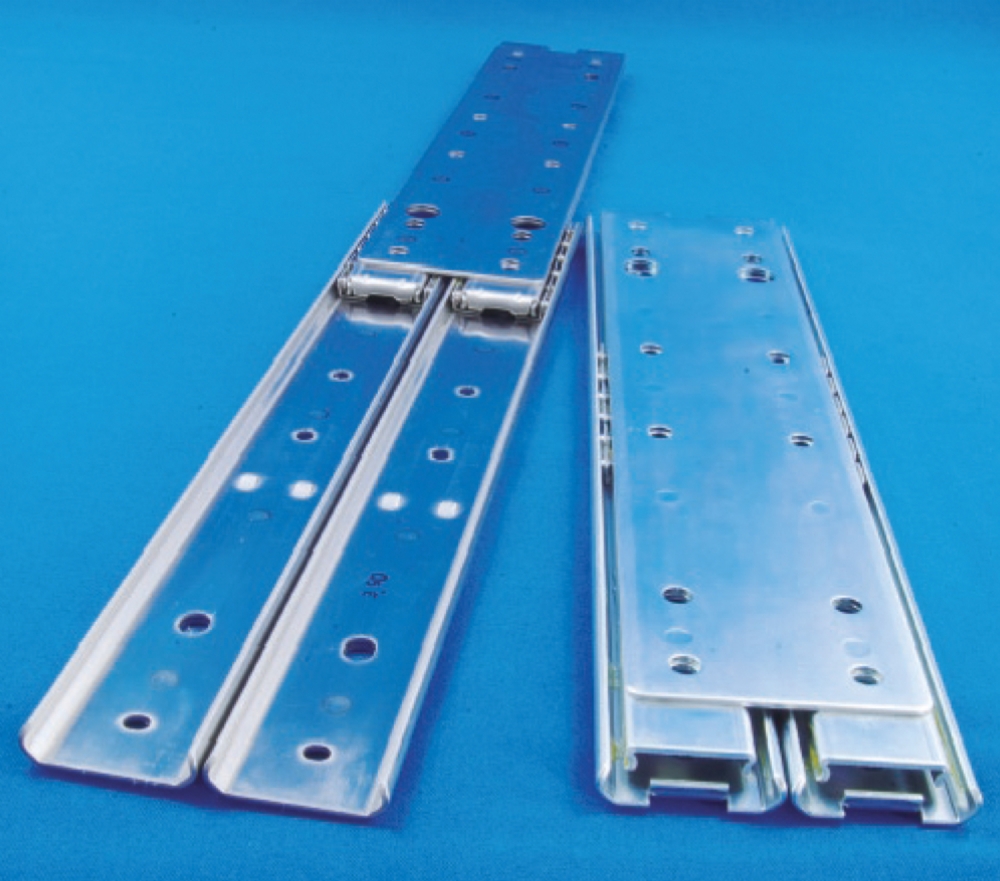

3521雙併滾珠滑軌，提高負載能力
- 滑軌長度：300~700mm
- 滑軌荷重：60~85kg
- 3521雙併滾珠滑軌，提高負載能力
| Part number |
Slide length |
Travel | Mounting hole (mm) ±0.3 mm | Load capacity (N/pair) |
Product weight (kg/piece) |
Quantity in package (pieces) |
|||||

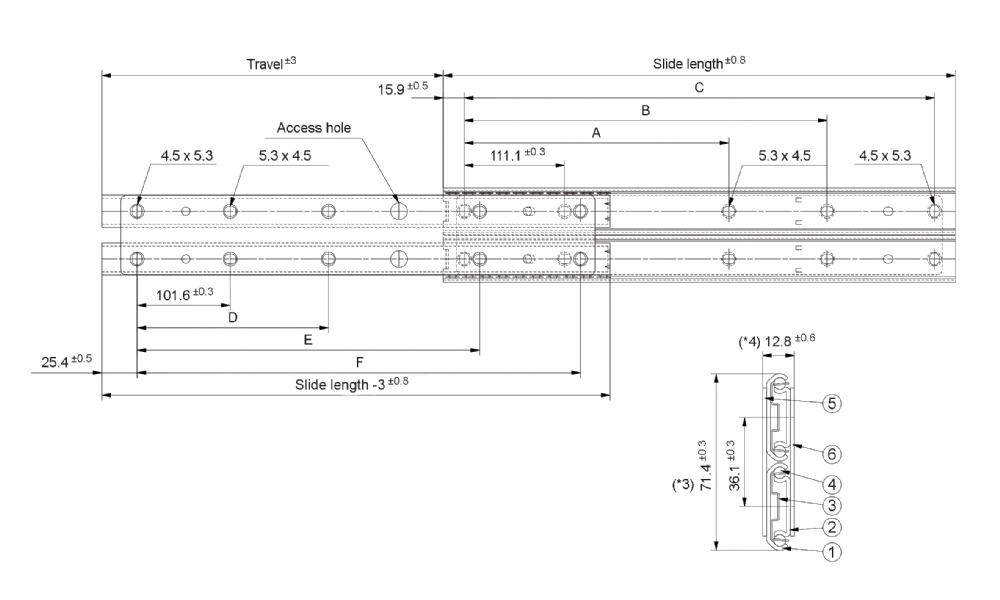

| (mm) | (mm) | A | B | C | D | E | F | ||||
| 12 | 304.8 | 227 | - | 149.2 | 273.0 | - | 152.8 | 254.4 | 628 | 1.01 | 14 |
| 14 | 355.6 | 277 | - | 200.0 | 323.8 | - | 203.6 | 305.2 | 569 | 1.18 | 14 |
| 16 | 406.4 | 303 | - | 250.8 | 374.6 | - | 254.4 | 356.0 | 696 | 1.38 | 14 |
| 18 | 457.2 | 354 | 212.7 | 301.6 | 425.4 | 203.2 | 305.2 | 406.8 | 677 | 1.56 | 14 |
| 20 | 508.0 | 367 | 238.1 | 352.4 | 476.2 | 228.6 | 356.0 | 457.6 | 785 | 1.73 | 14 |
| 22 | 558.8 | 430 | 263.5 | 403.2 | 527.0 | 254.0 | 406.8 | 508.4 | 735 | 1.95 | 14 |
| 24 | 609.6 | 456 | 288.9 | 454.0 | 577.8 | 279.4 | 457.6 | 559.2 | 755 | 2.11 | 6 |
| 26 | 660.4 | 468 | 314.3 | 504.8 | 628.6 | 304.8 | 508.4 | 610.0 | 814 | 2.30 | 6 |
| 28 | 711.2 | 506 | 339.7 | 555.6 | 679.4 | 330.2 | 559.2 | 660.8 | 814 | 2.48 | 6 |
