3535 / U35

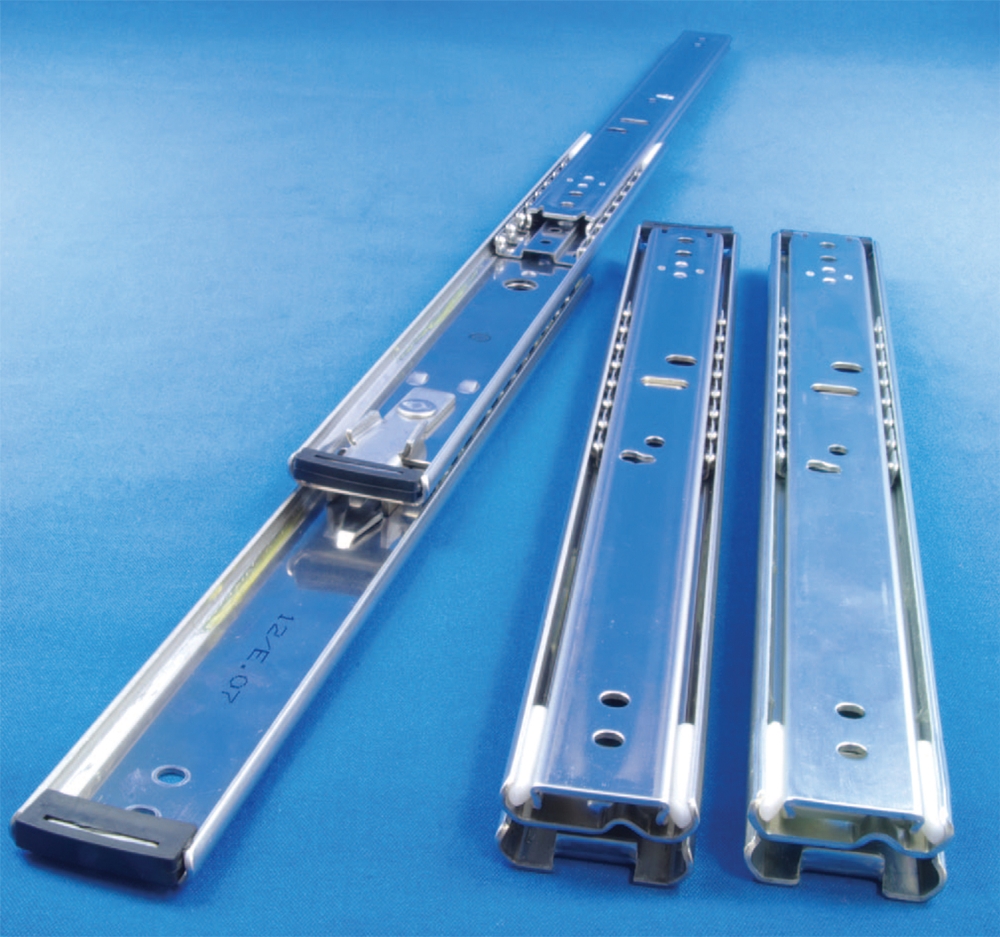

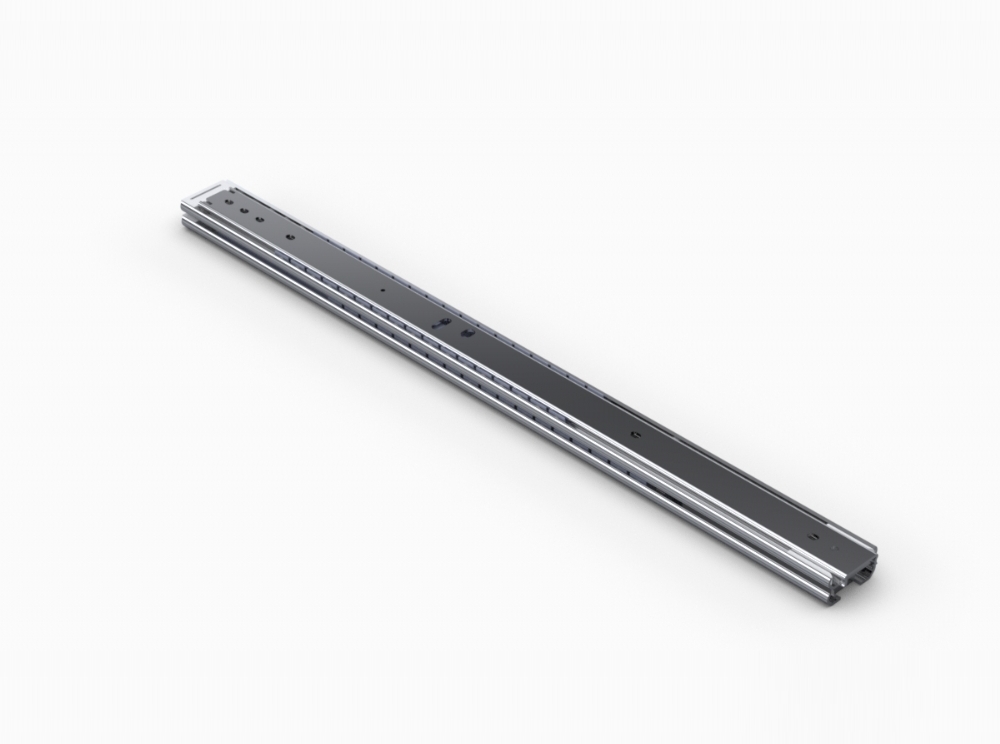

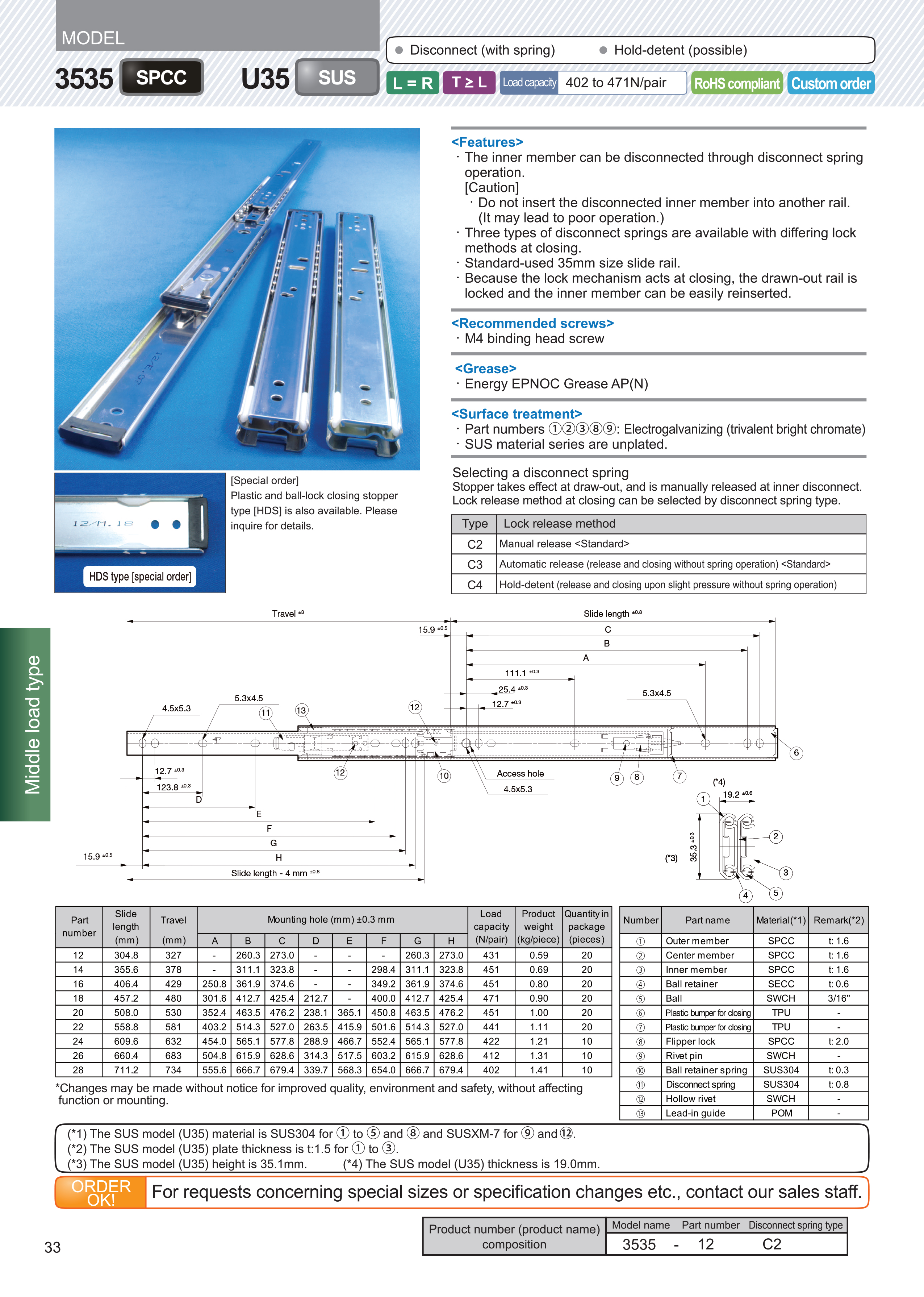

SPCC SUS中負載 完全行程滾珠滑軌 (內軌可拆)
滑軌長度：300~700mm
滑軌荷重：40~50kg
彈片設計，內軌全展開可固定及拆卸
序列設計使內軌收合順暢
可簡易閉合固定
- 滑軌長度：300~700mm
- 滑軌荷重：40~50kg
- 彈片設計，內軌全展開可固定及拆卸
- 序列設計使內軌收合順暢
- 可簡易閉合固定
| Part number |
Slide length |

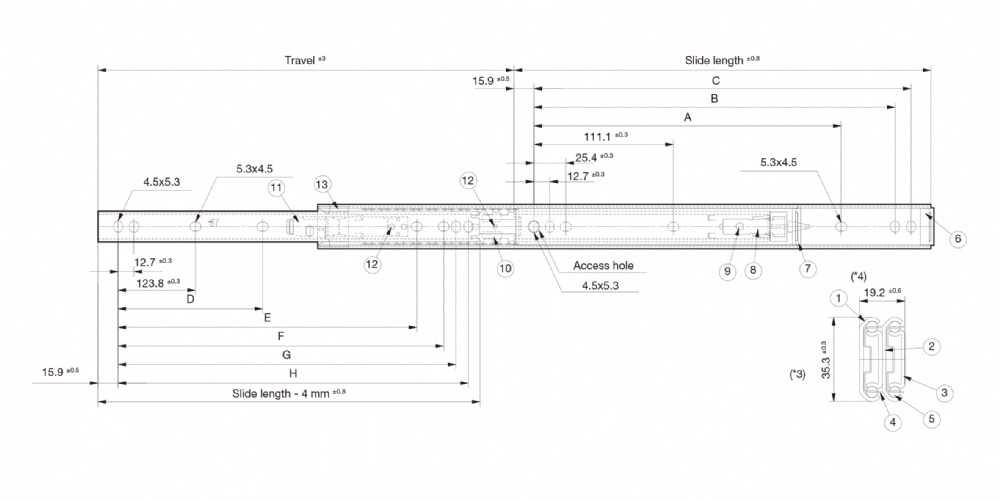

Travel | Mounting hole (mm) ±0.3 mm | Load capacity (N/pair) |
Product weight (kg/piece) |
Quantity in package (pieces) |
|||||||
| (mm) | (mm) | A | B | C | D | E | F | G | H | ||||
| 12(A) | 304.8 | 327 | - | 260.3 | 273.0 | - | - | - | 260.3 | 273.0 | 431 | 0.59 | 20 |
| 14(A) | 355.6 | 378 | - | 311.1 | 323.8 | - | - | 298.4 | 311.1 | 323.8 | 451 | 0.69 | 20 |
| 16(A) | 406.4 | 429 | 250.8 | 361.9 | 374.6 | - | - | 349.2 | 361.9 | 374.6 | 451 | 0.80 | 20 |
| 18(A) | 457.2 | 480 | 301.6 | 412.7 | 425.4 | 212.7 | - | 400.0 | 412.7 | 425.4 | 471 | 0.90 | 20 |
| 20(A) | 508.0 | 530 | 352.4 | 463.5 | 476.2 | 238.1 | 365.1 | 450.8 | 463.5 | 476.2 | 451 | 1.00 | 20 |
| 22(A) | 558.8 | 581 | 403.2 | 514.3 | 527.0 | 263.5 | 415.9 | 501.6 | 514.3 | 527.0 | 441 | 1.11 | 20 |
| 24(A) | 609.6 | 632 | 454.0 | 565.1 | 577.8 | 288.9 | 466.7 | 552.4 | 565.1 | 577.8 | 422 | 1.21 | 10 |
| 26(A) | 660.4 | 683 | 504.8 | 615.9 | 628.6 | 314.3 | 517.5 | 603.2 | 615.9 | 628.6 | 412 | 1.31 | 10 |
| 28(A) | 711.2 | 734 | 555.6 | 666.7 | 679.4 | 339.7 | 568.3 | 654.0 | 666.7 | 679.4 | 402 | 1.41 | 10 |
