3531 / U31

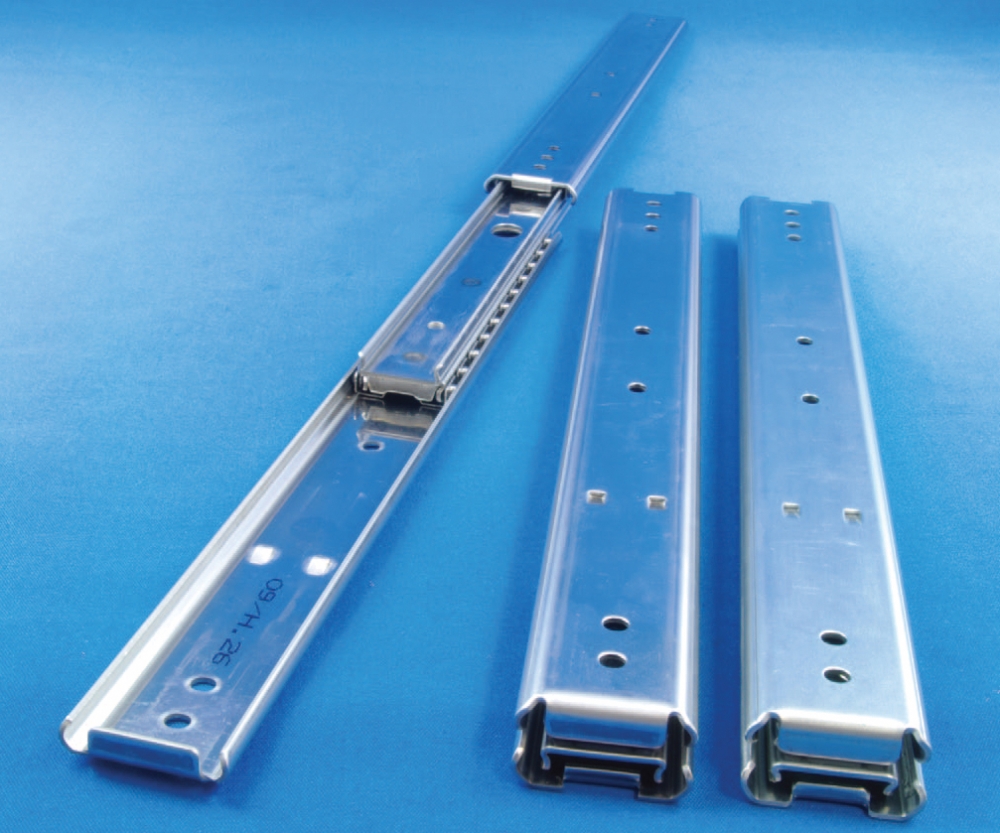

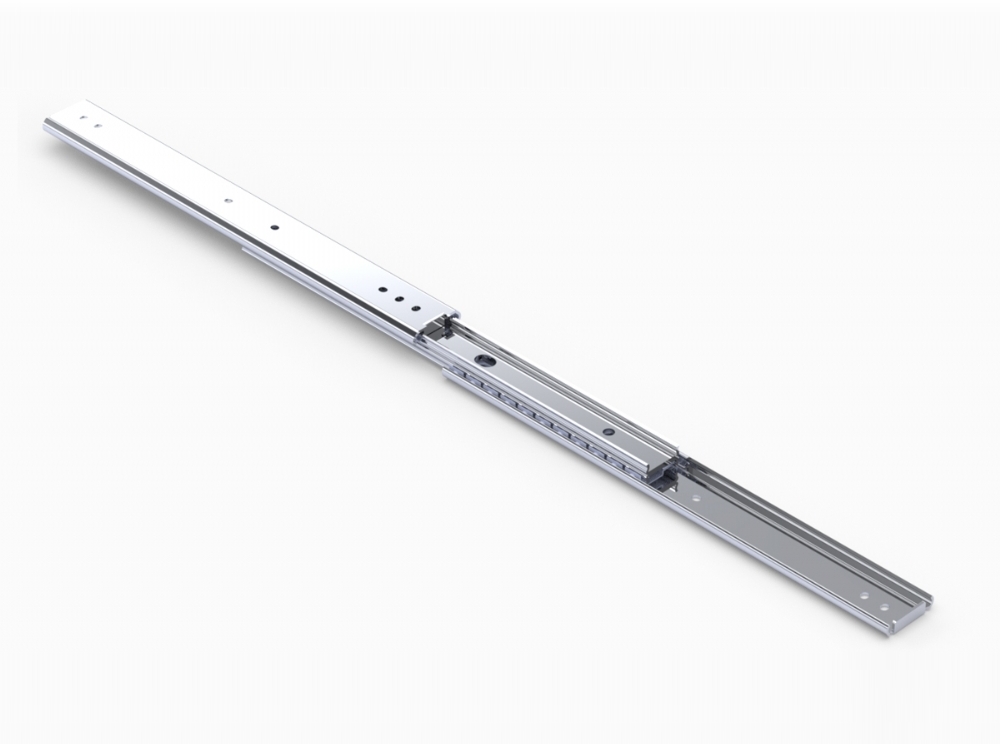

SPCC SUS中負載 完全行程滾珠滑軌
滑軌長度：300~700mm
滑軌荷重：40~50kg
標準35mm寬工業用滾珠滑軌
三節滑軌
- 滑軌長度：300~700mm
- 滑軌荷重：40~50kg
- 標準35mm寬工業用滾珠滑軌
- 三節滑軌

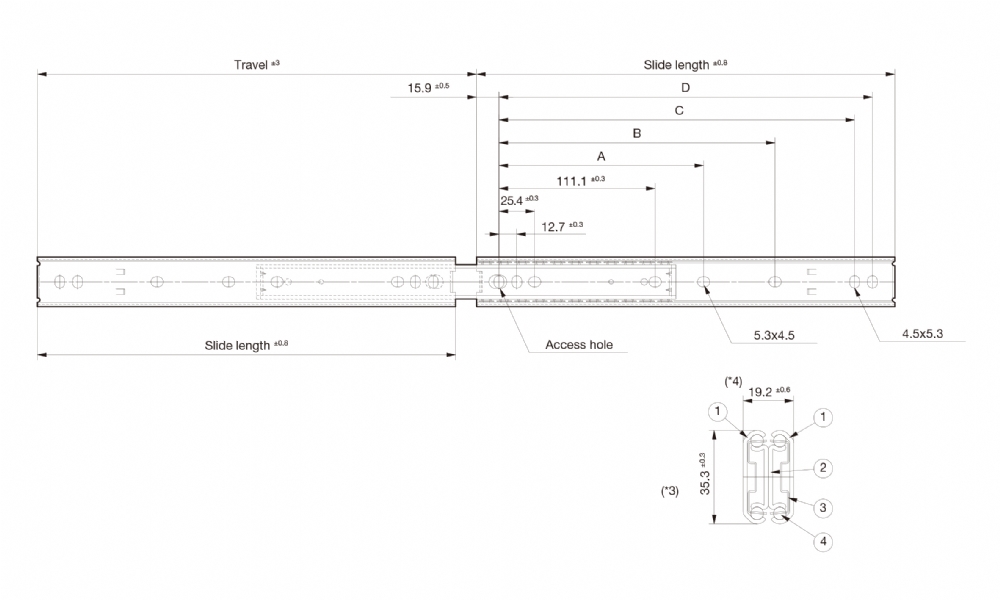

| Part number |
Slide length |
Travel | Mounting hole (mm) ±0.3 mm | Load capacity (N/pair) |
Product weight (kg/piece) |
Quantity in package (pieces) |
|||
| (mm) | (mm) | A | B | C | D | ||||
| 12 | 304.8 | 326 | - | 149.2 | 260.3 | 273.0 | 431 | 0.63 | 20 |
| 14 | 355.6 | 377 | - | 200.0 | 311.1 | 323.8 | 451 | 0.75 | 20 |
| 16 | 406.4 | 428 | - | 250.8 | 361.9 | 374.6 | 451 | 0.85 | 20 |
| 18 | 457.2 | 479 | 212.7 | 301.6 | 412.7 | 425.4 | 471 | 0.96 | 20 |
| 20 | 508.0 | 529 | 238.1 | 352.4 | 463.5 | 476.2 | 451 | 1.07 | 20 |
| 22 | 558.8 | 580 | 263.5 | 403.2 | 514.3 | 527.0 | 441 | 1.18 | 20 |
| 24 | 609.6 | 631 | 288.9 | 454.0 | 565.1 | 577.8 | 422 | 1.28 | 10 |
| 26 | 660.4 | 682 | 314.3 | 504.8 | 615.9 | 628.6 | 412 | 1.41 | 10 |
| 28 | 711.2 | 732 | 339.7 | 555.6 | 666.7 | 679.4 | 402 | 1.50 | 10 |
