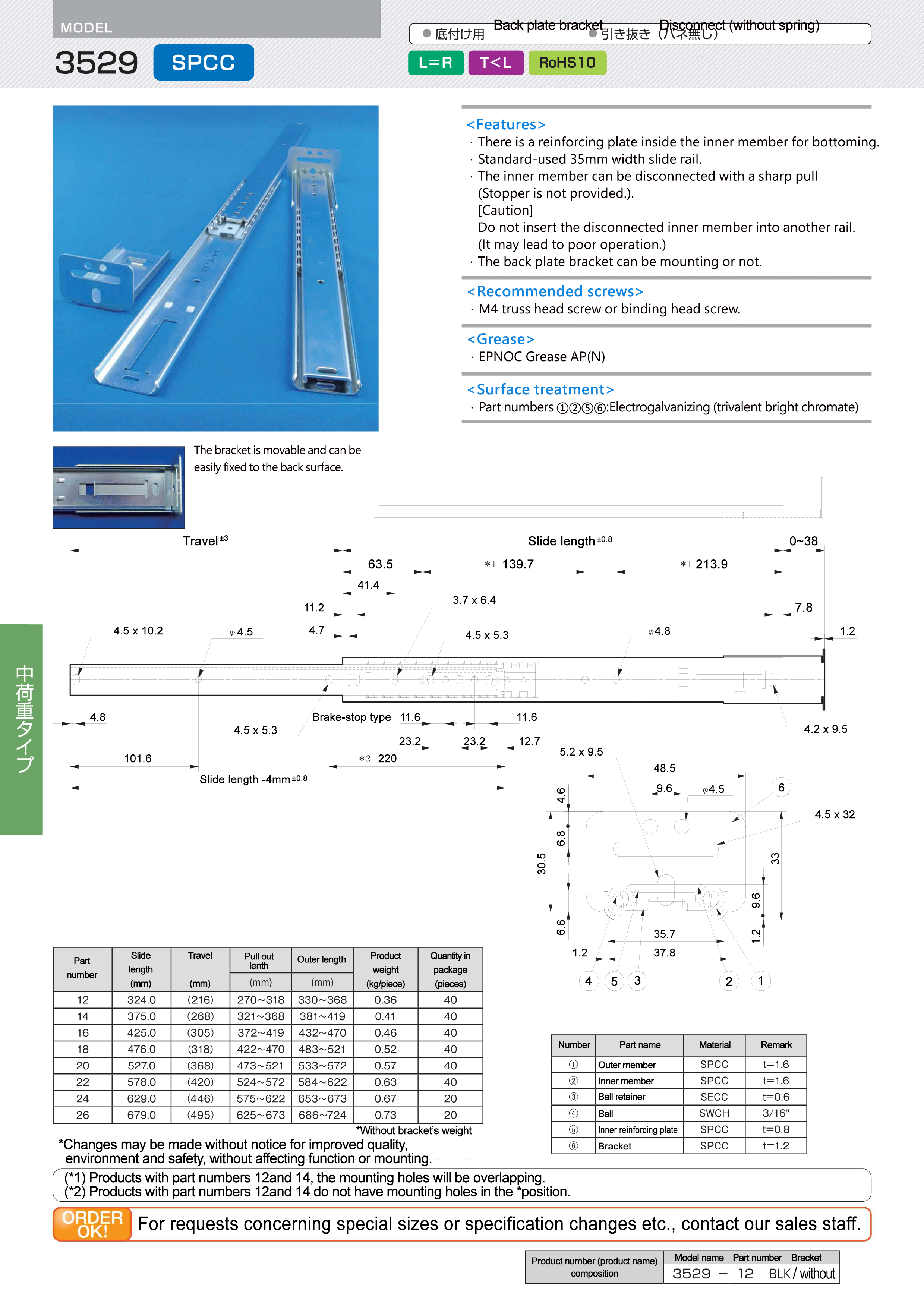

3529

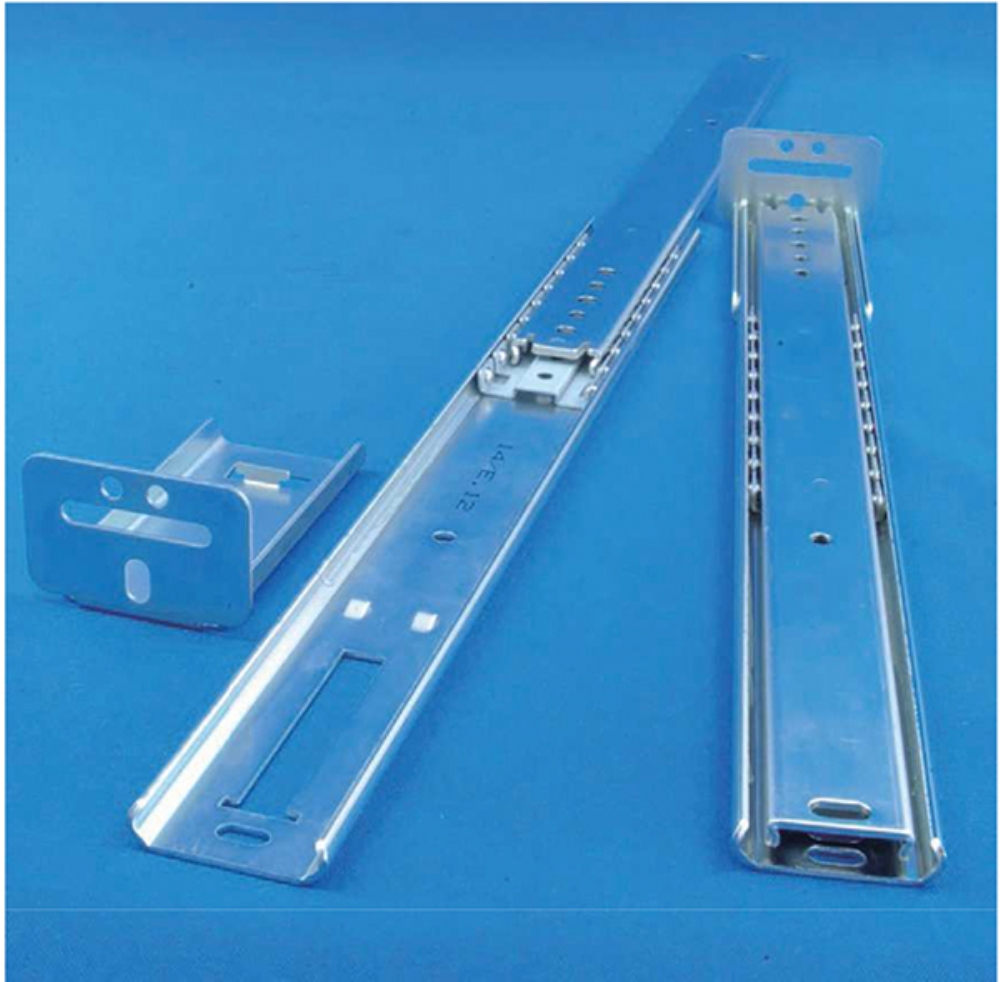

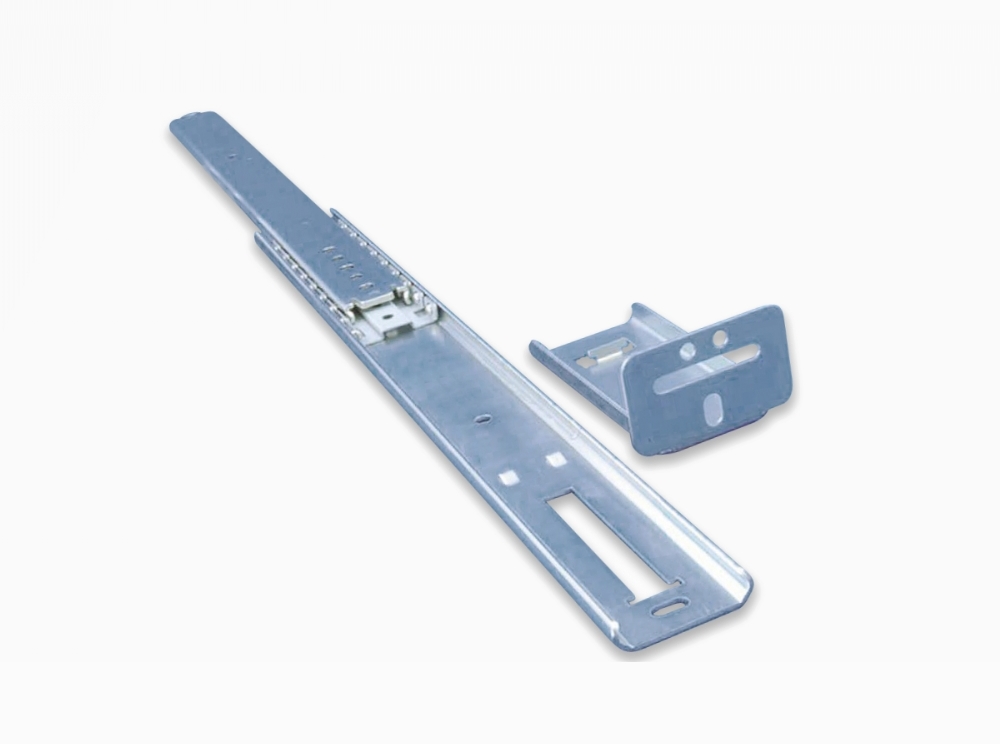

中負載 3/4行程滾珠滑軌 (底板)
滑軌長度：約300~700mm
標準35mm寬工業用滾珠滑軌
- 滑軌長度：約300~700mm
- 標準35mm寬工業用滾珠滑軌

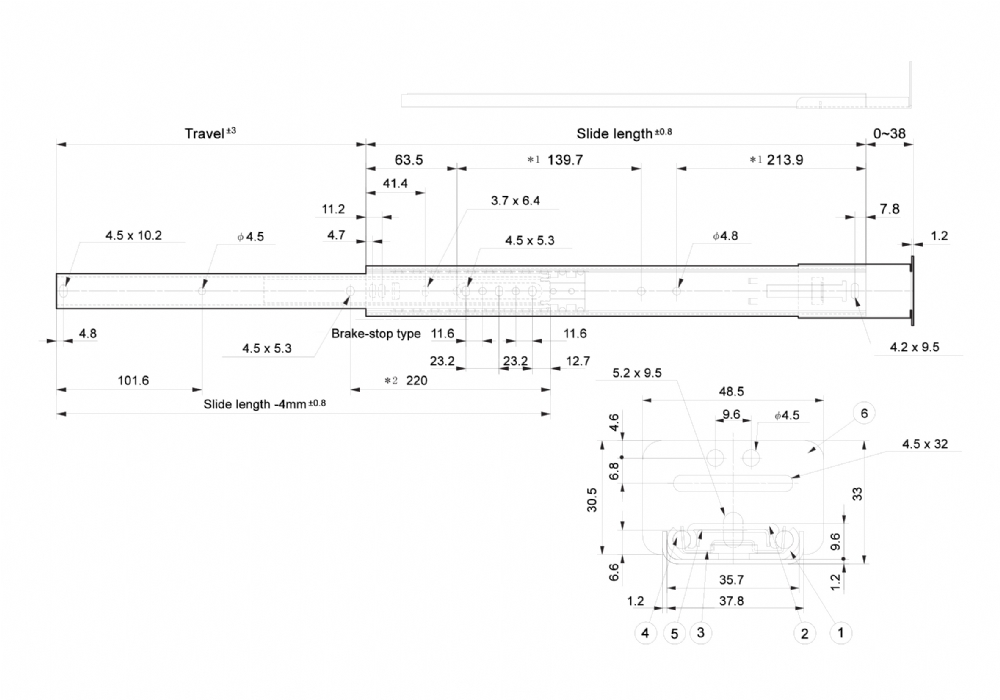

| Part number |
Slide length |
Travel | Pull out lenth |
Out lenth | Product weight (kg/piece) |
Quantity in package (pieces) |
| (mm) | (mm) | (mm) | (mm) | |||
| 12 | 324.0 | (216) | 270~318 | 330~368 | 0.36 | 40 |
| 14 | 375.0 | (268) | 321~368 | 381~419 | 0.41 | 40 |
| 16 | 425.0 | (305) | 372~419 | 432~470 | 0.46 | 40 |
| 18 | 476.0 | (318) | 422~470 | 483~521 | 0.52 | 40 |
| 20 | 527.0 | (368) | 473~521 | 533~572 | 0.57 | 40 |
| 22 | 578.0 | (420) | 524~572 | 584~622 | 0.63 | 40 |
| 24 | 629.0 | (446) | 575~622 | 653~673 | 0.67 | 20 |
| 26 | 679.0 | (495) | 625~673 | 686~724 | 0.73 | 20 |
