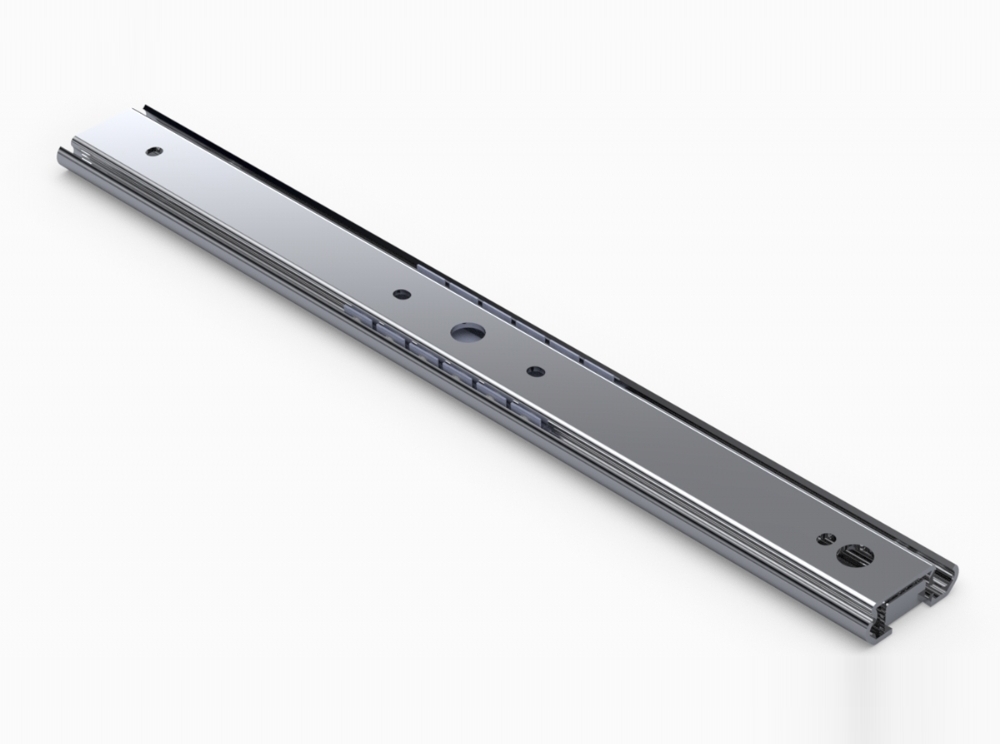

中負載 3/4行程滾珠滑軌 (內軌可拆)
滑軌長度：300~700mm
滑軌荷重：30~45kg
35mm工業用滾珠滑軌
彈片設計內軌可拆卸
- 滑軌長度：300~700mm
- 滑軌荷重：30~45kg
- 35mm工業用滾珠滑軌
- 彈片設計內軌可拆卸

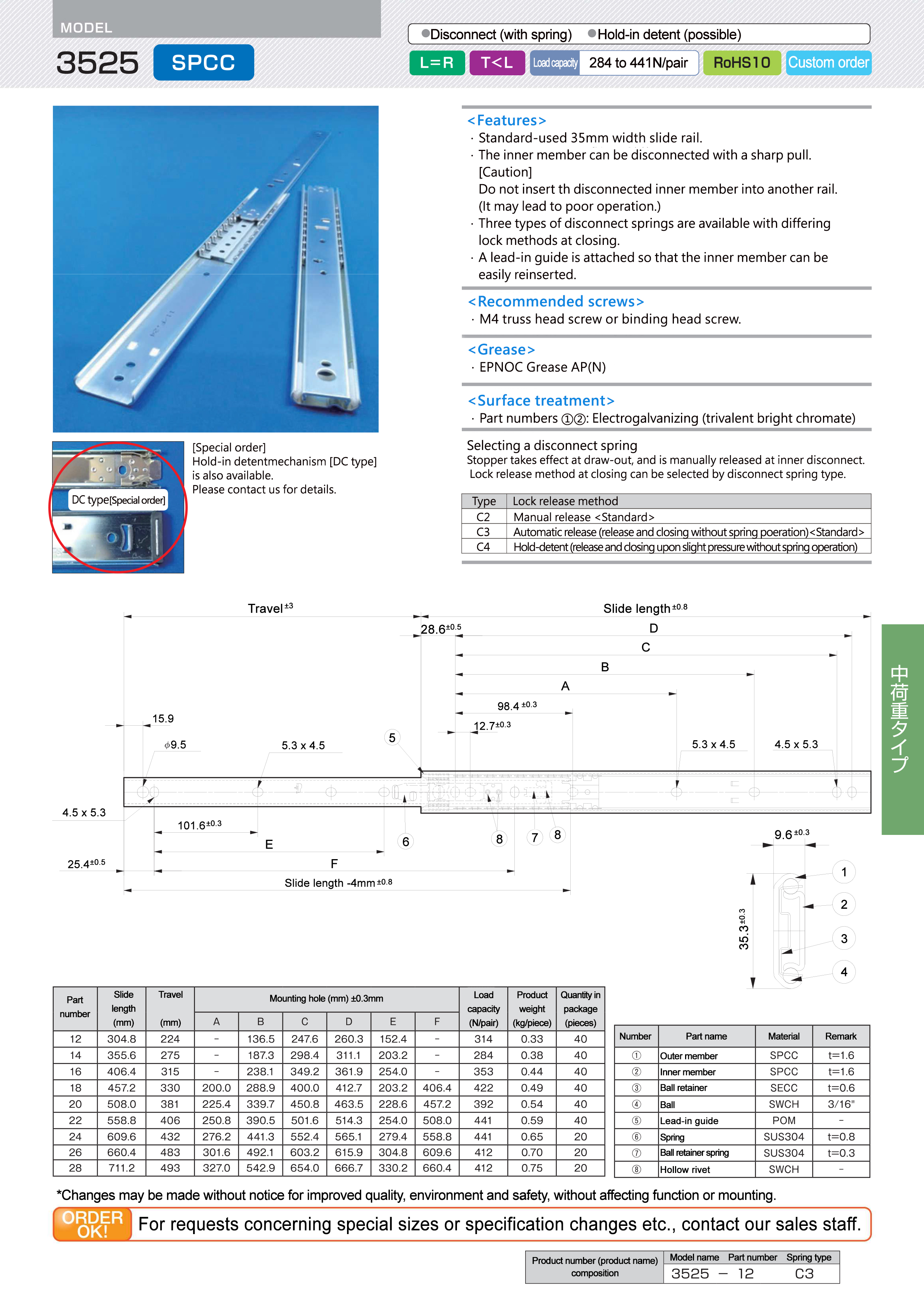

| Part number |
Slide length |
Travel | Mounting hole (mm) ±0.3 mm | Load capacity (N/pair) |
Product weight (kg/piece) |
Quantity in package (pieces) |
||||||

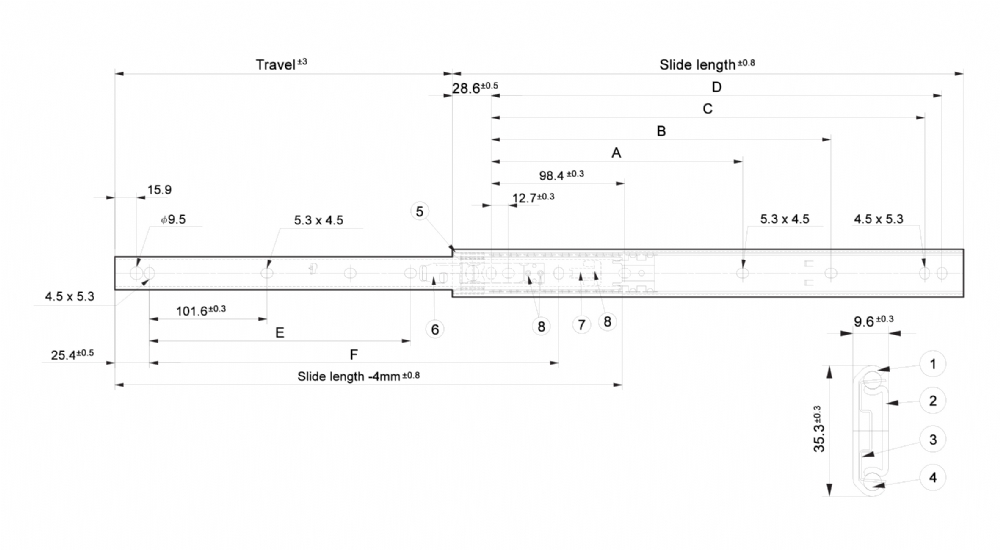

| (mm) | (mm) | A | B | C | D | E | F | G | ||||
| 12A | 304.8 | 227 | - | 149.2 | 260.3 | 273.0 | - | 152.4 | 254.0 | 314 | 0.33 | 40 |
| 14A | 355.6 | 278 | - | 200.0 | 311.1 | 323.8 | - | 203.2 | 304.8 | 284 | 0.38 | 40 |
| 16A | 406.4 | 303 | - | 250.8 | 361.9 | 374.6 | - | 254.0 | 355.6 | 353 | 0.44 | 40 |
| 18A | 457.2 | 328 | 212.7 | 301.6 | 412.7 | 425.4 | 203.2 | 304.8 | 406.4 | 422 | 0.49 | 40 |
| 20A | 508.0 | 379 | 238.1 | 352.4 | 463.5 | 476.2 | 228.6 | 355.6 | 457.2 | 392 | 0.54 | 40 |
| 22A | 558.8 | 405 | 263.5 | 403.2 | 514.3 | 527.0 | 254.0 | 406.4 | 508.0 | 441 | 0.59 | 40 |
| 24A | 609.6 | 430 | 288.9 | 454.0 | 565.1 | 577.8 | 279.4 | 457.2 | 558.8 | 441 | 0.65 | 20 |
| 26A | 660.4 | 481 | 314.3 | 504.8 | 615.9 | 628.6 | 304.8 | 508.0 | 609.6 | 412 | 0.70 | 20 |
| 28A | 711.2 | 506 | 339.7 | 555.6 | 666.7 | 679.4 | 330.2 | 558.8 | 660.4 | 412 | 0.75 | 20 |
