C358

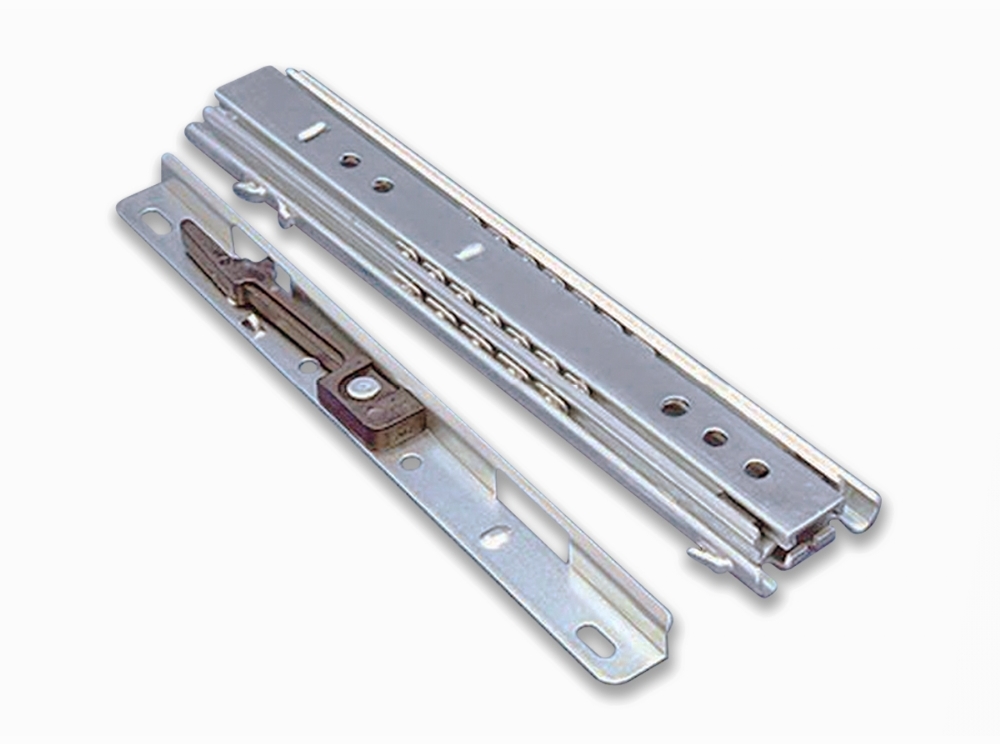

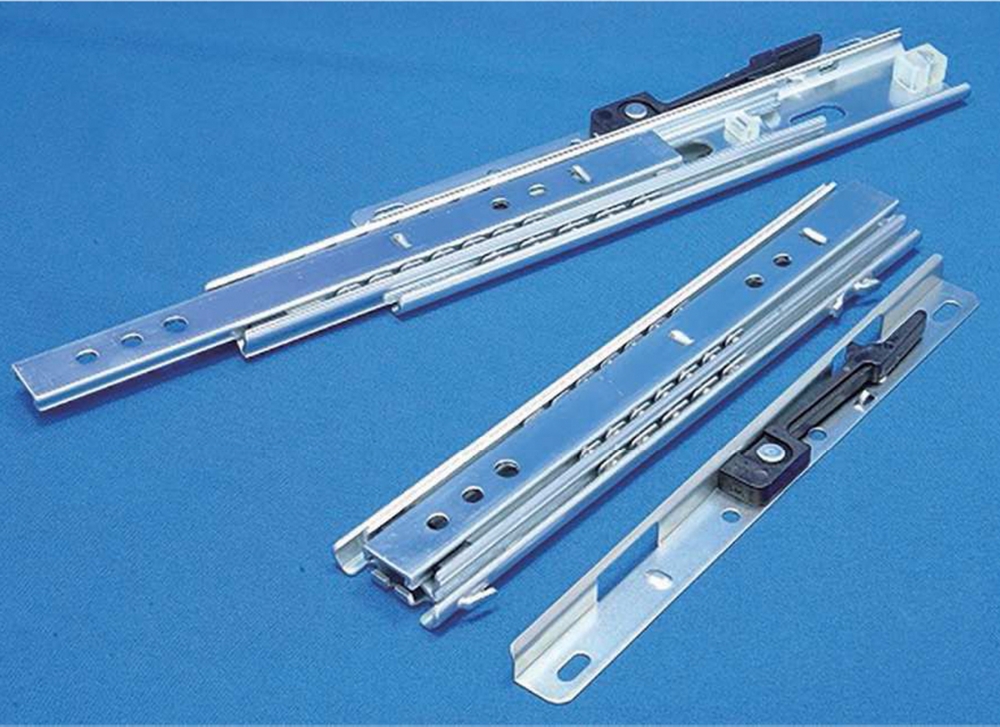

中負載 薄型完全行程滾珠滑軌 (可拆零件/消音)
滑軌長度：200~500mm
滑軌荷重：35kg
薄型35mm寬工業用滾珠滑軌，厚度13mm
L型零件設計，簡易拆裝功能
附可拆式收納緩衝墊(消音)
- 滑軌長度：200~500mm
- 滑軌荷重：35kg
- 薄型35mm寬工業用滾珠滑軌，厚度13mm
- L型零件設計，簡易拆裝功能
- 附可拆式收納緩衝墊(消音)

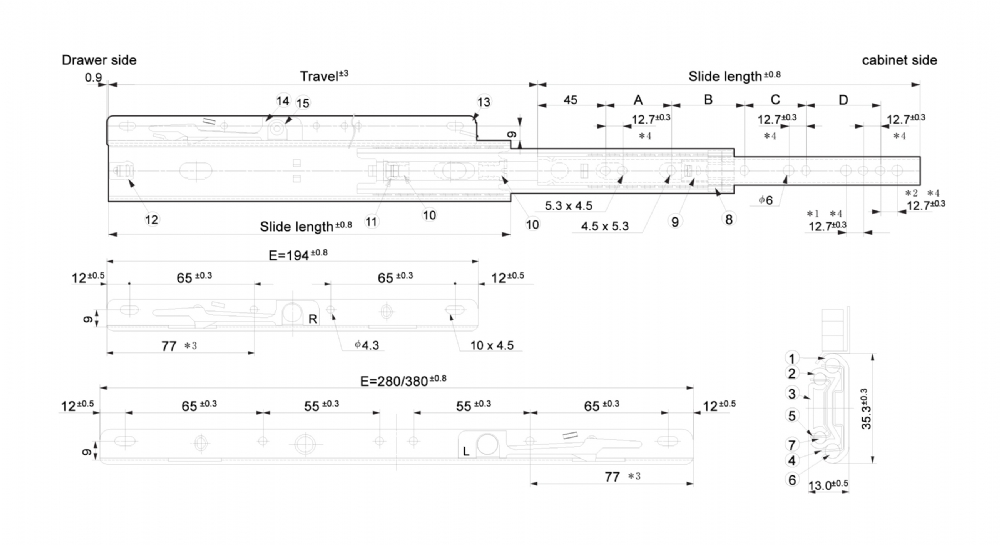

| Part number |
Slide length |
Travel | Mounting hole (mm) ±0.3 mm | L shape bracket | Load capacity (N/pair) |
Product weight (kg/piece) |
Quantity in package (pieces) |
|||
| (mm) | (mm) | A | B | C | D | (mm) | ||||
| 8 | 203.2 | 202 | - | - | - | 140.0 | 194.0 | 294 | 0.32 | 10pr |
| 10 | 254.0 | 271 | - | - | 120.0 | 70.0 | 324 | 0.39 | 10pr | |
| 12 | 304.8 | 327 | - | - | 150.0 | 70.0 | 280.0 | 333 | 0.48 | 10pr |
| 14 | 355.6 | 373 | - | 80.0 | 100.0 | 100.0 | 343 | 0.56 | 10pr | |
| 16 | 406.4 | 432 | - | 80.0 | 120.0 | 120.0 | 380.0 | 333 | 0.65 | 10pr |
| 18 | 457.2 | 478 | - | 100.0 | 140.0 | 140.0 | 333 | 0.73 | 10pr | |
| 20 | 508.0 | 537 | 80.0 | 115.0 | 110.0 | 120.0 | 324 | 0.81 | 10pr | |
