C357
中負載 薄型完全行程滾珠滑軌 (內軌可拆/簡易保持)
滑軌長度：200~600mm
滑軌荷重：35kg

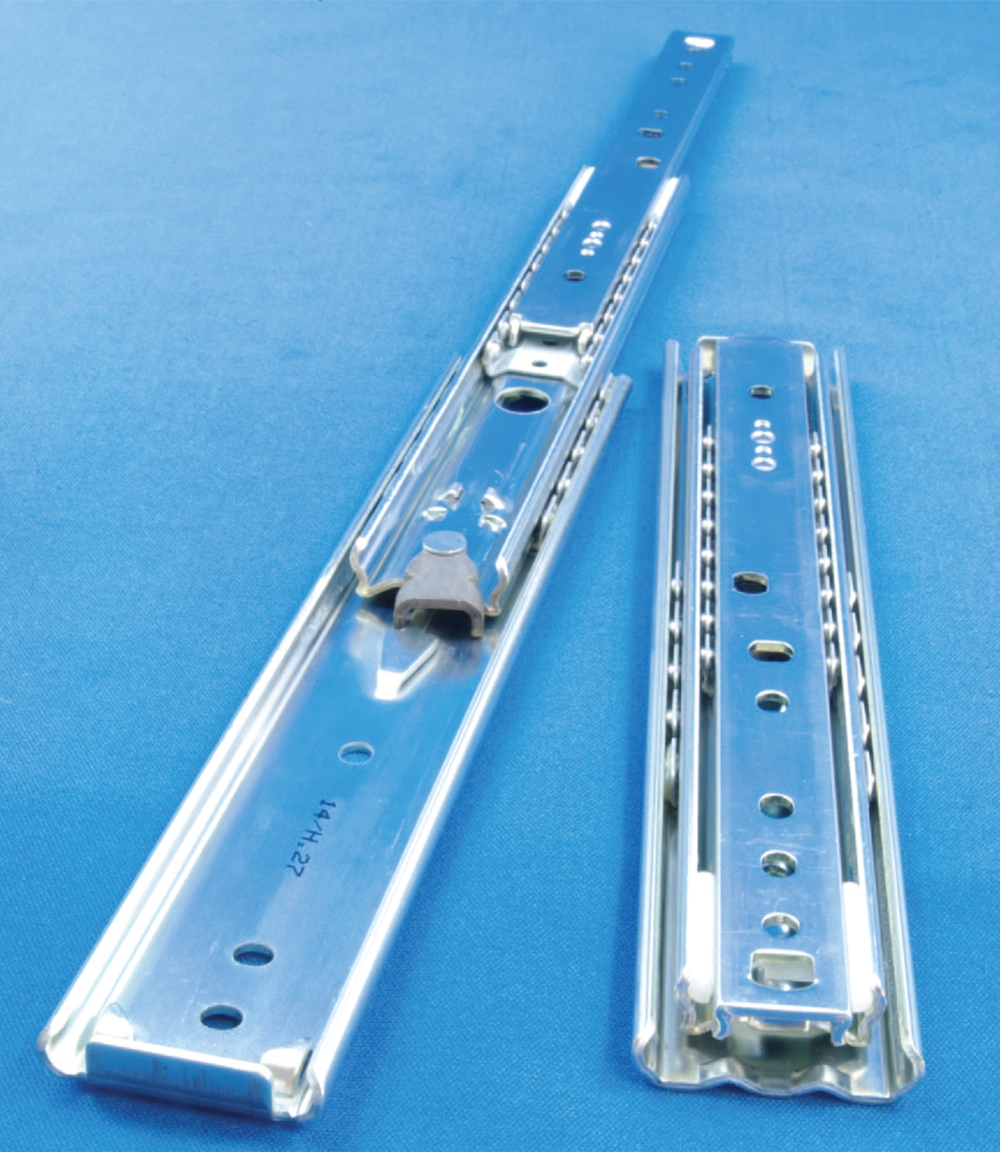

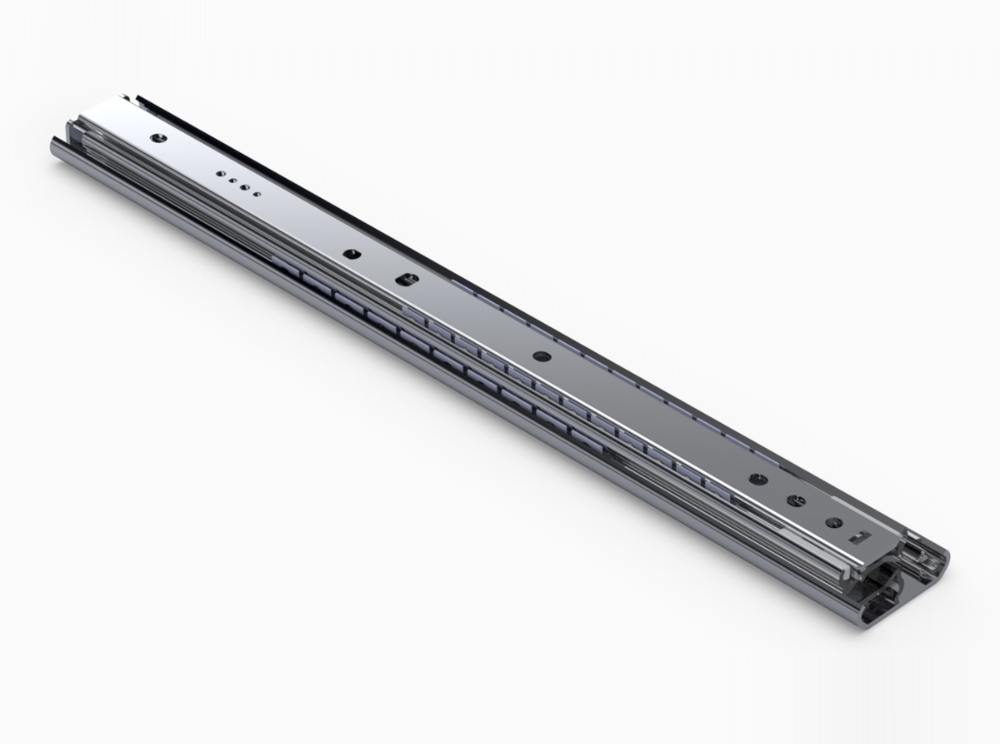

薄型35mm寬工業用滾珠滑軌，厚度13mm
內軌可抽出(無彈片)
序列機構增加負載能力
- 滑軌長度：200~600mm
- 滑軌荷重：35kg
- 薄型35mm寬工業用滾珠滑軌，厚度13mm
- 內軌可抽出(無彈片)
- 序列機構增加負載能力

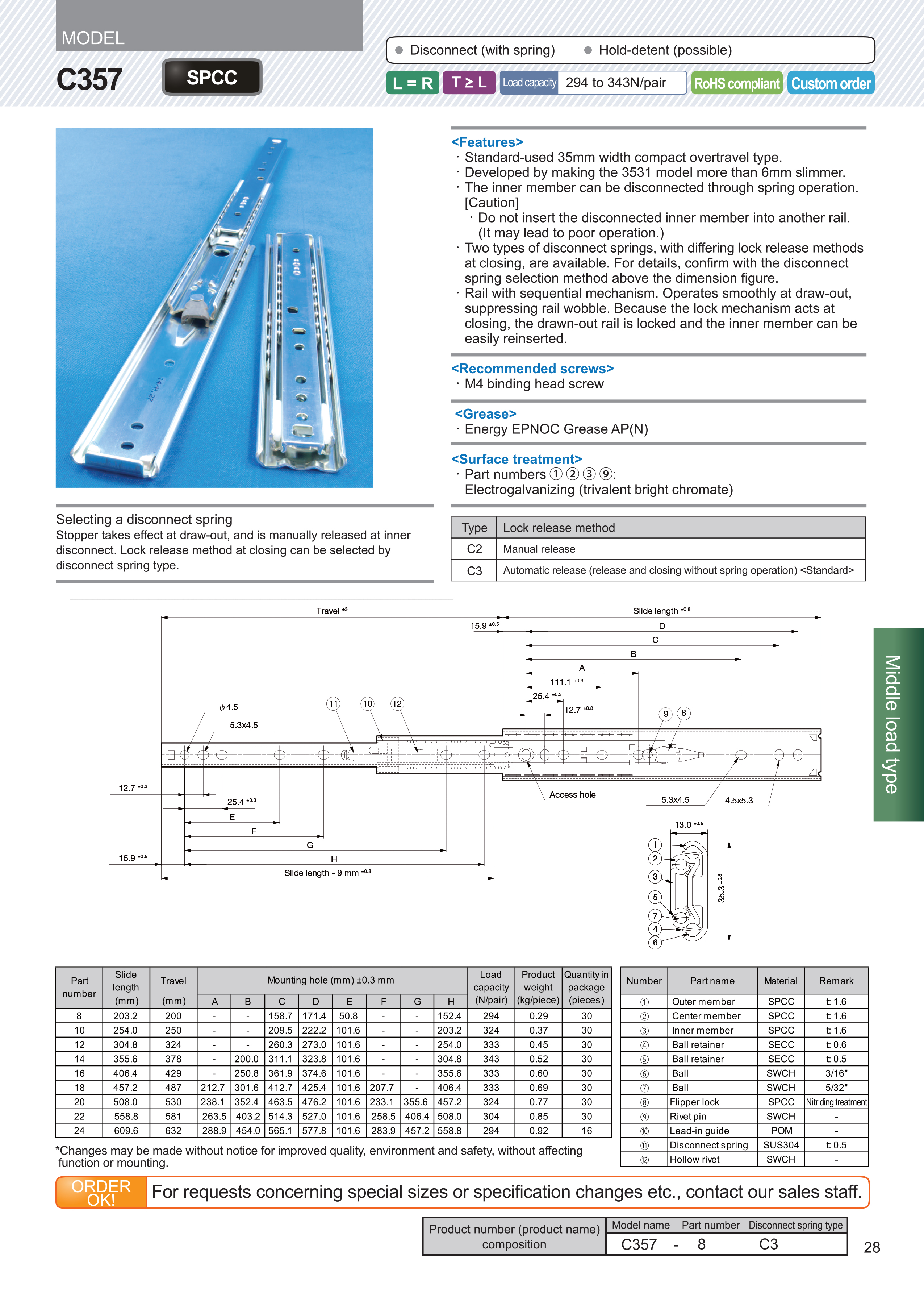

| Part number |
Slide length |
Travel | Mounting hole (mm) ±0.3 mm | Load capacity (N/pair) |
Product weight (kg/piece) |
Quantity in package (pieces) |
|||||||
| (mm) | (mm) | A | B | C | D | E | F | G | H | ||||
| 8 | 203.2 | 200 | - | - | 158.7 | 171.4 | 50.8 | - | - | 152.4 | 294 | 0.29 | 30 |
| 10 | 254.0 | 250 | - | - | 209.5 | 222.2 | 101.6 | - | - | 203.2 | 324 | 0.37 | 30 |
| 12 | 304.8 | 324 | - | - | 260.3 | 273.0 | 101.6 | - | - | 254.0 | 333 | 0.45 | 30 |
| 14 | 355.6 | 378 | - | 200.0 | 311.1 | 323.8 | 101.6 | - | - | 304.8 | 343 | 0.52 | 30 |
| 16 | 406.4 | 429 | - | 250.8 | 361.9 | 374.6 | 101.6 | - | - | 355.6 | 333 | 0.60 | 30 |
| 18 | 457.2 | 487 | 212.7 | 301.6 | 412.7 | 425.4 | 101.6 | 207.7 | - | 406.4 | 333 | 0.69 | 30 |
| 20 | 508.0 | 530 | 238.1 | 352.4 | 463.5 | 476.2 | 101.6 | 233.1 | 355.6 | 457.2 | 324 | 0.77 | 30 |
| 22 | 558.8 | 581 | 263.5 | 403.2 | 514.3 | 527.0 | 101.6 | 258.5 | 406.4 | 508.0 | 304 | 0.85 | 30 |
| 24 | 609.6 | 632 | 288.9 | 454.0 | 565.1 | 577.8 | 101.6 | 283.9 | 457.2 | 558.8 | 294 | 0.92 | 16 |
