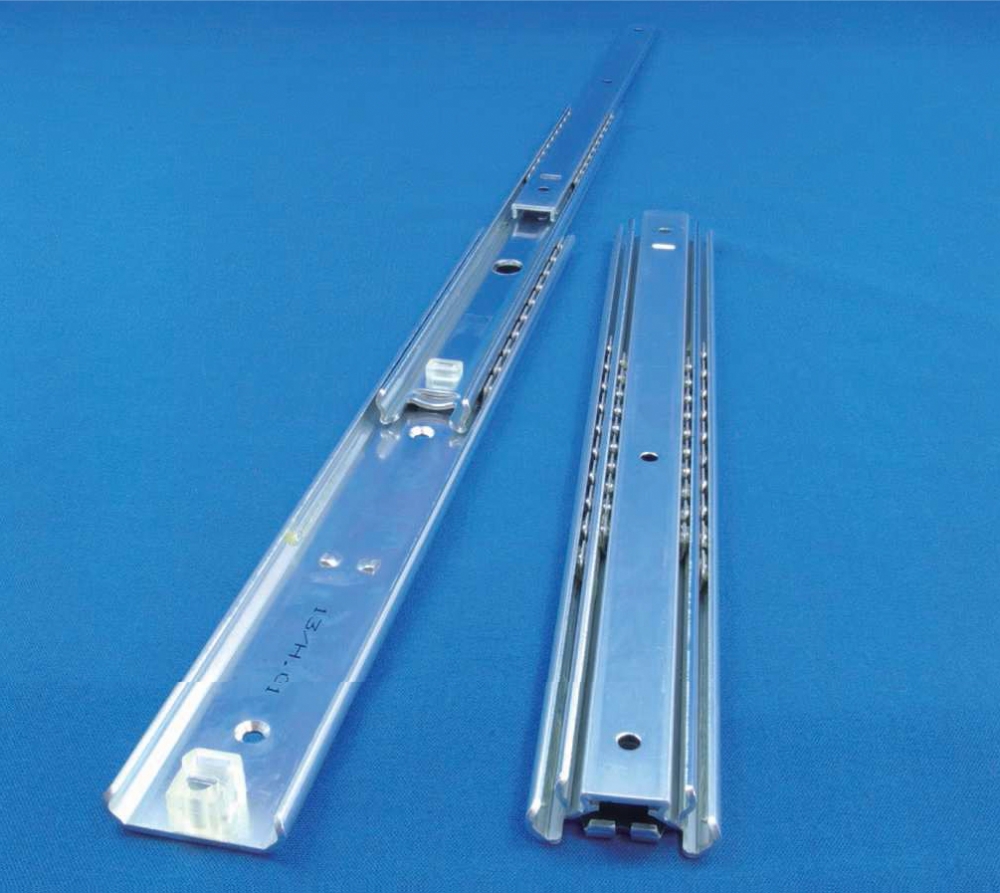

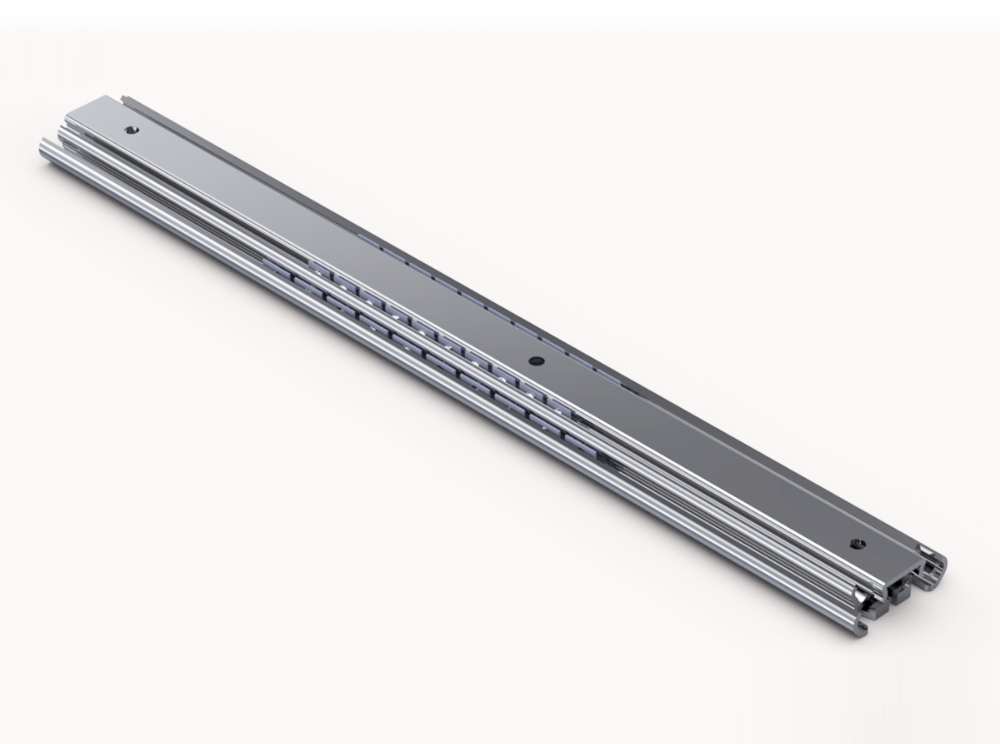

C351
中負載 薄型完全行程滾珠滑軌 (消音 / 收納保持)
滑軌長度：200~600mm
滑軌荷重：35kg
薄型35mm寬工業用滾珠滑軌，厚度13mm
消音塊設計降低開闔時碰撞聲
附可拆式收納緩衝墊
- 滑軌長度：200~600mm
- 滑軌荷重：35kg
- 薄型35mm寬工業用滾珠滑軌，寬度13mm
- 消音塊設計降低開闔時碰撞聲
- 附可拆式收納緩衝墊

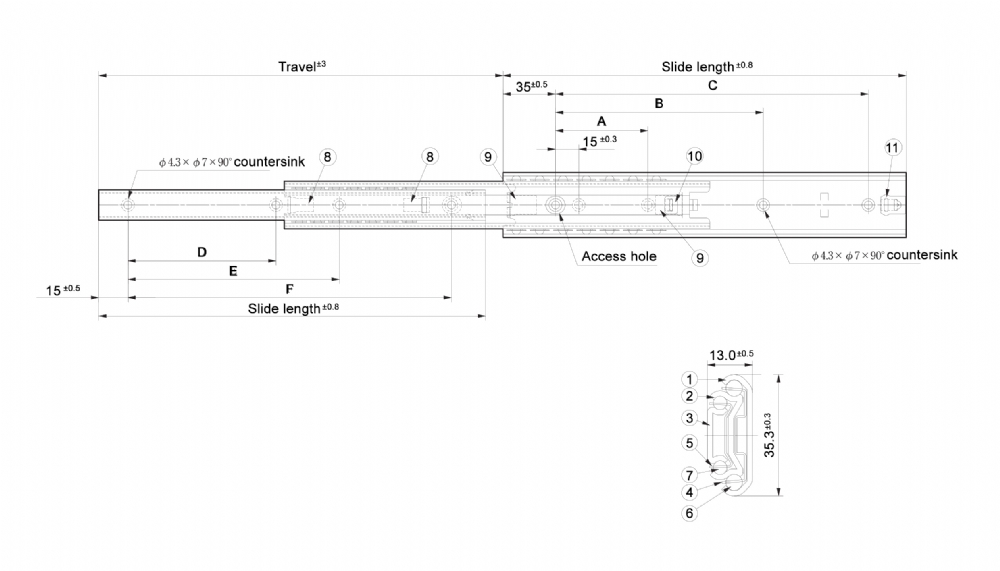

| Part number |
Slide length |
Travel | Mounting hole (mm) ±0.3 mm | Load capacity (N/pair) |
Product weight (kg/piece) |
Quantity in package (pieces) |
|||||
| (mm) | (mm) | A | B | C | D | E | F | ||||
| 12 | 304.8 | 316 | 110.0 | - | 240.0 | 110.0 | - | 270.0 | 333 | 0.45 | 30 |
| 14 | 355.6 | 366 | 110.0 | 180.0 | 290.0 | 110.0 | 210.0 | 320.0 | 343 | 0.53 | 30 |
| 16 | 406.4 | 416 | 110.0 | 230.0 | 340.0 | 110.0 | 260.0 | 370.0 | 333 | 0.60 | 30 |
| 18 | 457.2 | 466 | 150.0 | 240.0 | 390.0 | 150.0 | 270.0 | 420.0 | 333 | 0.68 | 30 |
| 20 | 508.0 | 516 | 150.0 | 290.0 | 440.0 | 150.0 | 320.0 | 470.0 | 323 | 0.76 | 30 |
| 22 | 558.8 | 576 | 180.0 | 310.0 | 490.0 | 180.0 | 330.0 | 530.0 | 304 | 0.84 | 30 |
| 24 | 609.6 | 626 | 180.0 | 360.0 | 540.0 | 180.0 | 380.0 | 580.0 | 294 | 0.92 | 16 |
