2031

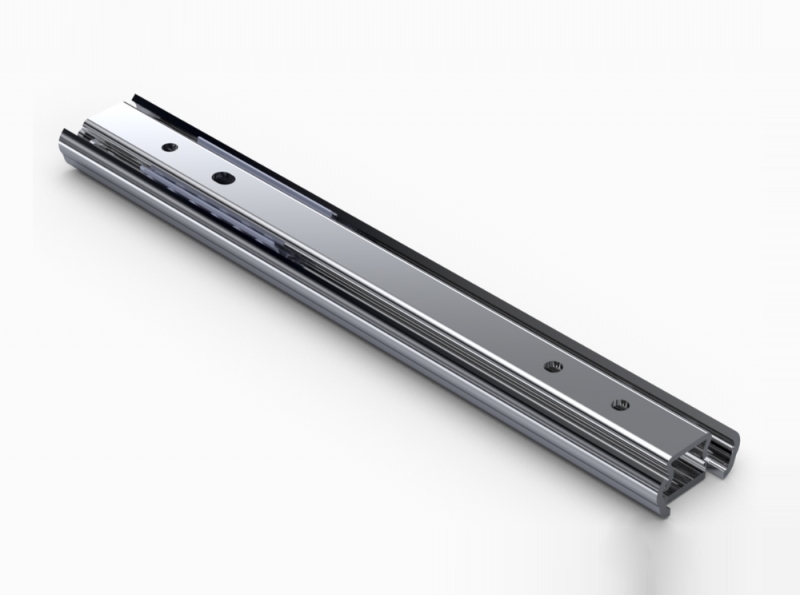

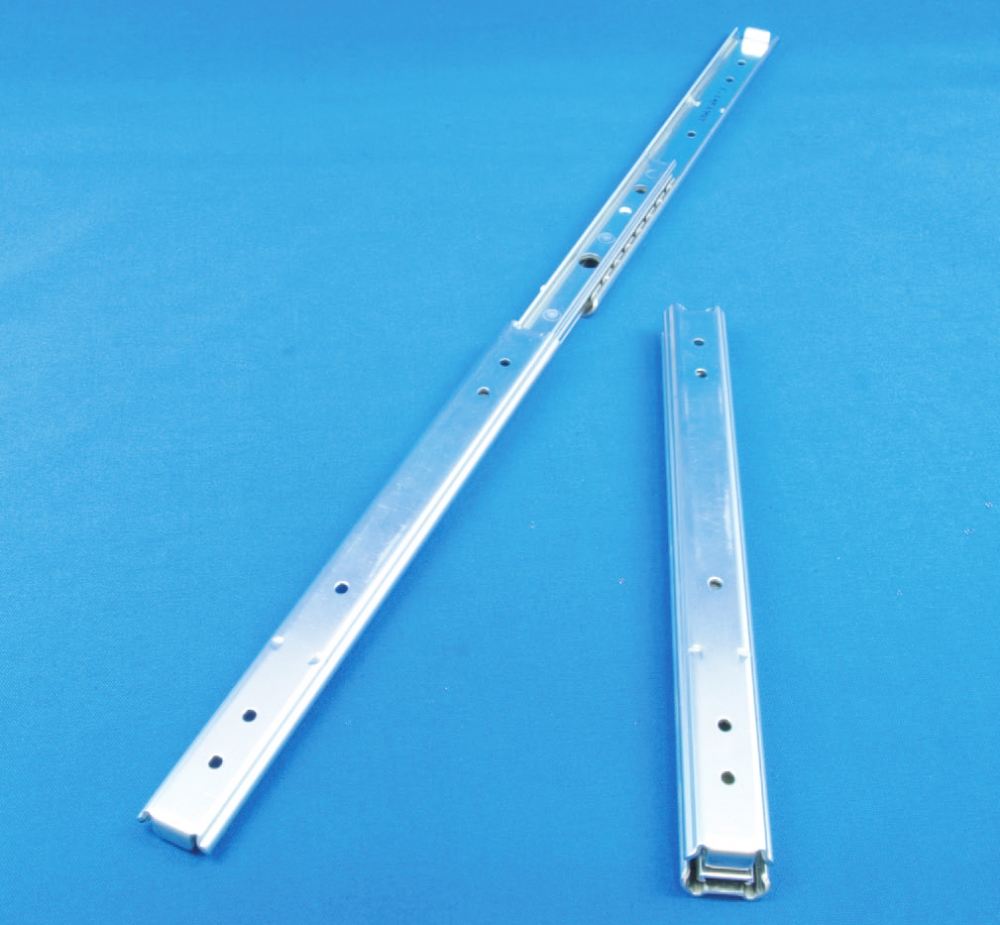

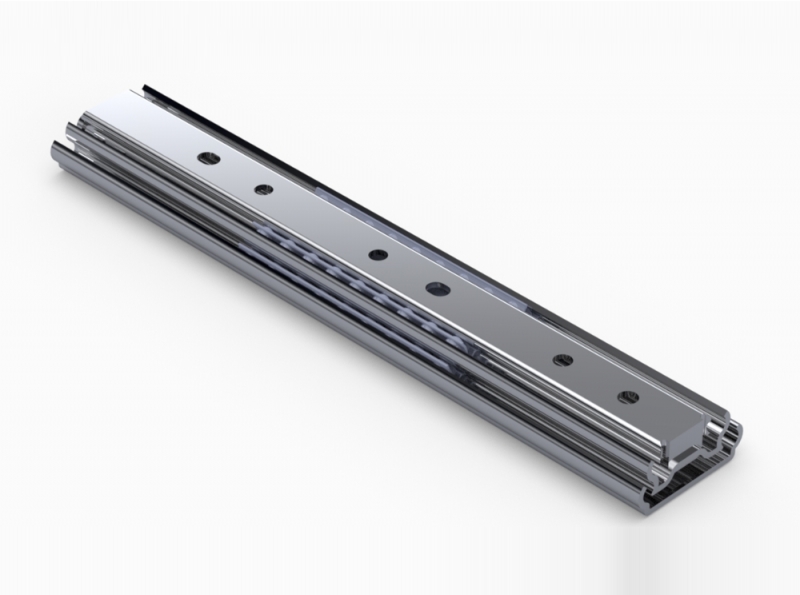

輕負載 完全行程滾珠滑軌
滑軌長度：150~550mm
滑軌荷重：10~15kg
SPCC最小寬度，20mm精密滾珠滑軌
- 滑軌長度：150~550mm
- 滑軌荷重：10~15kg
- SPCC最小寬度，20mm精密滾珠滑軌

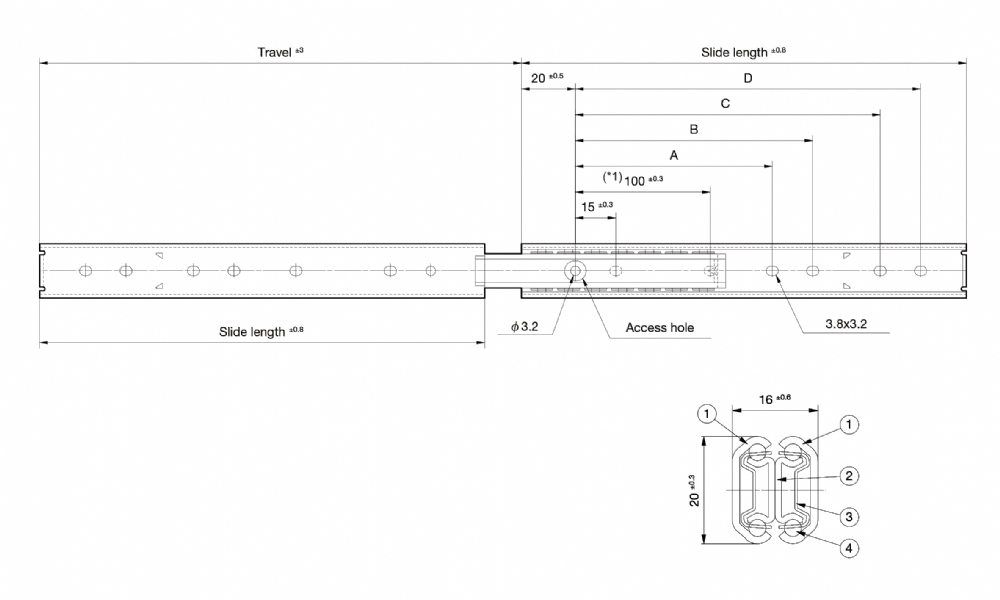

| Part number |
Slide length |
Travel | Mounting hole (mm) ±0.3 mm | Load capacity (N/pair) |
Product weight (kg/piece) |
Quantity in package (pieces) |
|||
| (mm) | (mm) | A | B | C | D | ||||
| 200 | 200 | 229 | - | - | 145.0 | 160.0 | 147 | 0.20 | 36 |
| 250 | 250 | 269 | - | - | 194.0 | 210.0 | 147 | 0.26 | 36 |
| 300 | 300 | 329 | - | 160.0 | 245.0 | 260.0 | 147 | 0.31 | 36 |
| 350 | 350 | 369 | - | 210.0 | 295.0 | 310.0 | 147 | 0.37 | 36 |
| 400 | 400 | 429 | - | 260.0 | 345.0 | 360.0 | 98 | 0.42 | 36 |
| 450 | 450 | 469 | 205.0 | 310.0 | 395.0 | 410.0 | 98 | 0.48 | 36 |
| 500 | 500 | 529 | 230.0 | 360.0 | 445.0 | 460.0 | 98 | 0.53 | 36 |
| 550 | 550 | 569 | 255.0 | 410.0 | 495.0 | 510.0 | 98 | 0.60 | 36 |
