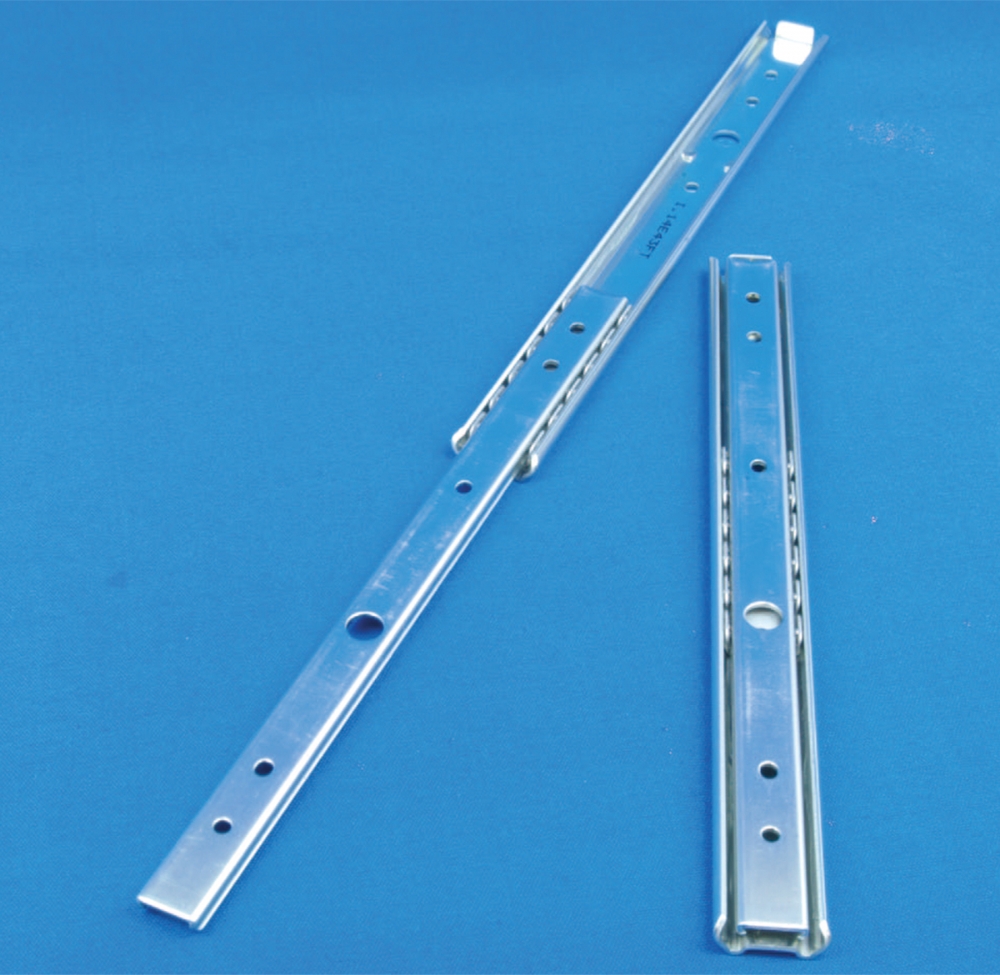

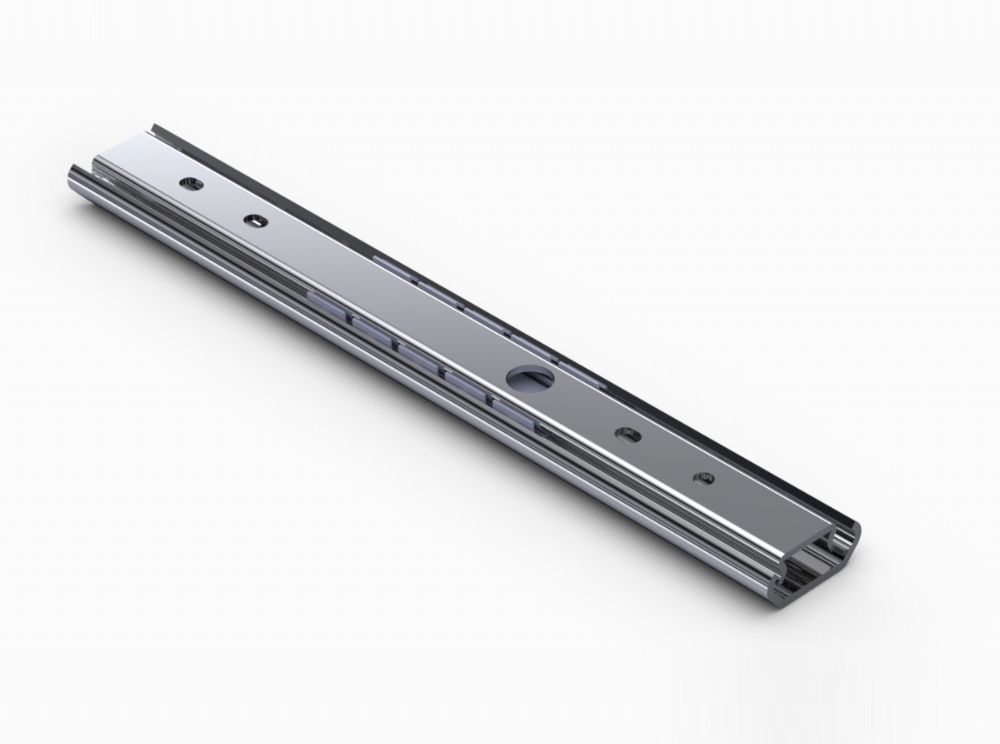

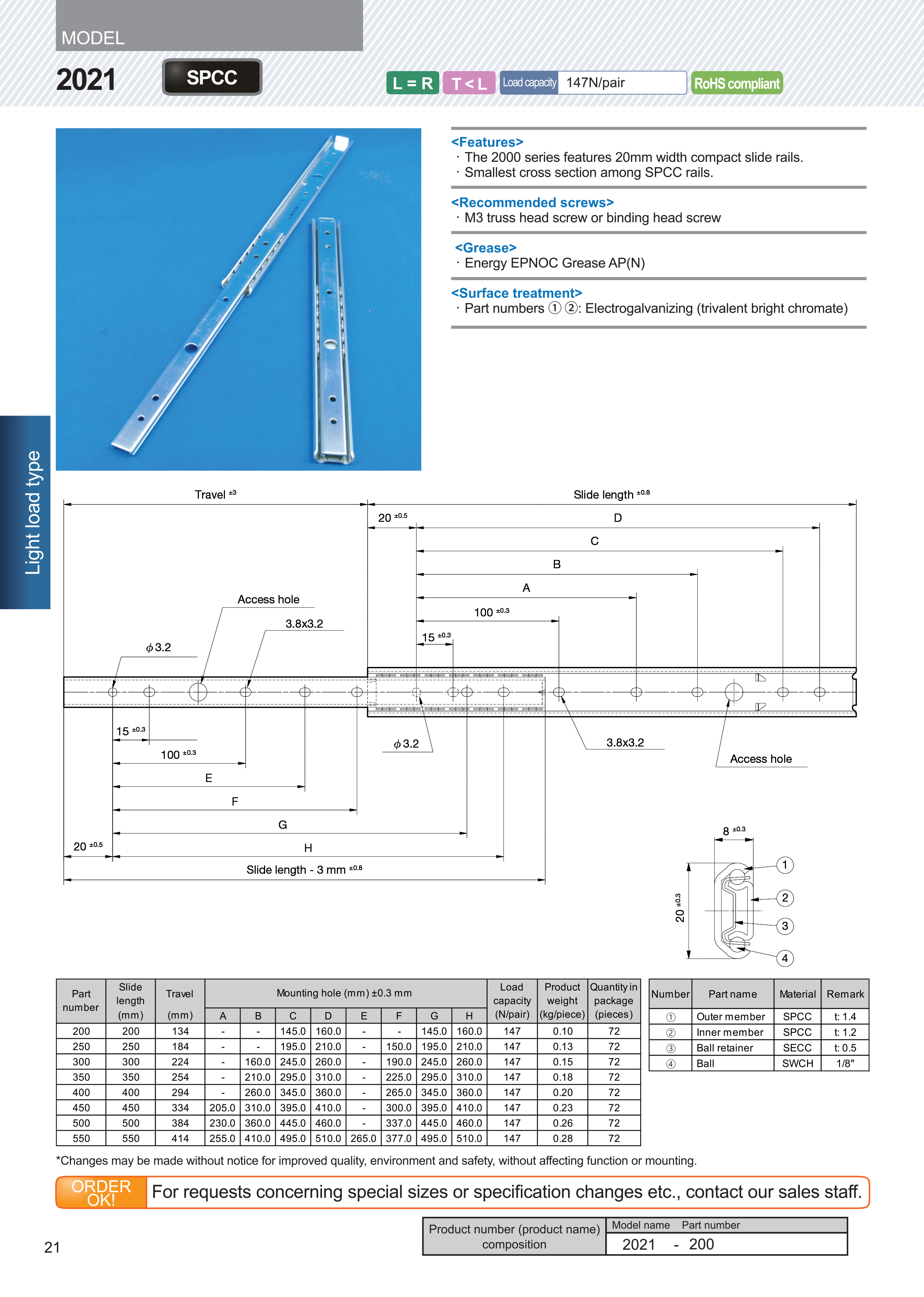

輕負載 3/4行程滾珠滑軌
滑軌長度：200~550mm
滑軌荷重：15kg
SPCC最小寬度，20mm精密滾珠滑軌
- 滑軌長度：200~550mm
- 滑軌荷重：15kg
- SPCC最小寬度，20mm精密滾珠滑軌
| Part number |
Slide length |
Travel | Mounting hole (mm) ±0.3 mm | Load capacity (N/pair) |
Product weight (kg/piece) |
Quantity in package (pieces) |
|||||||

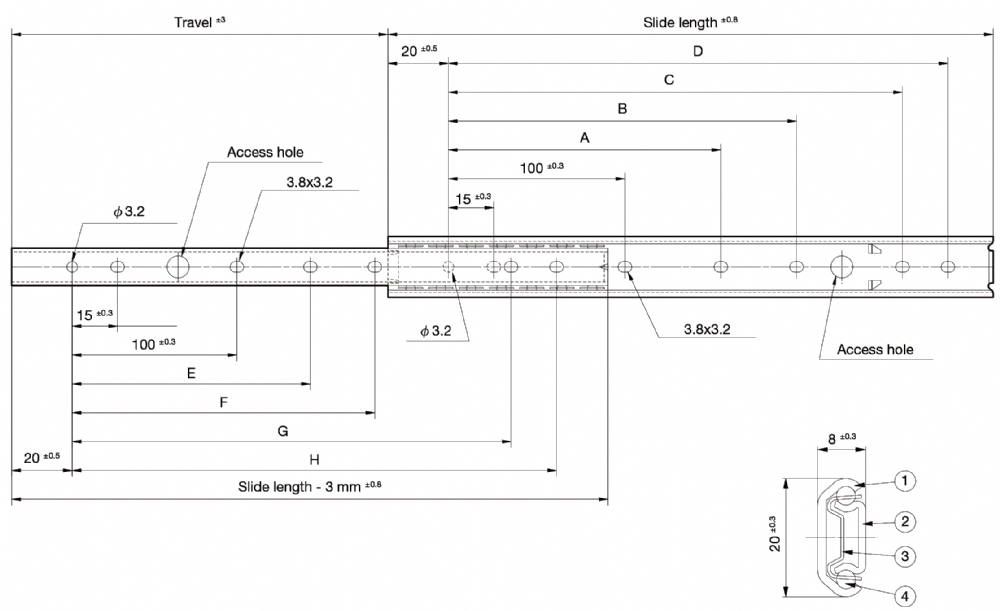

| (mm) | (mm) | A | B | C | D | E | F | G | H | ||||
| 200 | 200 | 134 | - | - | 145.0 | 160.0 | - | - | 145.0 | 160.0 | 147 | 0.10 | 72 |
| 250 | 250 | 184 | - | - | 195.0 | 210.0 | - | 150.0 | 195.0 | 210.0 | 147 | 0.13 | 72 |
| 300 | 300 | 224 | - | 160.0 | 245.0 | 260.0 | - | 190.0 | 245.0 | 260.0 | 147 | 0.15 | 72 |
| 350 | 350 | 254 | - | 210.0 | 295.0 | 310.0 | - | 225.0 | 295.0 | 310.0 | 147 | 0.18 | 72 |
| 400 | 400 | 294 | - | 260.0 | 345.0 | 360.0 | - | 265.0 | 345.0 | 360.0 | 147 | 0.20 | 72 |
| 450 | 450 | 334 | 205.0 | 310.0 | 395.0 | 410.0 | - | 300.0 | 395.0 | 410.0 | 147 | 0.23 | 72 |
| 500 | 500 | 384 | 230.0 | 360.0 | 445.0 | 460.0 | - | 337.0 | 445.0 | 460.0 | 147 | 0.26 | 72 |
| 550 | 550 | 414 | 255.0 | 410.0 | 495.0 | 510.0 | 265.0 | 377.0 | 495.0 | 510.0 | 147 | 0.28 | 72 |
