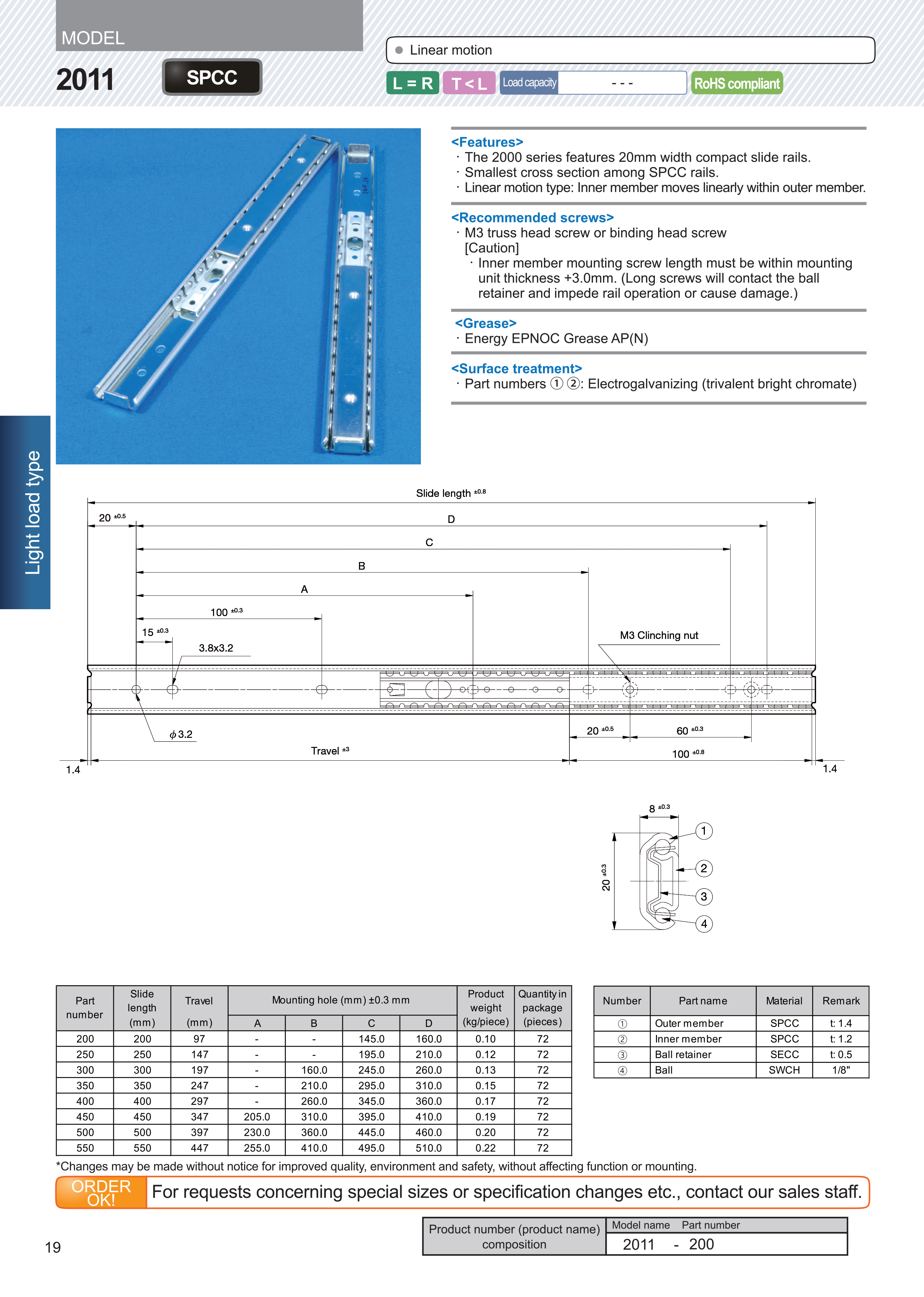

2011

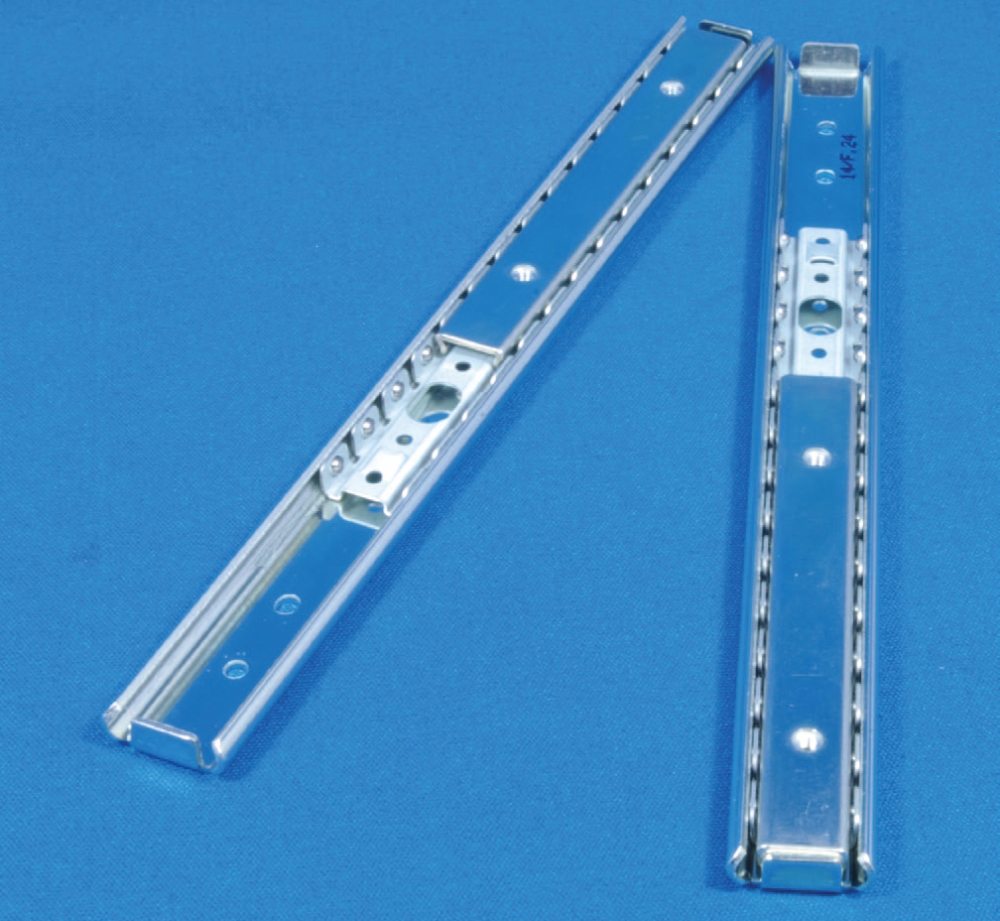

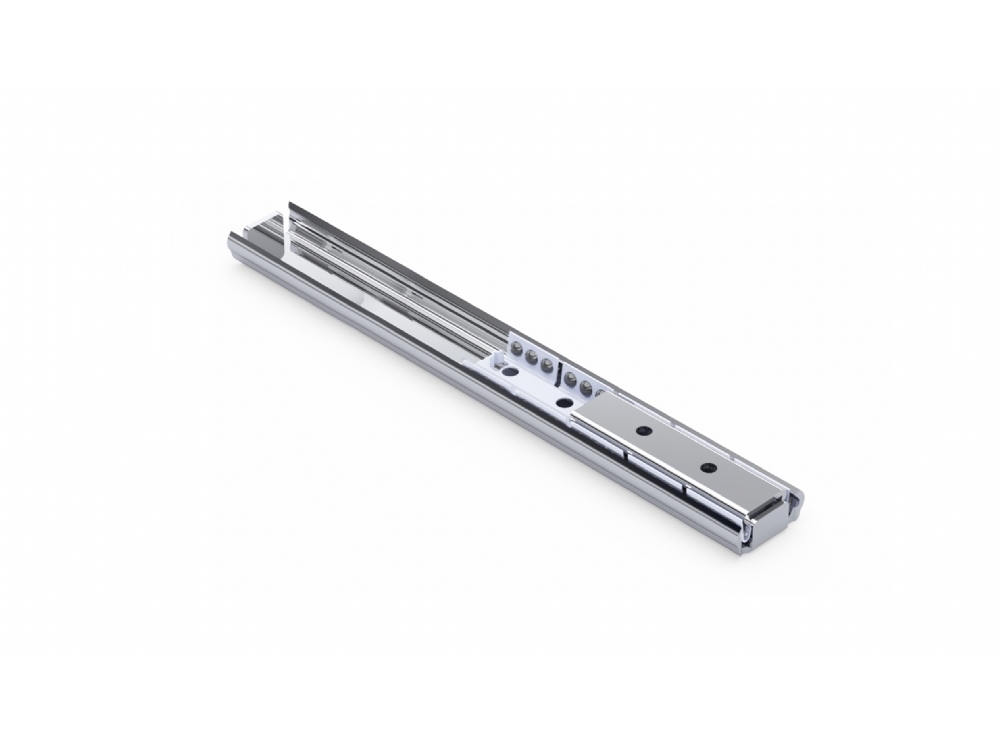

輕負載 直線型滾珠滑軌
滑軌長度：200~550mm
SPCC最小寬度，20mm精密滾珠滑軌，內軌移動式
- 滑軌長度：200~550mm
- SPCC最小寬度，20mm精密滾珠滑軌，內軌移動式
| Part number |
Slide length |

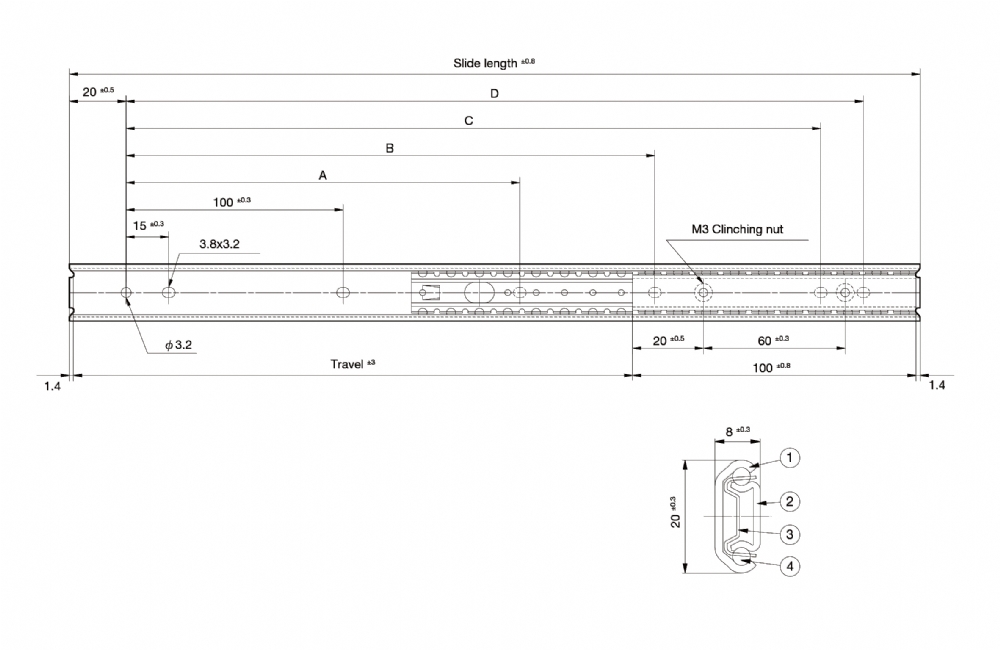

Travel | Mounting hole (mm) ±0.3 mm | Product weight (kg/piece) |
Quantity in package (pieces) |
|||
| (mm) | (mm) | A | B | C | D | |||
| 200 | 200 | 97 | - | - | 145.0 | 160.0 | 0.10 | 72 |
| 250 | 250 | 147 | - | - | 195.0 | 210.0 | 0.12 | 72 |
| 300 | 300 | 197 | - | 160.0 | 245.0 | 260.0 | 0.13 | 72 |
| 350 | 350 | 247 | - | 210.0 | 295.0 | 310.0 | 0.15 | 72 |
| 400 | 400 | 297 | - | 260.0 | 345.0 | 360.0 | 0.17 | 72 |
| 450 | 450 | 347 | 205.0 | 310.0 | 395.0 | 410.0 | 0.19 | 72 |
| 500 | 500 | 397 | 230.0 | 360.0 | 445.0 | 460.0 | 0.20 | 72 |
| 550 | 550 | 447 | 255.0 | 410.0 | 495.0 | 510.0 | 0.22 | 72 |
