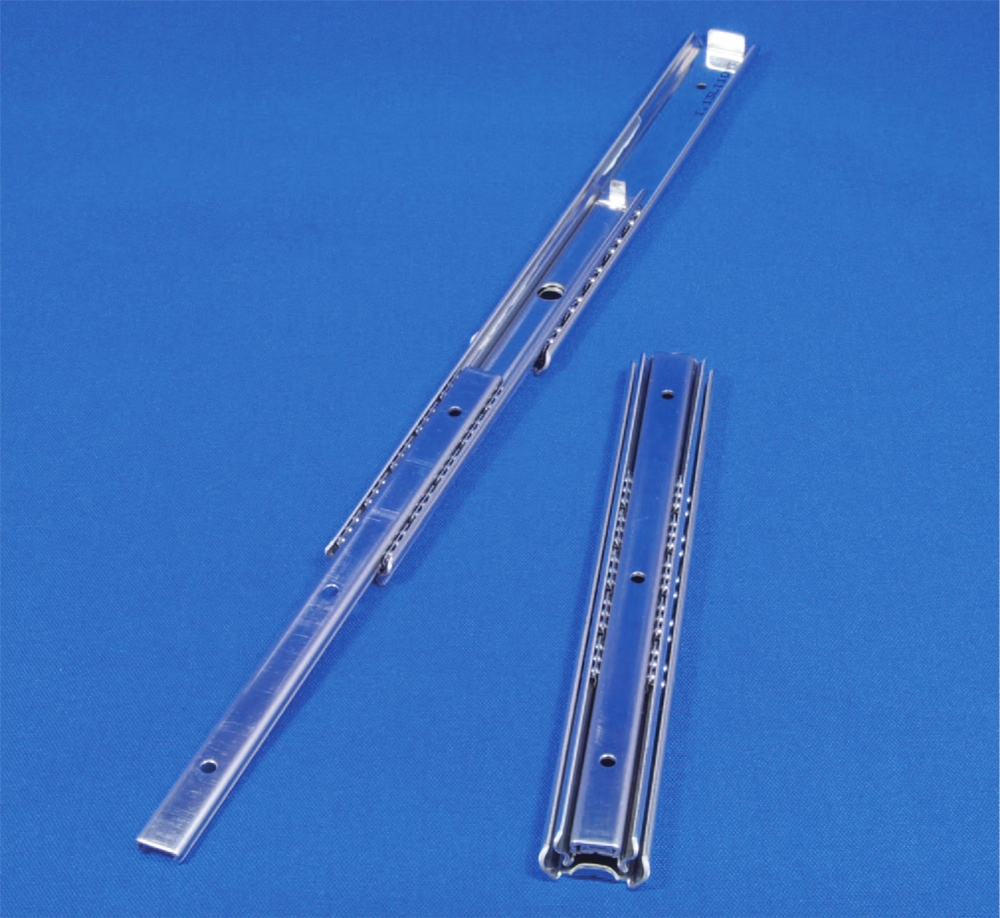

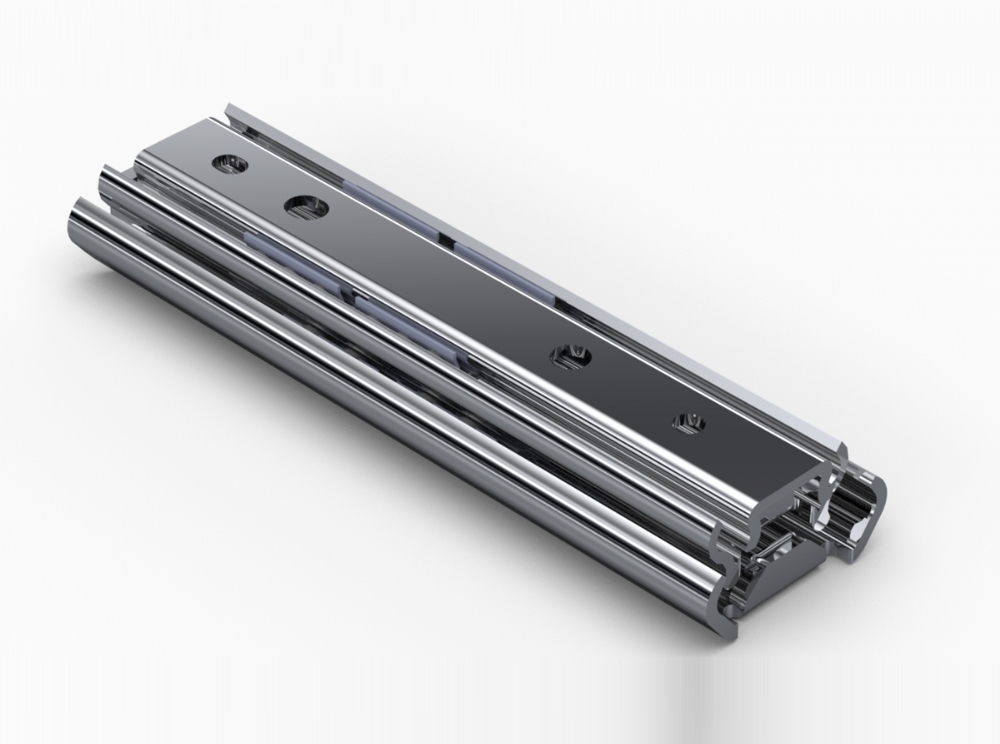

UC200T
SUS 不銹鋼輕負載 薄型完全行程滾珠滑軌
滑軌長度：70~300mm
滑軌荷重：10kg
20mm寬薄型設計，纖薄輕巧，滑軌厚度僅為10.2mm
- 滑軌長度：70~300mm
- 滑軌荷重：10kg
- 20mm寬薄型設計，纖薄輕巧，滑軌厚度僅為10.2mm

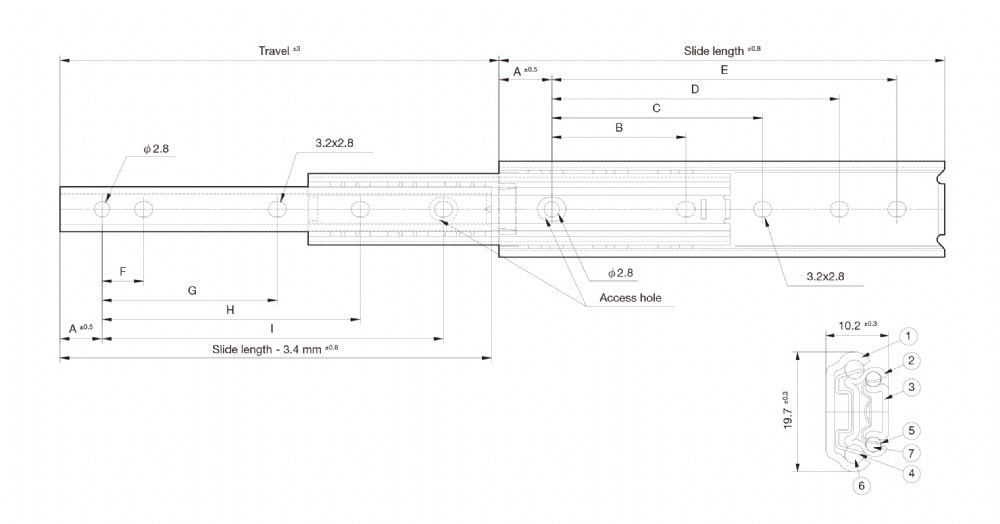

| Part number |
Slide length |
Travel | Mounting hole (mm) ±0.3 mm | Load capacity (N/pair) |
Product weight (g/piece) |
Quantity in package (pieces) |
|||||||||
| (mm) | (mm) | A | B | C | D | E | F | G | H | I | |||||
| 70 | 70.0 | 81.0 | 10.0 | - | - | - | 50.0 | - | - | - | 50.0 | 98 | 40 | 228 | |
| 100 | 100.0 | 116.0 | 10.0 | - | - | 40.0 | 80.0 | - | 40.0 | - | 80.0 | 98 | 60 | 114 | |
| 125 | 125.0 | 140.0 | 20.0 | - | - | 40.0 | 80.0 | - | 40.0 | - | 80.0 | 98 | 75 | 114 | |
| 150 | 150.0 | 165.0 | 20.0 | - | - | 50.0 | 110.0 | - | 50.0 | - | 110.0 | 98 | 90 | 114 | |
| 200 | 200.0 | 214.0 | 20.0 | - | 100.0 | 145.0 | 160.0 | 15.0 | 60.0 | - | 160.0 | 98 | 120 | 57 | |
| 250 | 250.0 | 263.0 | 20.0 | 50.0 | 145.0 | 195.0 | 210.0 | 15.0 | 60.0 | 160.0 | 210.0 | 98 | 150 | 57 | |
| 300 | 300.0 | 312.0 | 20.0 | 100.0 | 160.0 | 245.0 | 260.0 | 15.0 | 100.0 | 160.0 | 260.0 | 98 | 180 | 57 | |
