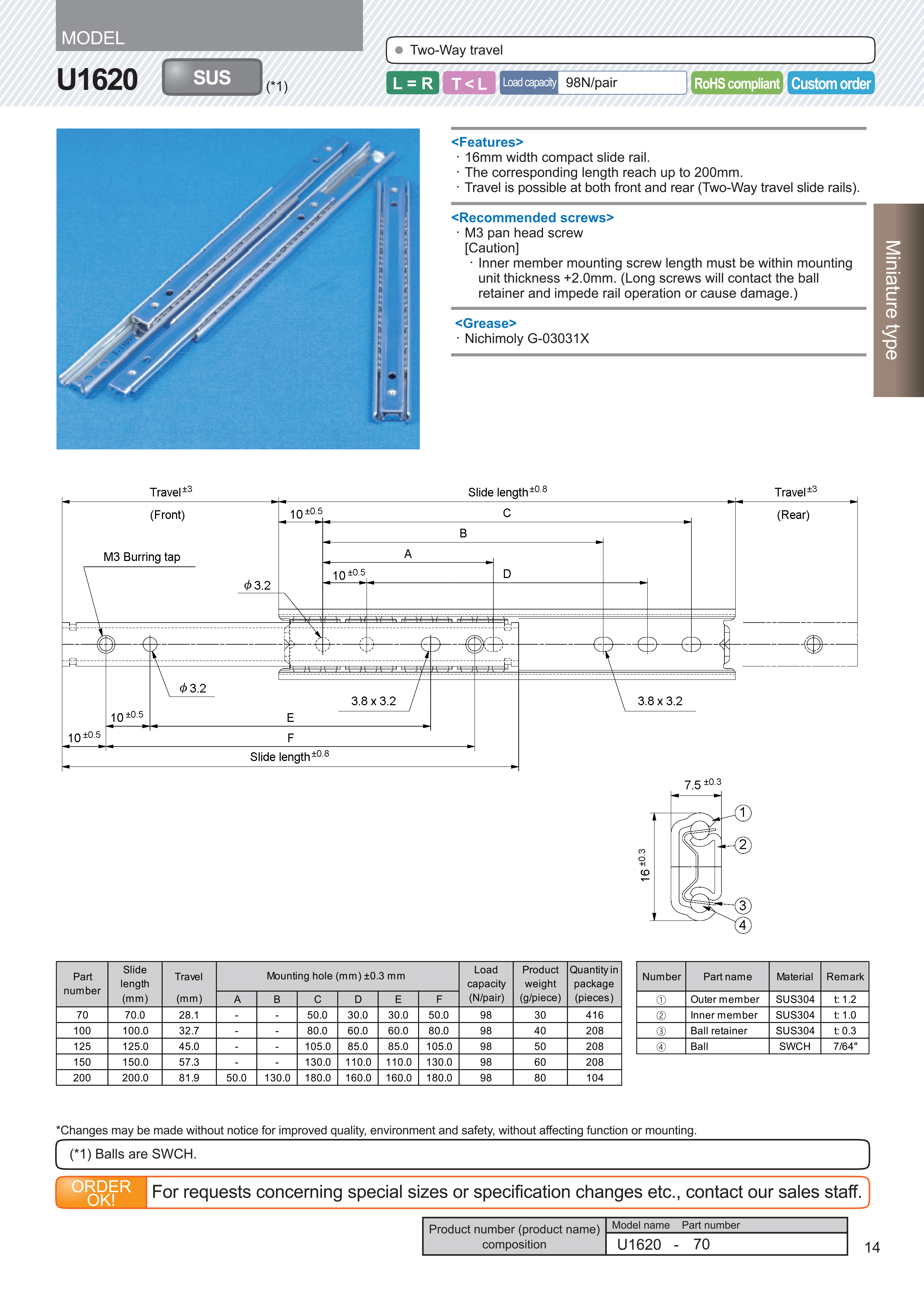

U1620

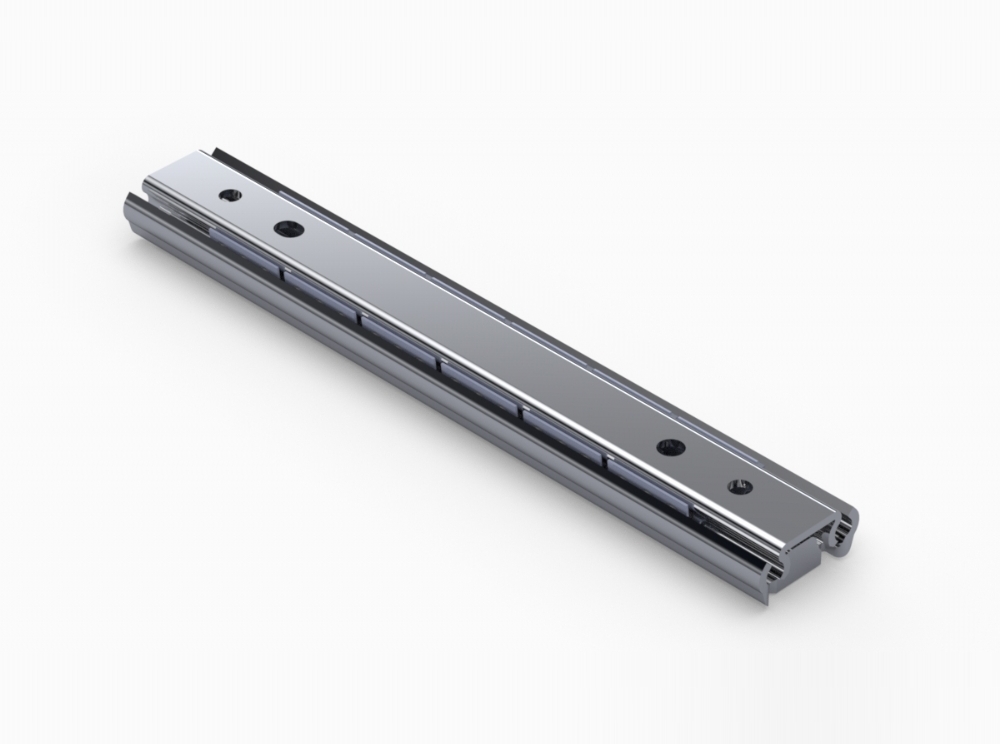

SUS不鏽鋼迷你雙向行程滾珠滑軌
滑軌長度：70~200mm
滑軌荷重：10kg
16mm寬微型精密滾珠滑軌，符合小安裝空間需求
- 滑軌長度：70~200mm
- 滑軌荷重：10kg
- 16mm寬微型精密滾珠滑軌，符合小安裝空間需求

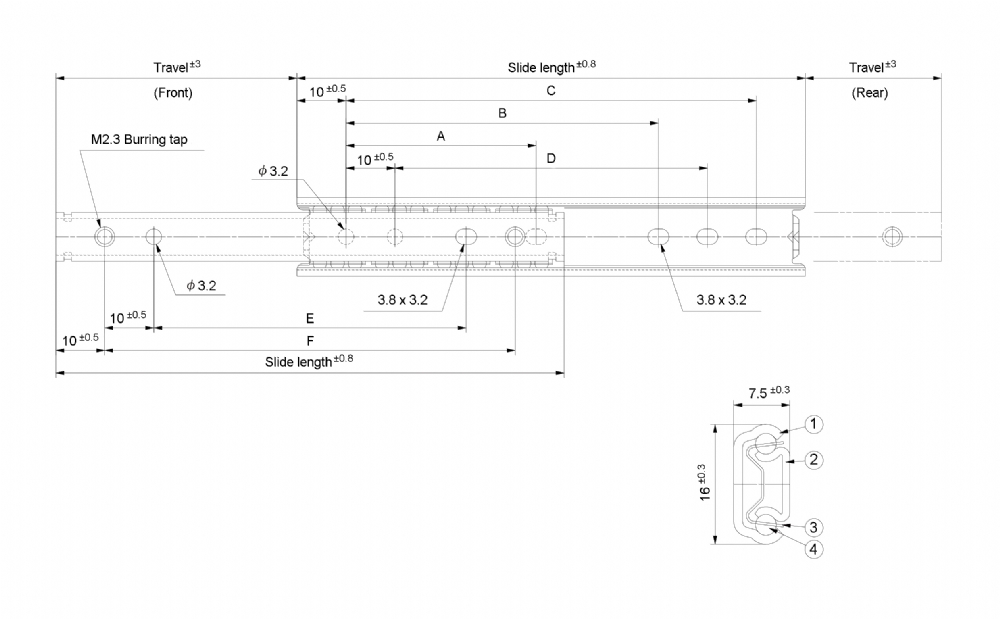

| Part number |
Slide length |
Travel | Mounting hole (mm) ±0.3 mm | Load capacity (N/pair) |
Product weight (g/piece) |
Quantity in package (pieces) |
|||||
| (mm) | (mm) | A | B | C | D | E | F | ||||
| 70 | 70.0 | 15.4 | - | 50.0 | 30.0 | 30.0 | 50.0 | 98 | 30 | 416 | |
| 100 | 100.0 | 20.0 | - | 80.0 | 60.0 | 60.0 | 80.0 | 98 | 40 | 208 | |
| 125 | 125.0 | 32.3 | - | 105.0 | 85.0 | 85.0 | 105.0 | 98 | 50 | 208 | |
| 150 | 150.0 | 44.6 | - | 130.0 | 110.0 | 110.0 | 130.0 | 98 | 60 | 208 | |
| 200 | 200.0 | 69.2 | 50.0 | 130.0 | 180.0 | 160.0 | 160.0 | 180.0 | 98 | 80 | 104 |
