U1611

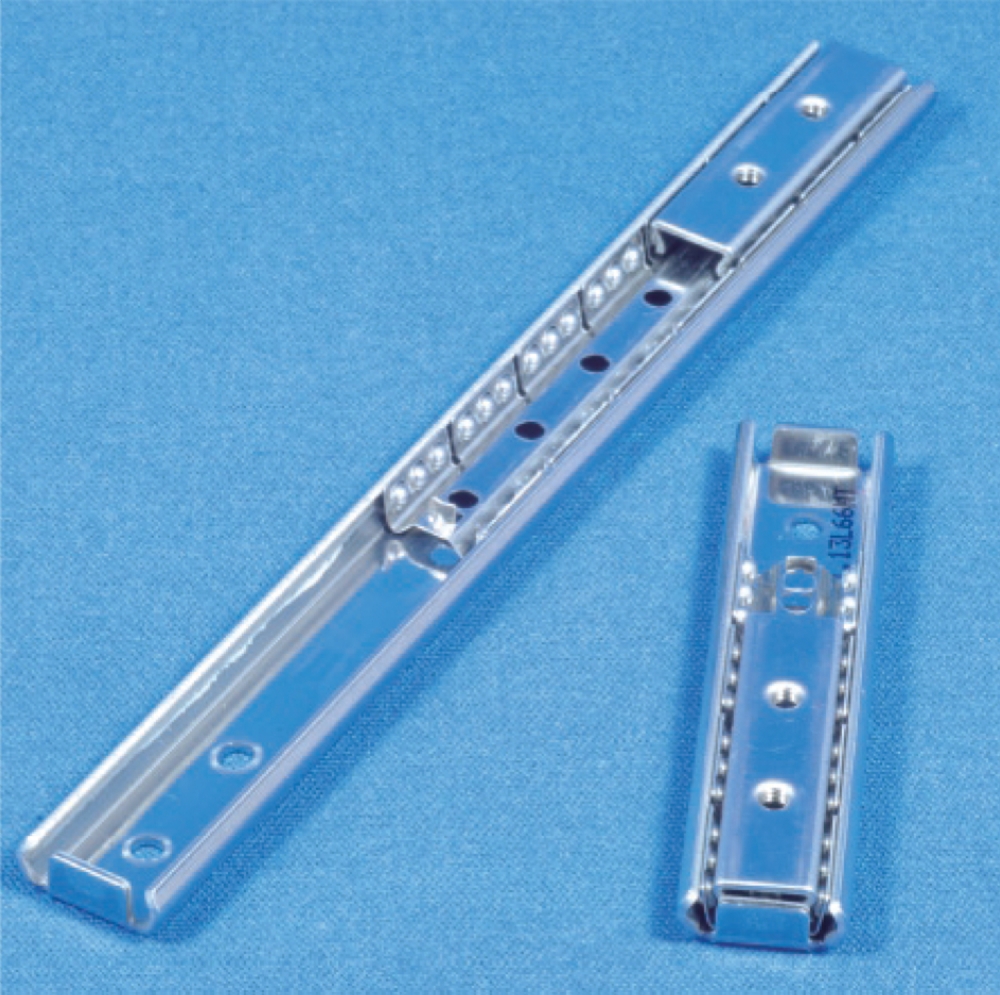

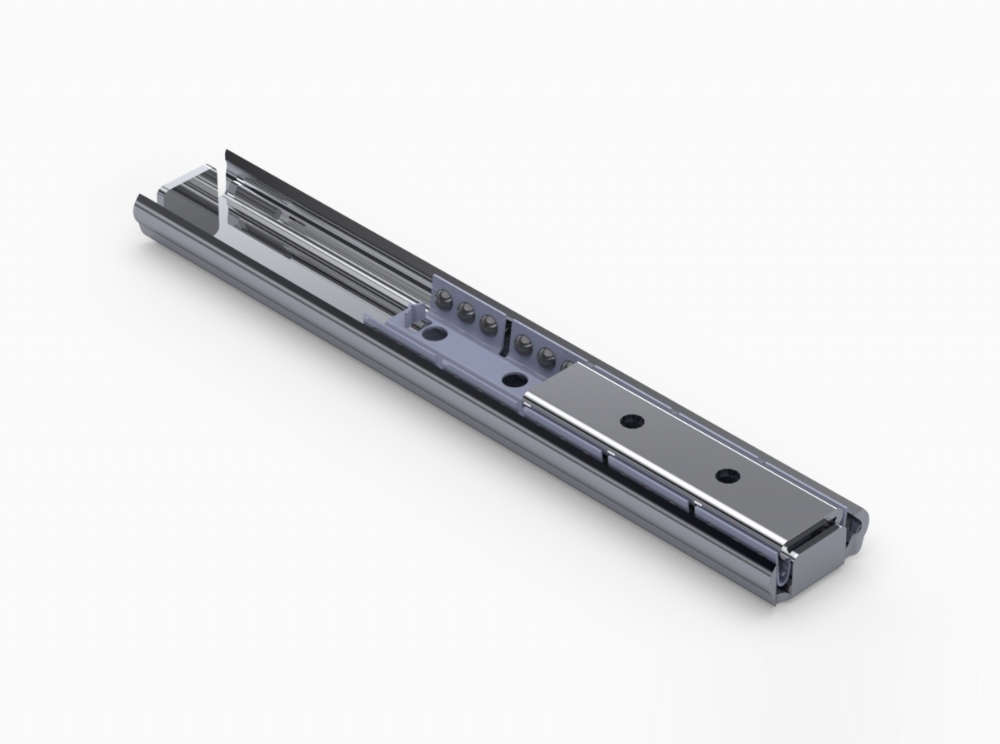

SUS 不銹鋼迷你直線型滾珠滑軌
滑軌長度：70~400mm
16mm寬微型精密滾珠滑軌，符合小安裝空間需求
內軌移動式
- 滑軌長度：70~400mm
- 16mm寬微型精密滾珠滑軌，符合小安裝空間需求
- 內軌移動式

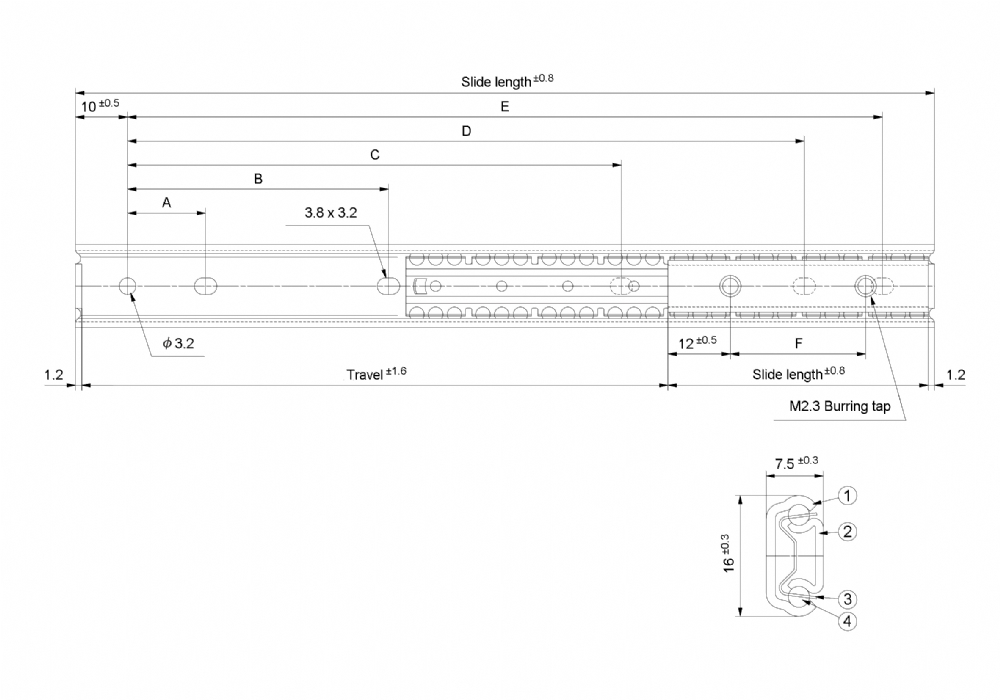

| Part number |
Slide length |
Travel | Mounting hole (mm) ±0.3 mm | Product weight (g/piece) |
Quantity in package (pieces) |
|||||
| (mm) | (mm) | A | B | C | D | E | F | |||
| 70A | 70.0 | 30.0 | - | - | - | - | 50.0 | 14.0 | 25 | 416 |
| 100A | 100.0 | 38.0 | 15.0 | - | - | 65.0 | 80.0 | 14.0 | 30 | 208 |
| 125A | 125.0 | 38.0 | 15.0 | - | - | 90.0 | 105.0 | 14.0 | 40 | 208 |
| 150A | 150.0 | 38.0 | 15.0 | - | - | 115.0 | 130.0 | 14.0 | 45 | 208 |
| 200A | 200.0 | 50.0 | 15.0 | - | - | 165.0 | 180.0 | 26.0 | 60 | 104 |
| 300A | 300.0 | 50.0 | 15.0 | 90.0 | 190.0 | 265.0 | 280.0 | 26.0 | 80 | 104 |
| 400A | 400.0 | 50.0 | 15.0 | 130.0 | 250.0 | 365.0 | 380.0 | 26.0 | 105 | 104 |
