U1621

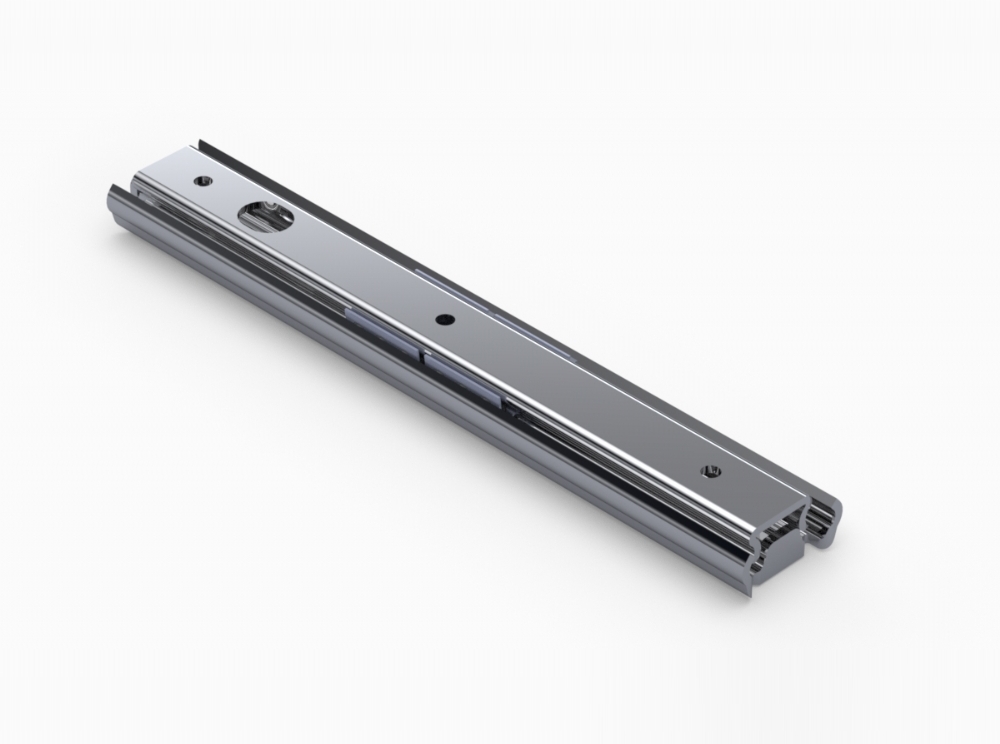

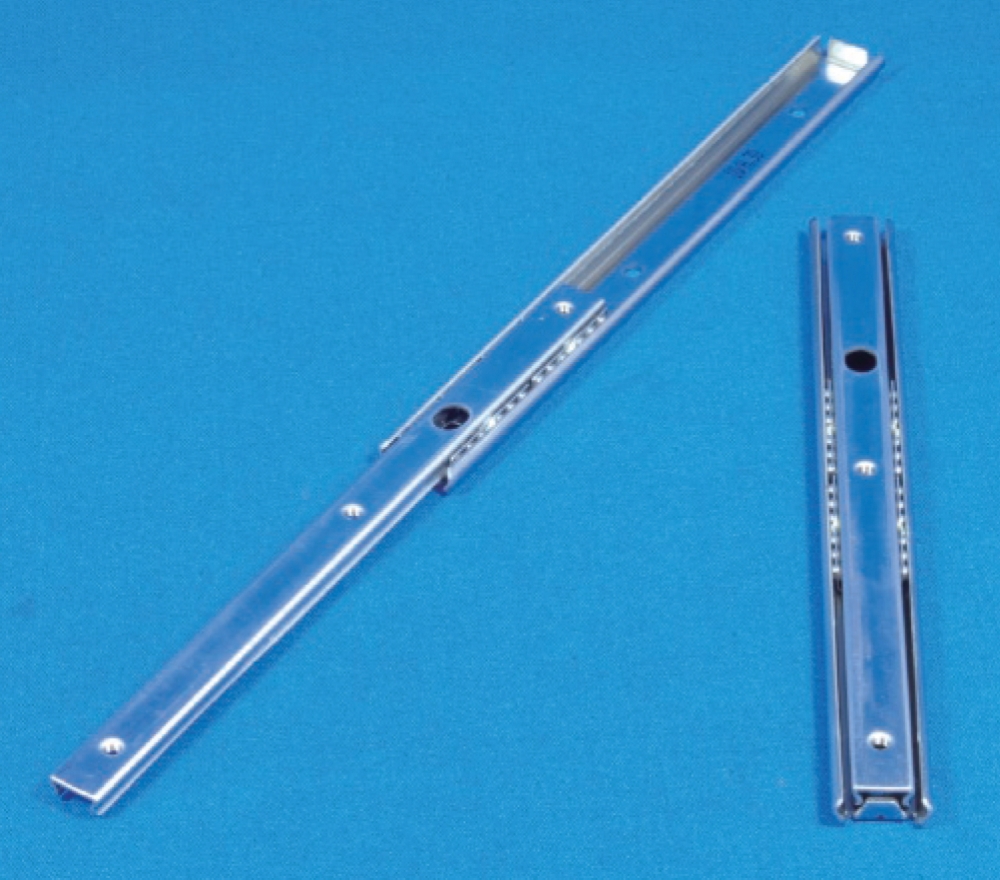

SUS 不銹鋼迷你3/4行程滾珠滑軌
滑軌長度：70~300mm
滑軌荷重：10kg
16mm寬微型精密滾珠滑軌，符合小安裝空間需求
- 滑軌長度：70~300mm
- 滑軌荷重：10kg
- 16mm寬微型精密滾珠滑軌，符合小安裝空間需求
| Part number |
Slide length |

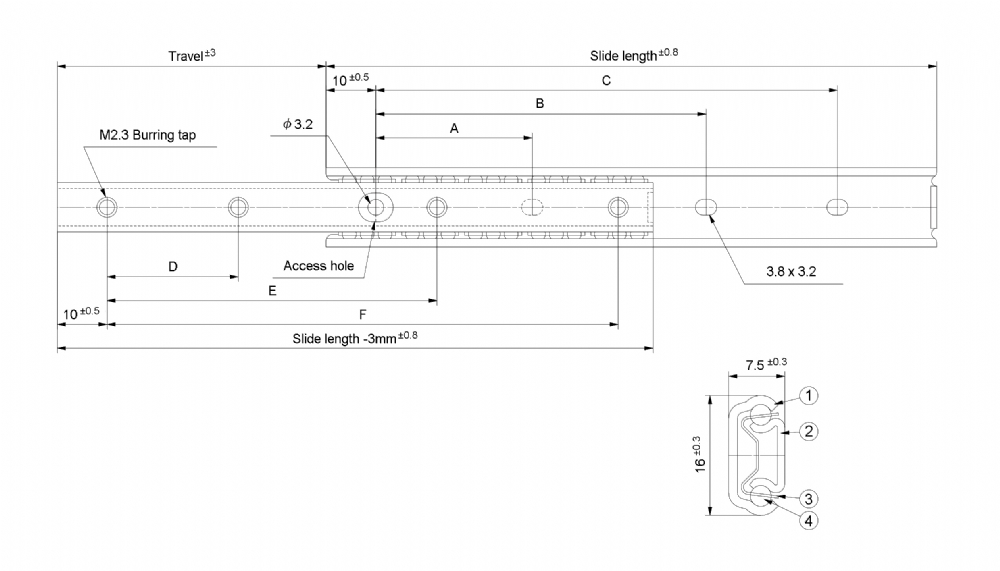

Travel | Mounting hole (mm) ±0.3 mm | Load capacity (N/pair) |
Product weight (g/piece) |
Quantity in package (pieces) |
|||||
| (mm) | (mm) | A | B | C | D | E | F | ||||
| 70 | 70.0 | 39.3 | - | - | 50.0 | - | - | 50.0 | 98 | 25 | 416 |
| 100 | 100.0 | 69.3 | - | 40.0 | 70.0 | 40.0 | - | 80.0 | 98 | 35 | 208 |
| 125 | 125.0 | 81.6 | - | 50.0 | 95.0 | 50.0 | - | 105.0 | 98 | 45 | 208 |
| 150 | 150.0 | 93.9 | - | 60.0 | 120.0 | 65.0 | - | 130.0 | 98 | 55 | 208 |
| 200 | 200.0 | 118.5 | - | 95.0 | 170.0 | 90.0 | - | 180.0 | 98 | 75 | 104 |
| 250 | 250.0 | 143.1 | 80.0 | 150.0 | 220.0 | 80.0 | 160.0 | 230.0 | 98 | 95 | 104 |
| 300 | 300.0 | 167.7 | 95.0 | 180.0 | 270.0 | 90.0 | 180.0 | 280.0 | 98 | 110 | 104 |
