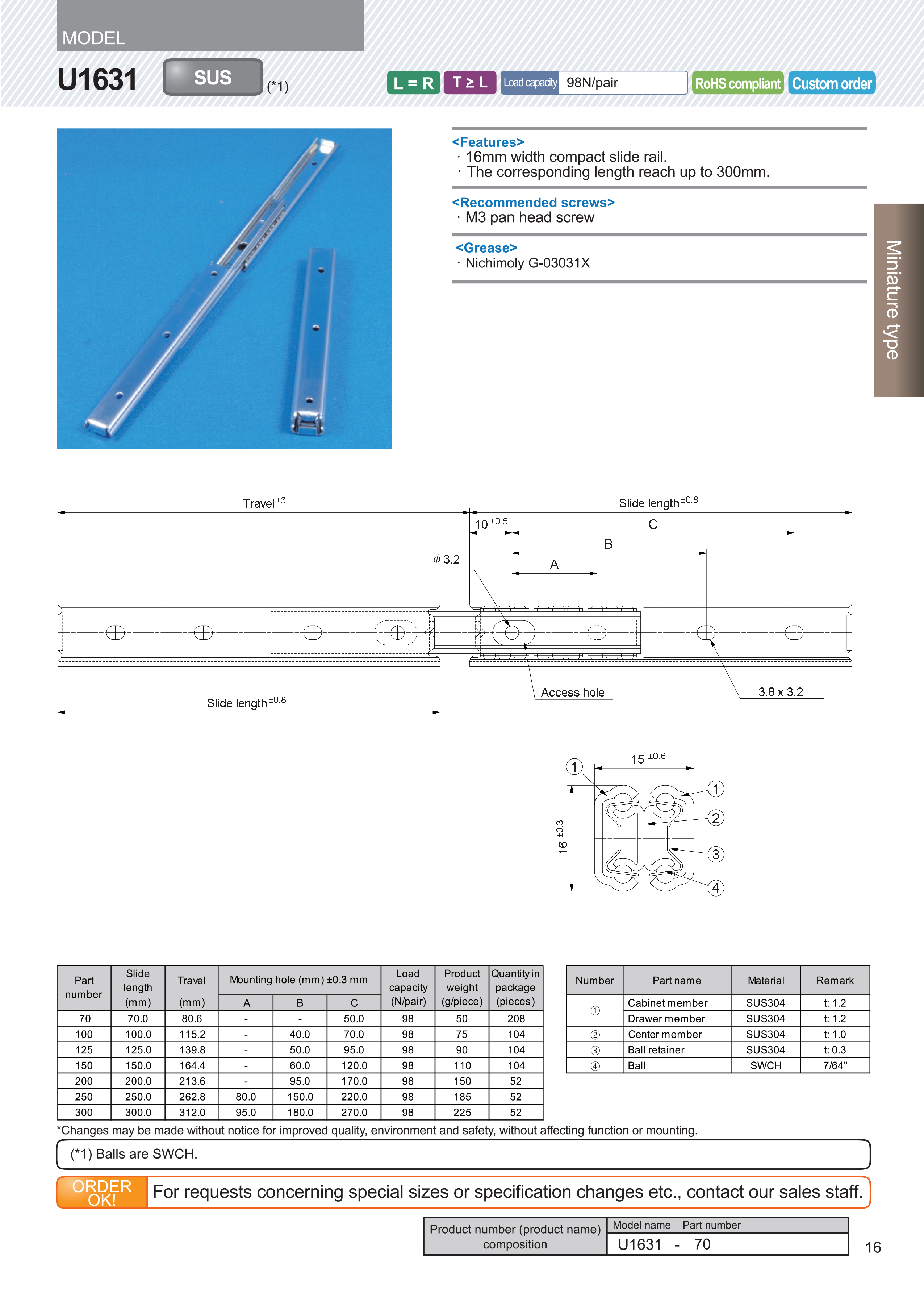

U1631

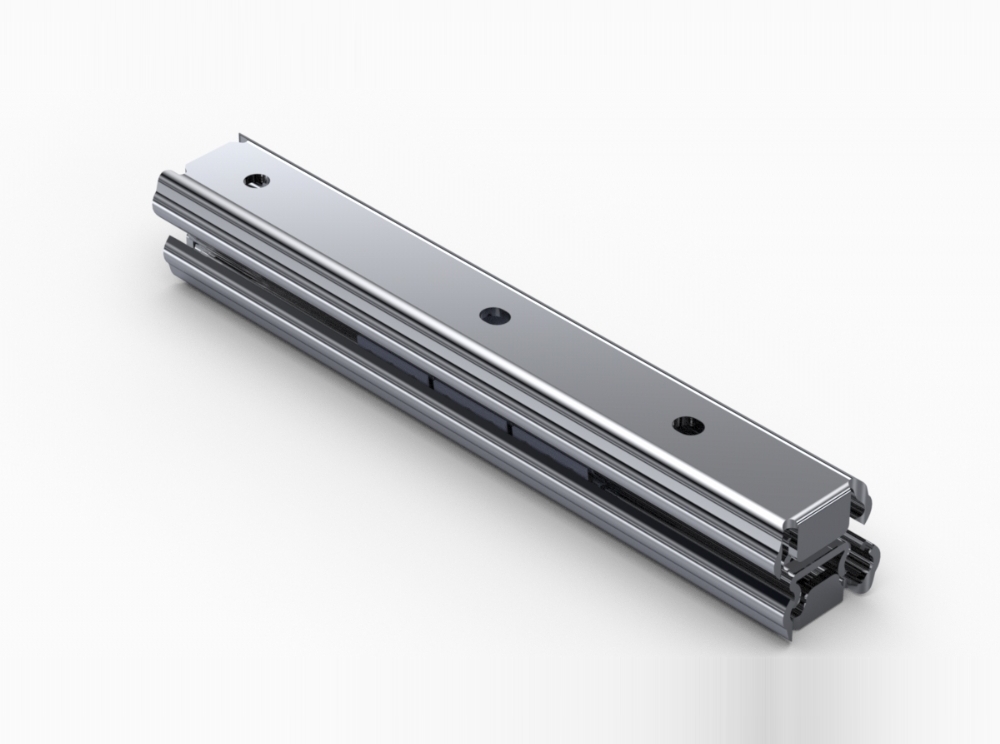

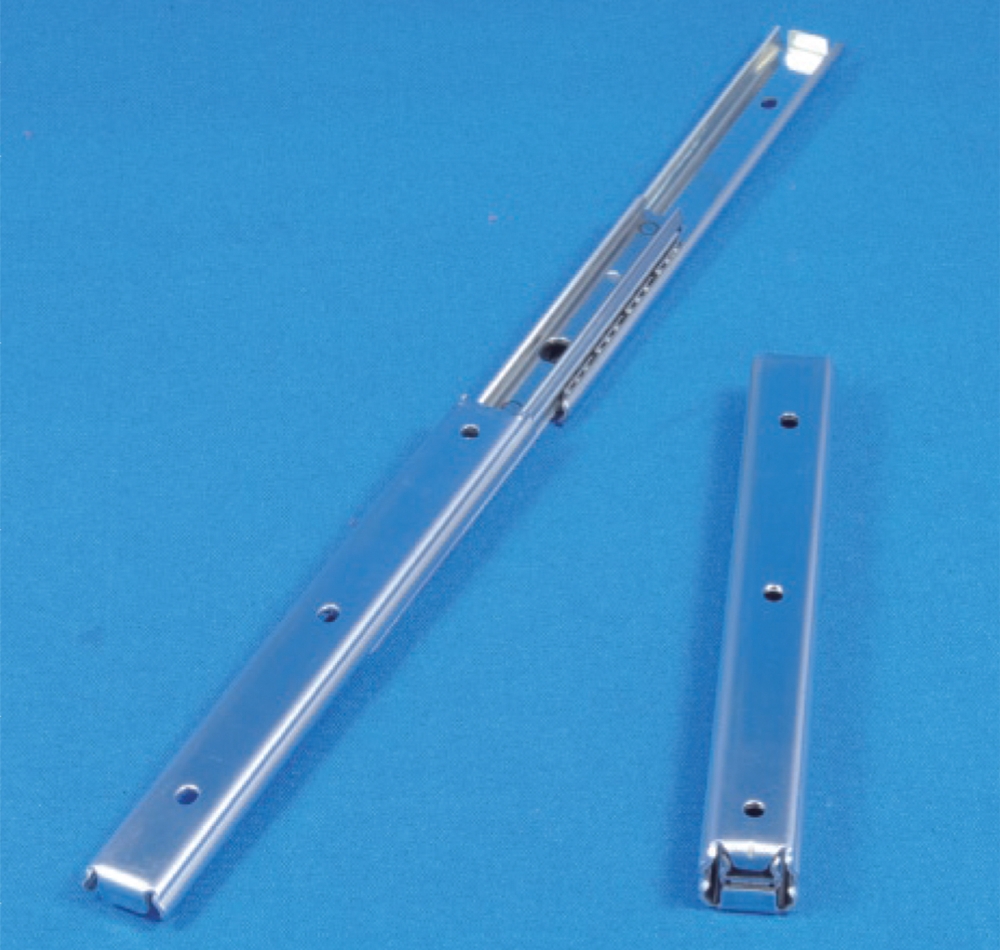

SUS 不銹鋼迷你完全行程滾珠滑軌
滑軌長度：70~300mm
滑軌荷重：10kg
14mm寬微型精密滾珠滑軌，符合小安裝空間需求
- 滑軌長度：70~300mm
- 滑軌荷重：10kg
- 14mm寬微型精密滾珠滑軌，符合小安裝空間需求
| Part number |
Slide length |

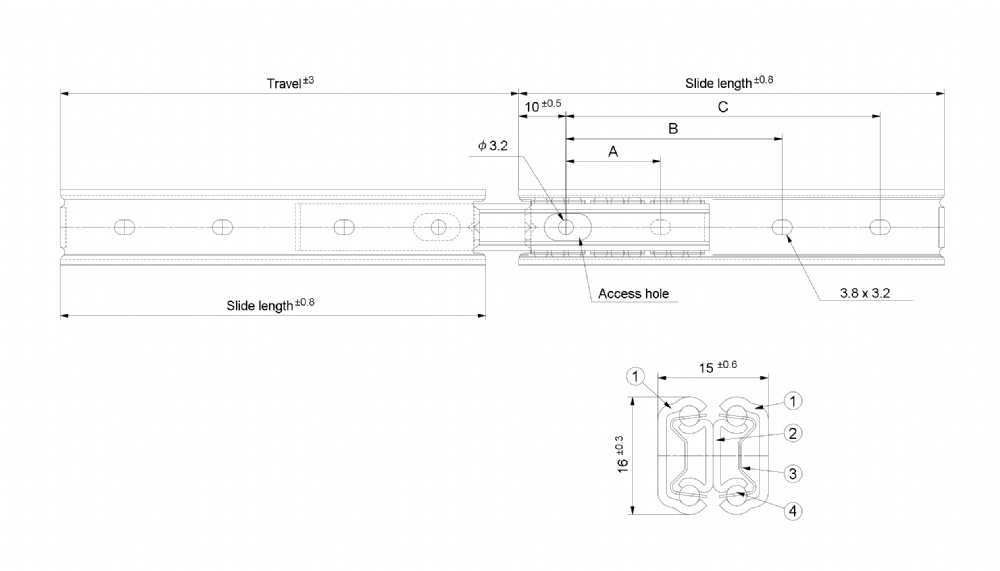

Travel | Mounting hole (mm) ±0.3 mm | Load capacity (N/pair) |
Product weight (g/piece) |
Quantity in package (pieces) |
||
| (mm) | (mm) | A | B | C | ||||
| 70A | 70.0 | 80.6 | - | - | 50.0 | 98 | 50 | 208 |
| 100A | 100.0 | 115.2 | - | 40.0 | 70.0 | 98 | 70 | 104 |
| 125A | 125.0 | 139.8 | - | 50.0 | 95.0 | 98 | 90 | 104 |
| 150A | 150.0 | 164.4 | 60.0 | 120.0 | 98 | 110 | 104 | |
| 200A | 200.0 | 213.6 | - | 95.0 | 170.0 | 98 | 150 | 52 |
| 250A | 250.0 | 262.8 | 80.0 | 150.0 | 220.0 | 98 | 185 | 52 |
| 300A | 300.0 | 312.0 | 95.0 | 180.0 | 270.0 | 98 | 225 | 52 |
